3inch Operated Directly 76mm Water Solenoid Valves , Threaded 2 Way Brass valves

Price Negotiable

Price: Negotiation

MOQ: 5

Delivery Time: 3 working days after payment

Brand: CKD,UNID or others

Product Description

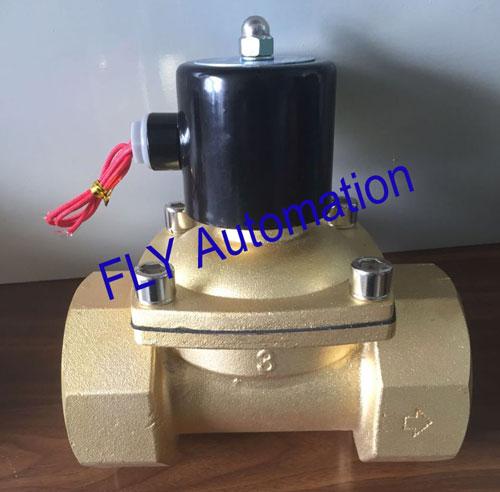

3" Threaded 2 way Water Solenoid Valve

Features:

1. Thread: BSPT, NPT , BSP.

2. The standard product fluid temperature is 80°C(NBR).

3. Temperature:fluororubber(130°C), Silicon(130°C), PTFE(185°C).
4. DIN43650A connector Coil is interchangeable

5. Pilot diaphragm drive, normally closed.

6. Valve body material is brass.

7. Can be operated directly without pressure.

8. Standard voltage : 24VDC,110VAC, 220VAC AC Voltage tolerance: ± 10% ,
DC Voltage tolerance:±1%.

9. Other special AC/DC can be made to client's order.

10.Materials:

PARTS	MATERIAL
Body	Cast Bronze/ Forge Brass/Zinc Alloy
Coil	Special Copper Wire (H)
Core	Stainless Steel
Tube	Stainless Steel
Spring	Stainless Steel
Plug	NBR.fluororubber .Silicon, PTFE
Diaphragm	NBR.fluororubber .Silicon

11.Drawing:

12.Specification and Dimensions:

MODEL	PIPE SIZE	Cv	ORIFICE(mm)	FLUID TEMPERATURE	OPERATING PRESSURE RANGE(Bar)			DIMENSION(mm)			WEIGHT
					WATER	AIR	LIGHT OIL	L	H	D	KG
2W160-10	3/8"	2.4	16mm	-5 - 80 ℃	0-5	0-7	0-5	70	100	50	0.9
2W160-15	1/2"	4.5	16mm	-5 - 80 ℃	0-5	0-7	0-5	70	100	50	0.9
2W200-20	3/4"	8.6	20mm	-5 - 80 ℃	0-5	0-7	0-5	73	102	50	1.0
2W250-25	1"	12	25mm	-5 - 80 ℃	0-5	0-7	0-5	93	106	50	1.8
2W350-35	1 1/4"	24	35mm	-5 - 80 ℃	0-5	0-7	0-5	125	140	58	3.5
2W400-40	1 1/2"	28	40mm	-5 - 80 ℃	0-5	0-7	0-5	125	140	58	3.3
2W500-50	2"	48	50mm	-5 - 80 ℃	0-5	0-7	0-5	167	170	58	5.4
