High Pressure Hydraulic Solenoid Coil AC220V AC110V Heat resistant
High Pressure Hydraulic Solenoid Coil AC220V AC110V Heat resistant

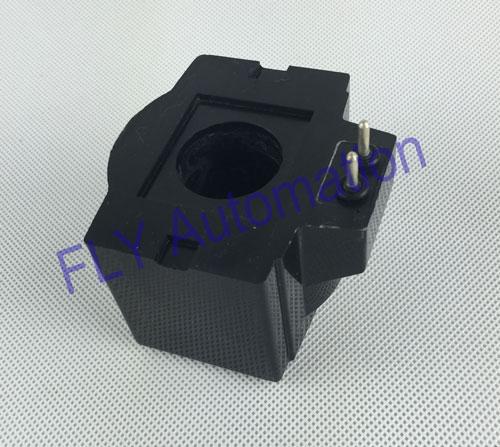

The YUKEN 2 PIN Hydraulic Solenoid valve coil NJT404 suitable for high pressure hydraulic applications . It can be supplied with different power consumptions according to specific requirements.
The NJT404 coil system includes a wide range of electrical coils suitable for cartridge valves for mobile hydraulics .
The specific voltage could be costomized.
Specifications:
• Built-in magnetic yoke made by low carbon iron
• Encapsulation with high quality specially designed glass filled nylon ( thermoset material on demand for 30 mm coil ).
• Encapsulation with high quality specially designed glass filled nylon ( thermoset material on demand for 30 mm coil ).
• Heat resistant bobbin moulded with 30% glass filled thermoplastic polyester material
The use of other materials is possible upon special agreements . All coils are rated to class F and to IP 65 ( with connector ).
The coil is designed and constructed in accordance to EN 60204.1 and VDE 0580 and it is suitable for industrial ambient conditions . For use in special ambients with high humidity , we suggest the sealed or thermoset version.
Note:
| Voltage tolerance: | ± 10% |
| Temperature range: | –10°C ÷ +50°C |
| Duty cycle: | 100% |
