AIRTAC Push pull Valve 3L series 1/8 1/4 3/8 3/2 Way Pneumatic Manual Hand valve
Product Feature:
1.Manual control valve, same direction with the spool. Easy control, precise and reliability.
2.Spool type design, excellent sealing performance, compact size, lighter weight, easy repairing
3.Special surface finishing in inner surface. Low friction, low pressure starting, durable
4.Lubrication is not necessary
5.Multi mounting position, easy to fix.
Specification:
| Model | 3L110-06 | 3L210-06 | 3L210-08 | 3L310-08 | 3L310-10 |
| Fluid | Air(to be filtered by 40μm filter element) | ||||
| Port size | 1/8" | 1/4" | 3/8" | ||
| Orifice size | 12.0mm² (Cv=0.67) |
14.0mm² (Cv=0.78) |
16.0mm² (Cv=0.89) |
25.0mm² (Cv=1.39) |
30.0mm² (Cv=1.67) |
| Valve type | 5/2 Way | ||||
| Lubrication | Not required | ||||
| Pressure range | 0~0.8Mpa(0~116psi) | ||||
| Temperature | -20~ 70℃ | ||||
| Material body | Aluminum alloy | ||||
Installation:
1. Before installing, be sure the valve hasn't been damaged via transportation.
2. It's suggested to use the medium lubricated by 40μm filter element. Be aware of the flow direction and port size.
3. Please notice whether the installation condition accords with technical requirements (such as “working pressure” and “scope of application temperature”), then the equipment can be installed and used.
4. Take measure to avoid vibration and frozen.
5. Before using the fittings and tubes make sure they are clean. When connecting to fittings, be sure the PTFE Thread seal tape is used correctly.
6. To keep the dust away, Never forget to install dirt-proof boot in air intake and outlet during dismounting.

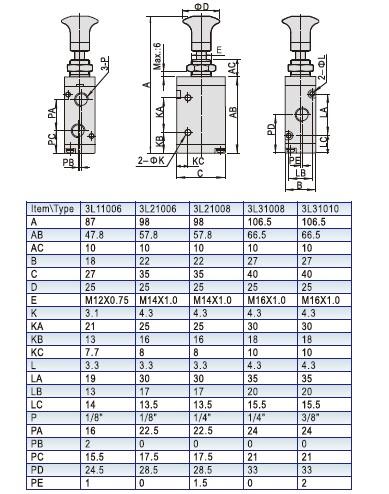

Drawing:
