Taiwan Mindman 1/4" Port size Pneumatic Solenoid Valves MVSC-260-4E1 MVSC-260-4E2
MVSC-260-4E1 MVSC-260-4E2 Taiwan Mindman 1/4" Port size Solenoid valve

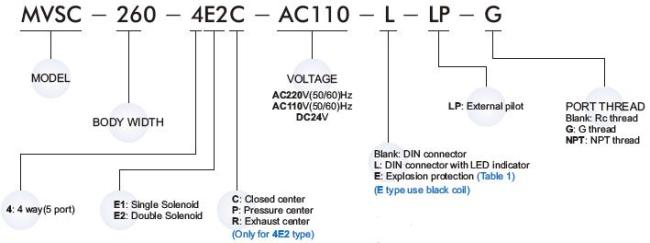

Order Coder
Specification
| Model | 4E1 | 4E2 | 4E2C.P.R |
| Bore No. | 8A | ||
| Port size | Rc1/4 | ||
| No. of port | 5 | ||
| No. of position | 2 | 3 | |
| Medium | Air | ||
| Operating pressure range | 0.2~0.8 Mpa | 0.3~0.8 Mpa | |
| Operating pressure (LP) | 0~0.8 Mpa | ||
| External pilot pressure (LP) | 0.2~0.8 Mpa | 0.3~0.8 Mpa | |
| Proof pressure | 1 Mpa | ||
| Effective orifice | 18 mm2 | 16 mm2 | |
| Response time | 40 ms | ||
| Ambient temperature | -5~+50 ℃ | ||
| Voltage | AC110V, 220V (50/60) Hz, 24VDC | ||
| Power consumption | AC=4.8.4,4VA, 6/4.9VA, DC=2W | ||
| Available voltage range | ± 10% | ||
| Insulation class | F class | ||
| Weight | 228 g | 314 g | 444 g |
CONSTRUCTION
Body: Aluminium
Bonnet: Aluminium
Quick Mount clamps: Steel
Bolts: Steel
Core tube Stainless: steel
Core and plugnut: Stainless steel
Core spring: Stainless steel
Sealings & disc: NBR (nitrile)
Shading coil: Copper
Coil insulation: class F
Connector: Spade plug (cable ? 6 - 8 mm), 3 x DIN 46244
Electrical safety: IEC 335

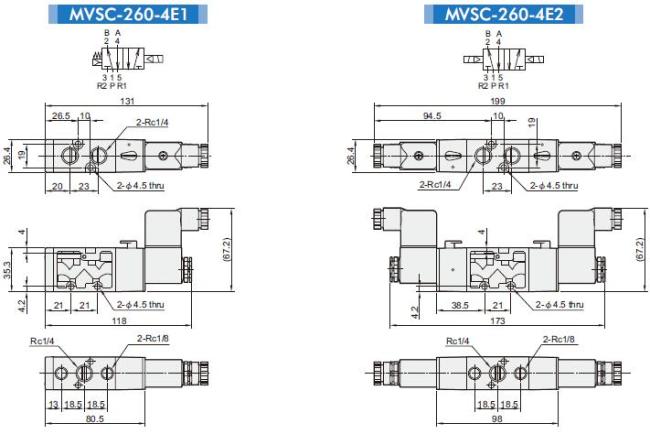

Dimension

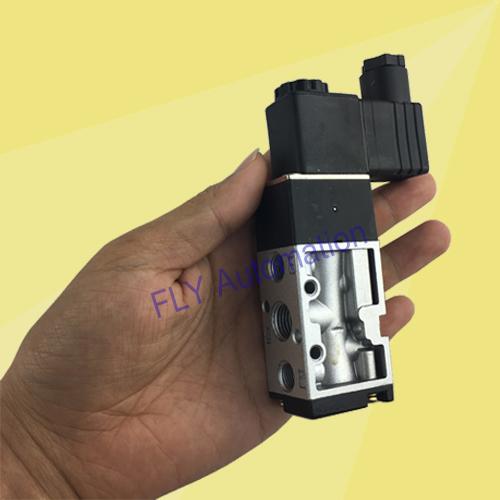

Product show
