6600 Series ISO 7241 Series A 1/4 3/8 1/2 3/4 Pneumatic Tube Fittings Manual sleeve poppet valve
Parker 6600 Series ISO 7241 Series A 1/4 3/8 1/2 3/4 Manual sleeve poppet valve Hydraulic Quick Couplings
The 6600 Series are versatile for use in a wide range of hydraulic applications where fluid lines require connection and disconnection for equipment operation or maintenance
Features:
1. Accepts ISO 7241-1, Series A compliant nipples
2. Poppet valves and a metal perch to maintain valve alignment and prevent flow checking
3. Coupler sleeve and nipple body are hardened to be damage resistant
4. Standard end configurations include female pipe and straight thread ORB
5. Protective zinc plating with clear trivalent chromate finish
Specifications:
| 6600 Series Specifications: | ||||||
| Body Size | Rated Flow (gpm) | Rated Pressure (psi) | Temperature | Body Material | Sleeve Type | Seal Material |
| 1/4 | 0.8 | 5000 | -40℉ to +250℉ | Steel | Manual Connect | Nitrile |
| 3/8 | 6 | 4000 | ||||
| 1/2 | 12 | 4000 | ||||
| 3/4 | 28 | 4000 | ||||
| 1 | 50 | 4000 | ||||
6600 Series Couplers
| Body size | Coupler Part Number | Port End | Valve Type | Length | Largest Diameter | Wrench Flats | Weight (lbs.) |
| 1/4 | 6601-2-4 | 1/8-27 NPTF | Poppet | 1.85 | 1.08 | 0.88 | 0.27 |
| 1/4 | 6601-4-4 | 1/4-18 NPTF | Poppet | 1.85 | 1.08 | 0.88 | 0.26 |
| 3/8 | 6601-6-6 | 3/8-18 NPTF | Poppet | 2.18 | 1.27 | 1.06 | 0.39 |
| 3/8 | 6608-6-6 | 9/16-18 ORB | Poppet | 2.18 | 1.27 | 1.06 | 0.38 |
| 1/2 | 6601-8-10 | 1/2-14 NPTF | Poppet | 2.75 | 1.52 | 1.25 | 0.67 |
| 1/2 | 6601-12-10 | 3/4-14 NPTF | Poppet | 2.88 | 1.52 | 1.38 | 0.71 |
| 1/2 | 6608-8-10 | 3/4-16 ORB | Poppet | 2.74 | 1.52 | 1.25 | 0.67 |
| 1/2 | 6608-10-10 | 7/8 -14 ORB | Poppet | 2.79 | 1.52 | 1.25 | 0.64 |
| 1/2 | 6608-12-10 | 1 1/16-12 ORB | Poppet | 3.01 | 1.52 | 1.38 | 0.77 |
| 3/4 | 6601-12-12 | 3/4 -14 NPTF | Poppet | 3.36 | 1.9 | 1.62 | 1.31 |
| 3/4 | 6608-12-12 | 1 1/16-12 ORB | Poppet | 3.35 | 1.9 | 1.62 | 1.31 |
| 1 | 6601-16-16 | 1-11 1/2 NPTF | Poppet | 4.11 | 2.14 | 1.88 | 1.93 |
| 1 | 6608-16-16 | 1 5/16-12 ORB | Poppet | 4.11 | 2.14 | 1.88 | 1.75 |
6600 Series Nipples
| Body size | Nipple Part Number | Port End | Valve Type | Length | Exposed Length | Largest Diameter | Wrench Flats | Weight (lbs.) |
| 1/4 | 6602-2-4 | 1/8-27 NPTF | Poppet | 1.41 | 0.50 | 0.65 | 0.56 | 0.05 |
| 1/4 | 6602-4-4 | 1/4-18 NPTF | Poppet | 1.41 | 0.58 | 0.87 | 0.75 | 0.07 |
| 3/8 | 6602-6-6 | 3/8-18 NPTF | Poppet | 1.63 | 0.72 | 1.01 | 0.88 | 0.11 |
| 3/8 | 6610-6-6 | 9/16-18 ORB | Poppet | 1.63 | 0.72 | 1.01 | 0.88 | 0.13 |
| 1/2 | 6602-8-10 | 1/2-14 NPTF | Poppet | 2.08 | 0.78 | 1.23 | 1.06 | 0.21 |
| 1/2 | 6602-12-10 | 3/4-14 NPTF | Poppet | 2.30 | 0.78 | 1.59 | 1.38 | 0.33 |
| 1/2 | 6610-8-10 | 3/4-16 ORB | Poppet | 2.08 | 0.76 | 1.23 | 1.06 | 0.22 |
| 1/2 | 6610-10-10 | 7/8 -14 ORB | Poppet | 2.08 | 0.82 | 1.3 | 1.12 | 0.21 |
| 1/2 | 6610-12-10 | 1 1/16-12 ORB | Poppet | 2.30 | 1.04 | 1.59 | 1.38 | 0.33 |
| 3/4 | 6602-12-12 | 3/4 -14 NPTF | Poppet | 2.55 | 1.18 | 1.59 | 1.38 | 0.49 |
| 3/4 | 6610-12-12 | 1 1/16-12 ORB | Poppet | 2.55 | 1.18 | 1.59 | 1.38 | 0.47 |
| 1 | 6602-16-16 | 1-11 1/2 NPTF | Poppet | 3.10 | 1.34 | 1.88 | 1.62 | 0.75 |
| 1 | 6610-16-16 | 1-5/16-12 ORB | Poppet | 3.10 | 1.34 | 2.17 | 1.62 | 0.72 |

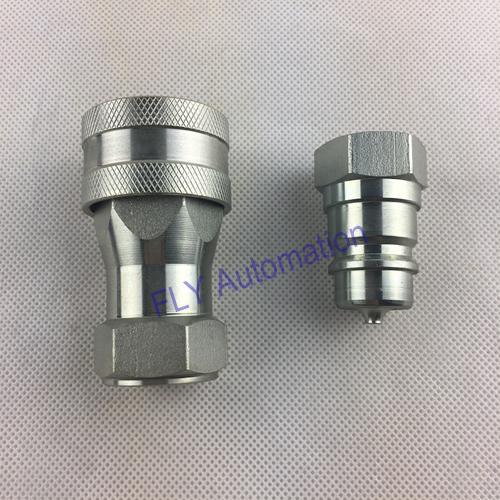

Product show:
1. Snow plows
2. Truck trailer connections
3. Mobile applications
4. Attachments
Delivery
1. If the products we have in store, we will send it out ASAP after payment.
2. If the products which were customized, we will complete the production within a specified period of time, and send it out the first time, we can promise it.
3. Also we can send by your delivery acount if you want.
4. We have a variety of ways to send goods, usually DHL, Fedex, TNL will be normal ways. If you require use of a courier, we can do it.
Competitive Advantage
| Our product features | Our Services Guarantee: |
| 1) Competitive price | 1) Prompt respond (Reply with 24 hours) |
| 2) Good quality | 2) Free Samples (Customer pay for the delivery cost) |
| 3) Professional Packaging | 3) Registration support. |
| 4) Produce according to Customers’ instruction | 4) Photos/videos are available during production. |
| 5) None delay shipment | 5) Loading inspection, and send loading photos before shipment. |
After-sale Service
We can provide a series of after-sale service, such as product introduction, mounting, debugging, technical support and so on.
Warranty
All item Comes with Basic 3 Month Sellers Warranty, if item defective in 3 Month, We will offer replacement without extra Charger(including shipping fee)After we Receive the Defective item.
If item Defective after 3 Month, Buyers can still send it back, We will contact suppliers or Manufactory for Warranty. Buyers Might Need to pay the Shipping fee For resend the replaced item.
