Nitrile Membrane FLY/AIRWOLF RCA Pilot Pneumatic Pulse Jet Valves RCA25DD 1" DD Series
RCA25DD 1" DD Series Nitrile membrane FLY/AIRWOLF RCA Pilot Pneumatic Pulse Jet Valve
Order Code
| Ordering Code | Port Size | Orifice | Flow Value | Weight (kg) | ||
| G Threaded | mm | Kv | Cv | CA | RCA | |
| CA25DD/RCA25DD | 1" | 25 | 20 | 23 | 1.25 | 1.01 |
| CA45DD/RCA45DD | 1 1/2" | 40 | 44 | 51 | 2.30 | 2.15 |
Specification Details
| Construction | |
| Body | Aluminum (Diecast) |
| Washer | SS 304 |
| Armature | SS 430FR |
| Core and Plugnut | Stainless steel |
| Core Spring | SS 304 |
| Sealing & disc | NBR(nitrile/buna-n) |
| Screws | SS302 |
| Diaphragm | PA-6(Standard), fluororubber |
| Shading coil | Copper |
| Connector | DIN43650A |
| Voltage | DC: 24V, AC: 24V, 48V, 110V, 230V |
| Working Temperature | -20 to +85℃ Nitrile seals -29 to +232℃ fluororubber seals |
| Protection Class | IP65 |
| Coil Insulation Class | F |
| Working Pressure | 0.35-0.85Mpa |
| Recommended on time range | 50-500ms |
| Recommended time between pulses | 1 minute or Less |
Drawing

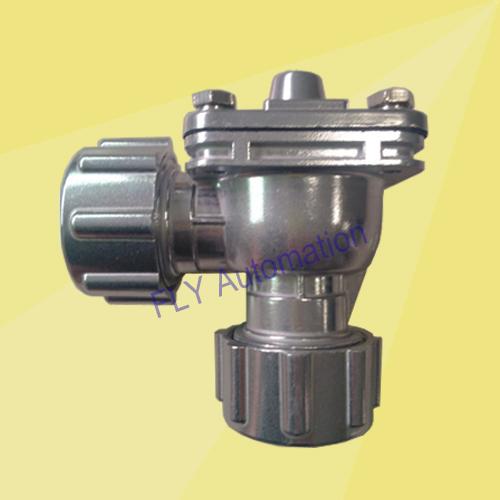

Product show
Quality Standards
The company for the products are brand new original products, no second-hand and refurbished products, or leave a compensable ten and return the full amount, but the buyer due to our purchase of model error is not responsible for returns, another of the company's sales of products enjoy one year from the date of shipment quality assurance, according to the original quality standards, during warranty with product problems, need confirmation testing by the manufacturer, the supplier to be solved, the demand side due to storage, use, poor maintenance caused by lower-quality product, and not raise objections.
Products shopping guide
For example: you want to purchase a batch of cylinders but you don't know which type you are really want, so you can tell me all your requirement and I'll recommend to you.
After-sale service
We can provide a series of after-sale service, such as product introduction, mounting, debugging, technical support and so on.
