Aluminum Alloy Automatic Air Treatment Unit 1 / 2 Inch Black Color Gfc300-15

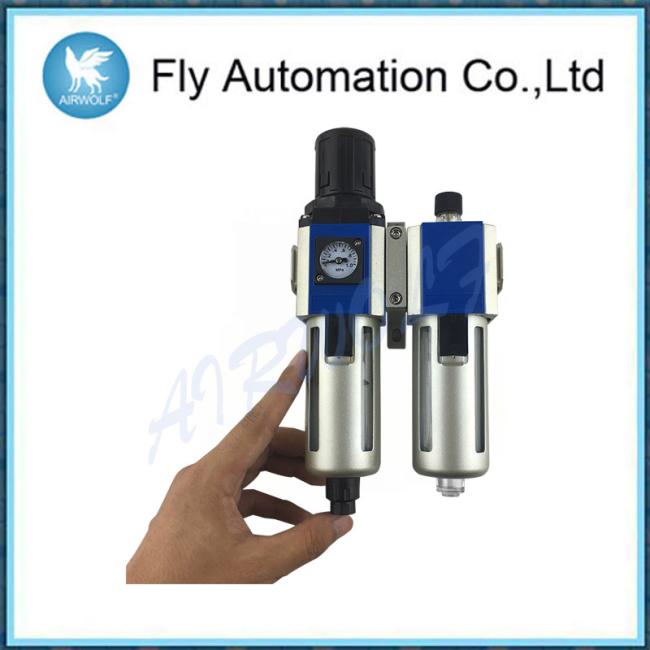

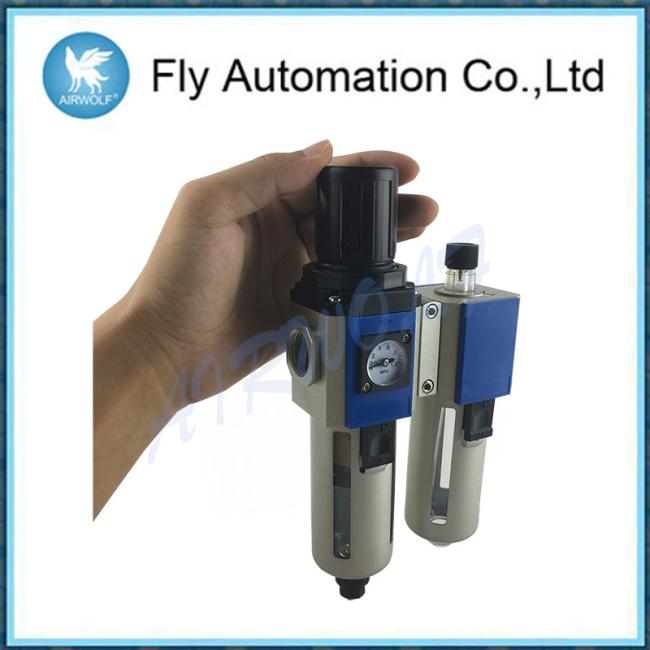

FRL Unit GFC300-15 Airtac 1/2 Inch Black Aluminum Alloy Automatic Air Treatment Unit
Product feature
1. Quick and reliable mounting clamps makes it convenient to install and use.
2. The performance of pressure adjustment is reliable with high precision.
| Model | GFC200-06 | GFC200-08 | GFC300-08 | GFC300-10 | GFC300-15 | GFC400-10 | GFC400-15 | GFC600-20 | GFC600-25 | |
| Fluid | Air | |||||||||
| Port Size | 1/8" | 1/4" | 1/4" | 3/8" | 1/2" | 3/8" | 1/2" | 3/4" | 1" | |
| Filtering grade | 40μmor5μm | |||||||||
| Pressure Range | Semi-auto and automatic drain:0.15-0.9MPa(20~30psi);Manual drain:0.05-0.9MPa(7~130psi) | |||||||||
| Max.Pressure | 1.0MPa(145Psi) | |||||||||
| Proof Pressure | 1.5MPa(215Psi) | |||||||||
| Temperature Range | -5~70℃ | |||||||||
| Capacity of drain bowl | 10CC | 40CC | 80CC | 230CC | ||||||
| Capacity of oil bowl | 25CC | 75CC | 160CC | 380CC | ||||||
| Recommended lubricant | ISO VG 32 or equivalent | |||||||||
| Weight | 0.43kg | 0.98kg | 1.95kg | 4.32kg | ||||||
| Constitute | Filter-Regulator | GFR200-06 | GFR200-08 | GFR300-08 | GFR300-10 | GFR300-15 | GFR400-10 | GFR400-15 | GFR600-20 | GFR600-25 |
| Lubricator | GL200-06 | GL200-08 | GL300-08 | GL300-10 | GL300-15 | GL400-10 | GL400-15 | GL600-20 | GL600-25 | |
NingboAirwolf Automation was founded in 2006. We have many years experience in producing pneumatic components. Pneumatic components includes pneumatic fittings, pulse valves, water valves, induction coil, solenoid valves, manual valves, air control valves, angle seat valve, air preparation units, cylinders, air gun, air brush, machinery parts, PU/PE pneumatic & hydraulic tubes and pneumatic accessories.
After-sale service
We can provide a series of after-sale service, such as product introduction, mounting, debugging, technical support and so on.
