3 / 8" Pneumatic Air Preparation Units Black Color 0.4kg Air Filter Regulator

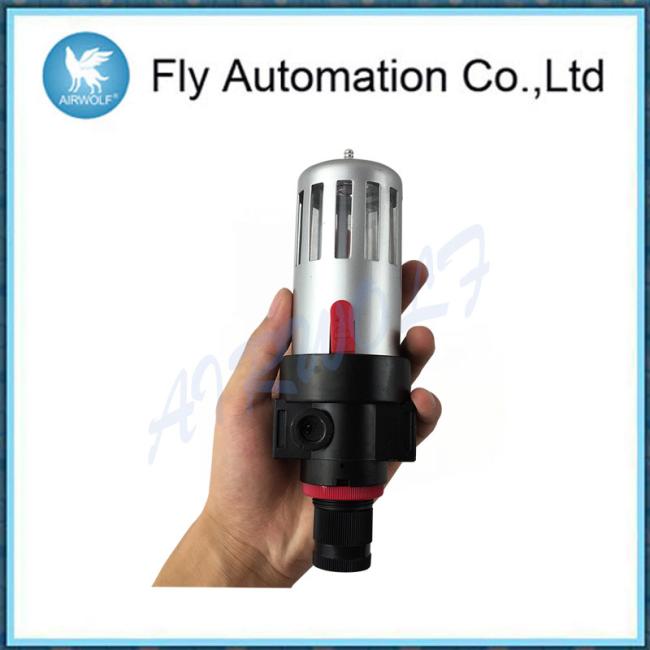

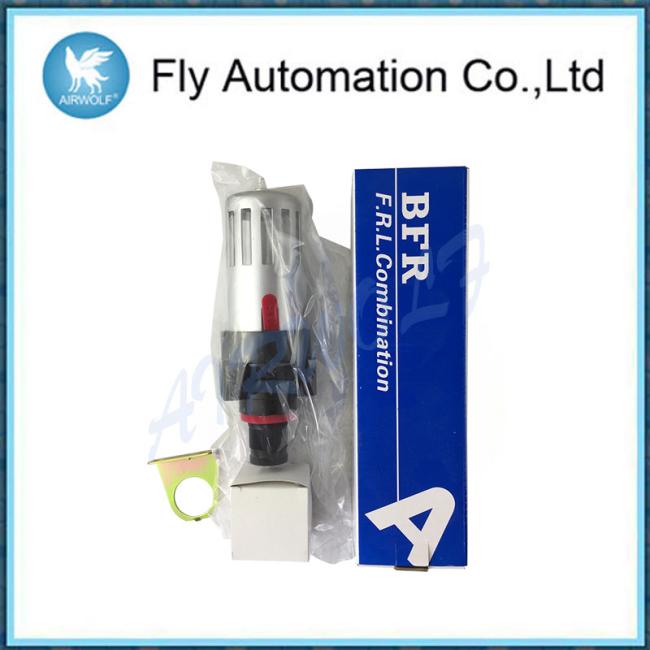

Airtac 3/8" BFR2000 BFR3000 0.4kg Pneumatic Black Aluminum Alloy Air Filter Regulator
Product feature
1. The structure is delicate and compact, which is convenient for installation and application.
2. The pressed-in self-Iocking mechanism can prevent the abnormal movement of the set pressure
caused by external interfere.
3. In addition to standard type, lower pressure type is optional(The highest adjustable pressure is
0.4MPa)
| Model | AFR1500 | AFR2000 | BFR2000 | BFR3000 | BFR4000 |
| Fluid | Air | ||||
| Port Size | 1/8" | 1/4" | 1/4" | 3/8" | 1/2" |
| Pressure Range | Semi-auto and automatic drain: 0.15~0.9MPa(20~130Psi) | ||||
| Manual drain: 0.05~0.9MPa(7~130Psi) | |||||
| Max.Pressure | 1.0MPa(145Psi) | ||||
| Proof Pressure | 1.5MPa(215Psi) | ||||
| Temperature Range | -5~70℃ | ||||
| Capacity of drain bowl | 15CC | 60CC | |||
| Weight | 0.2kg | 0.23kg | |||
Quality Standards
The company for the products are brand new original products, no second-hand and refurbished products, or leave a compensable ten and return the full amountaccording to the original quality standards, during warranty with product problems, need confirmation testing by the manufacturer, the supplier to be solved, the demand side due to storage, use, poor maintenance caused by lower-quality product, and not raise objections.
Samples
you can ask for a sample from me.We can provide a series of after-sale service, such as product introduction, mounting, debugging, technical support and so on.
