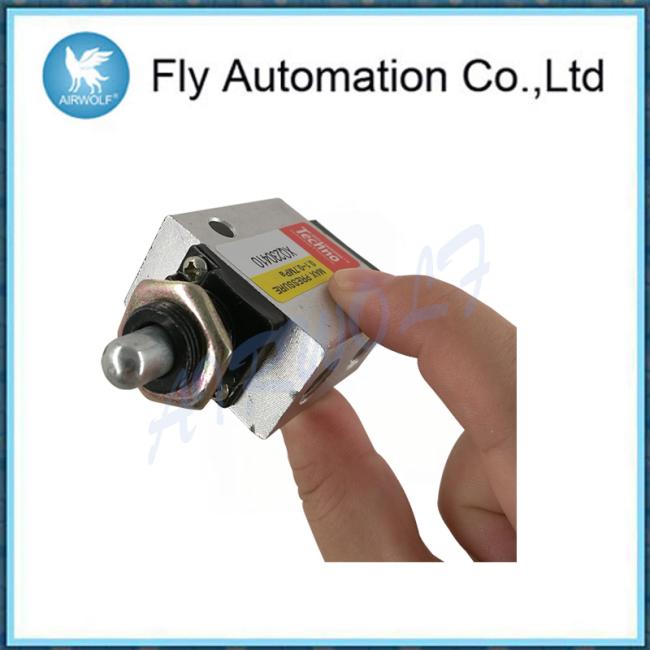

XQ Series XQ230410 3/2 Way 1/8" Stainless Steel Plunger Type Pneumatic Mechanical Valve

2 Position 3,5 - Port Mechanical Valve

XQ Series

Mechanical valves usually use the externa force from cams or rams to change the fluid flowing directions.

When the external forces disappear the valves reset automatically. There are several control types: plunger, roller plunger, roller lever and one way roller lever, 2-Pos. 3-Port and 2-Pos. 5-Port. The P port and R port of a 2-Pos. 3-Port valve can be exchanged so as to change the valve from normally closed to normally open.

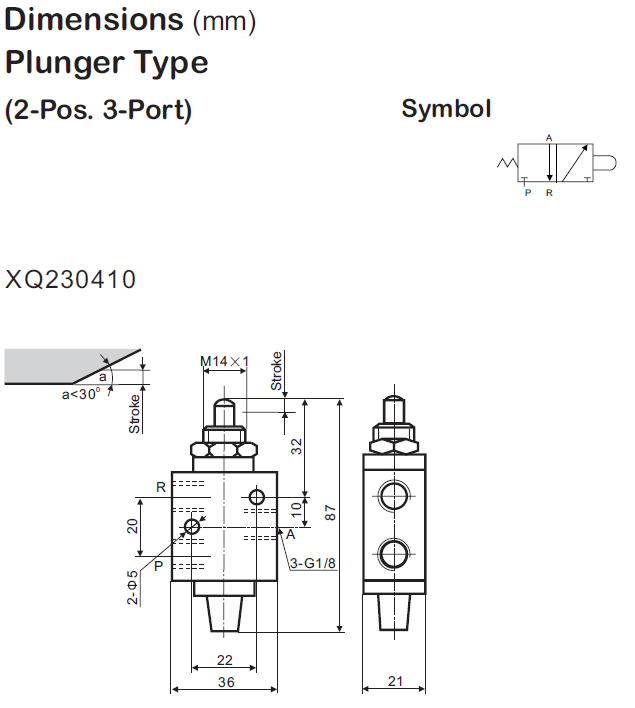

When a mechanical valve is installed, the moving direction of the ram should be in α angle against the valve and the plunger should be pressed down a S distance(the direction-changed stroke) as shown in diagram(XQ230410).

Specification

Pictures details
