0.1 - 0.7 Mpa Pneumatic Manual Valve Xq230610 Aluminium Alloy Material 3/2 Way

China factory XQ Series XQ230610 metallic G1/4 G1/8 G3/8 Techno  3/2 way roller lever valve

Pneumatic mechanical valve Function

Pneumatic mechanical valve is a common pipe switch in automatic control system,which is widely used in printing,dyeing,bleaching,video,washing,chemical,water treatment,medicine and other automatic mechanical equipment,with the characteristics of no water stroke,no noise and reliable sealing performance.

Pneumatic mechanical valve Function

2 Position 3,5 - Port Mechanical Valve

XQ Series

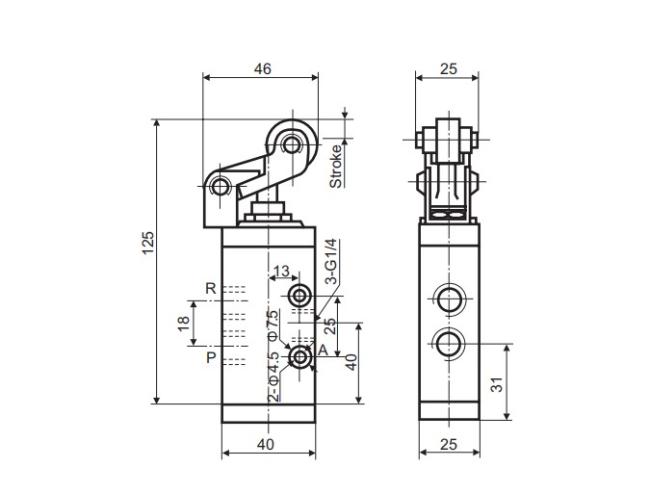

When a mechanical valve is installed, the moving direction of the ram should be in α angle against the valve and the plunger should be pressed down a S distance(the direction-changed stroke) as shown in diagram.

Mechanical valves usually use the externa force from cams or rams to change the fluid flowing directions.

When the external forces disappear the valves reset automatically. There are several control types: plunger, roller plunger, roller lever and one way roller lever, 2-Pos. 3-Port and 2-Pos. 5-Port. The P port and R port of a 2-Pos. 3-Port valve can be exchanged so as to change the valve from normally closed to normally open.

2-Pos. 3-Port, 2-Pos. 5-Port, 3-Pos. 4-Port, . The P and R ports can be exchanged so as to make the valve normally closed or open.

Specification

XQ Series​ Features
The position change is made by the air signal operating the spool.
Double air operated valve has memory function.
Air operated valve is extensively used in controlling cylinders,other actuators and pneumatic components.

2 Position 3,5-Port & 3Position 5-Port Air Operated Valve.

Pictures details

Quality Standards
The company for the products are brand new original products, no second-hand and refurbished products, or leave a compensable ten and return the full amount, but the buyer due to our purchase of model error is not responsible for returns, another of the company's sales of products enjoy one year from the date of shipment quality assurance, according to the original quality standards, during warranty with product problems, need confirmation testing by the manufacturer, the supplier to be solved, the demand side due to storage, use, poor maintenance caused by lower-quality product, and not raise objections.

Samples
You can send a sample to customize the products, we have many engineers can help it; If you want a product of mine, but you are not sure if it's what you want, so you can ask for a sample from me, it will be free.
