CDJP Series with auto switch silver Aluminum alloy CDJPB15-25D CDJPB10-20D Pin Cylinder
Standard CJP Series silver Aluminum alloy CDJPB15-25D CDJPB10-20D Pin Cylinder
Caution
1.To replace seals or to grease the cylinder during maintenance, use an appropriatepair of pliers (tool for installing a C typehole snap ring). After re-installing the cylinder, make sure that the snap ring isplaced securely in the groove beforesupplying air.
2.To remove and install the snap ring for the knuckle pin or the clevis pin, use an appropriate pair of pliers (tool for installinga C type hole snap ring). ln particular, usea pair of ultra-mini pliers, such as theSuper Tool CSM-07A, for removing andinstaling the snap rings on the 6mm cylinder.
Variations
| Series | Action | Bore Size (mm) |
|
| Standard Style Series CJP |
Double Acting (Non-lube) |
single Rod | 6 10 15 |
| single Acting (Non-lube) |
single Rod Spring return |
||

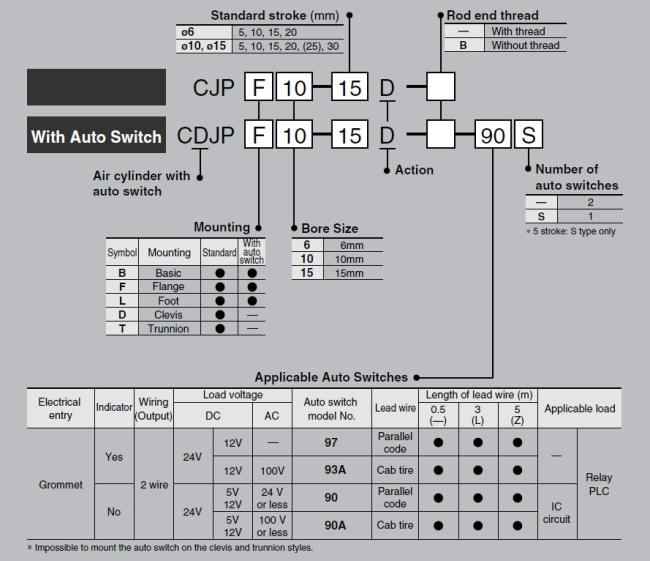

Specifications
| Max. operating pressure | 0.7MPa | |
| Min. operating | Ф6 | 0.12MPa |
| Ф10, Ф15 | 0.06MPa | |
| Proof pressure | 1.05MPa | |
| Ambient and fluid temperature | w/o auto switch: 10℃ to 70℃, w/auto switch: 10℃ to 60℃ | |
| Lubrication | Not required | |
| Stroke tolerance | ±1.0 0 |
|
| Thread tolerance | JIS class 2 | |
| Rod end thread | With thread/Without thread | |
| Operating piston speed | 50 to 500mm/s | |
| Cushion | Rubber bumper at both ends | |
| Mounting | Basic, Flange, Foot, Clevis, Trunnion | |

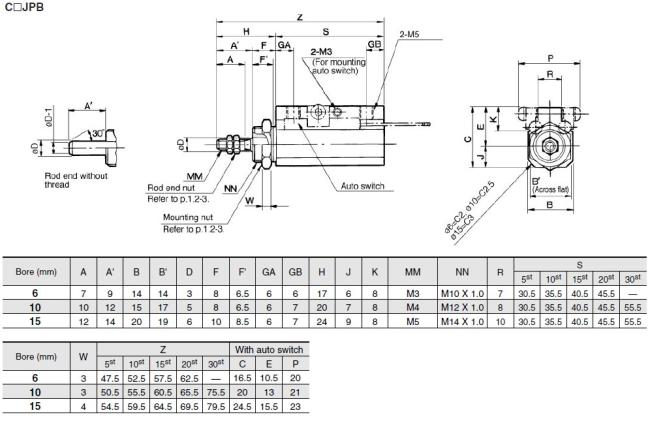

Basic
| Bore size(mm) | Stroke(mm) |
| 6 | 5,10,15,20 |
| 10 | 5,10,15,20,25,30 |
| 15 | 5,10,15,20,25,30 |
Weight(g)
| Stroke Mounting style |
Bore size(mm) | |||
| 6 | 10 | 15 | ||
| Standard | 5 | 44 | 60 | 99 |
| 10 | 50 | 66 | 108 | |
| 15 | 56 | 73 | 118 | |
| 20 | 62 | 79 | 127 | |
| 25 | - | 93 | 148 | |
| 30 | - | 92 | 146 | |
