Silver Color Small Air Cylinder Aluminum Alloy Smc Mxs Series Standard
SMC MXS Series standard silver Aluminum 6mm MXS6-20 8mm MXS8-30 MXS12-40 air cylinder
Caution
1.Do not apply a load over the operating limit range.
Select the model considering max.allowable load and allowable moment.When actuator is used outside of operating limits, eccentric loads on guide will be in excess this causing vibration on guide and inaccuracy, and shortens life.
2.If intermediate stops by external stopper is done, avoid ejection.
If ejection occurs, it may cause damage. In case the slid table is stopped at intermediate positions by an external stopper then forwarded to the front, return the slide table to the back for just a moment to retract the stopper,then supply pressure to the opposite port to operate slide table.
Typical Applications
Printing (Tension Control)
Semiconductor (spot welding machine, chip grinding)
Automation Control
Robot
Series Variations
| Model | Bore size(mm) |
| Standard type | |
| MXS 6 | 6 |
| MXS 8 | 8 |
| MXS12 | 12 |
| MXS 16 | 16 |
| MXS 20 | 20 |
| MXS 25 | 25 |
Specifications
| Bore size (mm) | 6 | 8 | 12 | 16 | 20 | 25 |
| Piping port size | M5 x 0.8 | Rc 1/8, NPT 1/8, G 1/8 | ||||
| Fluid | Air | |||||
| Action | Double acting | |||||
| Operating pressure | 0.15 to 0.7 MPa | |||||
| Proof pressure | 1.05 MPa | |||||
| Ambient and fluid temperature | –10 to 60°C | |||||
| Piston speed | 50 to 500 mm/s (Adjuster option/Metal stopper: 50 to 200 mm/s) |
|||||
| Cushion | Rubber bumper (Standard, Adjuster option/Rubber stopper) Shock absorber (Adjuster option/Shock absorber) None (Adjuster option/Metal stopper) |
|||||
| Lubrication | Non-lube | |||||
| Auto switch | Reed auto switch (2-wire, 3-wire) Solid state auto switch (2-wire, 3-wire) 2-color indication solid state auto switch (2-wire, 3-wire) |
|||||
| Stroke length tolerance | +1mm | |||||
Standard Stroke
| Model | Standard stroke (mm) |
| MXS 6 | 10, 20, 30, 40, 50 |
| MXS 8 | 10, 20, 30, 40, 50, 75 |
| MXS 12 | 10, 20, 30, 40, 50, 75, 100 |
| MXS 16 | 10, 20, 30, 40, 50, 75, 100, 125 |
| MXS 20 | 10, 20, 30, 40, 50, 75, 100, 125, 150 |
| MXS 25 | 10, 20, 30, 40, 50, 75, 100, 125, 150 |

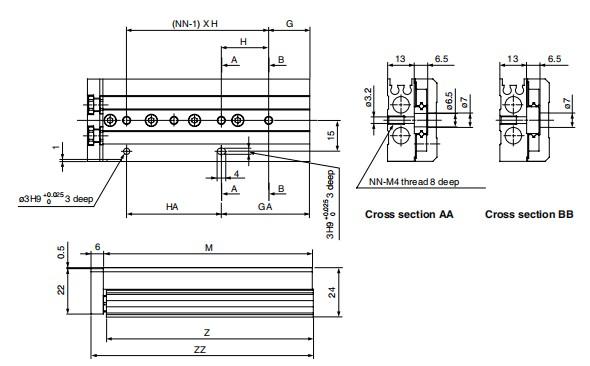

Size
| Model | F | N | G | H | NN | GA | HA | I | J | K | KA | NA | M | Z | ZZ |
| MXS8-10 | 25 | 4 | 9 | 28 | 2 | 17 | 20 | 13 | 19.5 | 23.5 | - | 2 | 49 | 48.5 | 56 |
| MXS8-20 | 25 | 4 | 12 | 30 | 2 | 12 | 30 | 8.5 | 29 | 33.5 | - | 2 | 54 | 53.5 | 61 |
| MXS8-30 | 40 | 4 | 13 | 20 | 3 | 33 | 20 | 9.5 | 39 | 43.5 | - | 2 | 65 | 64.5 | 72 |
| MXS8-40 | 50 | 4 | 15 | 28 | 3 | 43 | 28 | 10.5 | 56 | 53.5 | - | 2 | 83 | 82.5 | 90 |
| MXS8-50 | 38 | 6 | 20 | 23 | 4 | 43 | 46 | 24.5 | 60 | 63.5 | 82.5 | 4 | 101 | 100.5 | 108 |
| MXS8-75 | 50 | 6 | 27 | 28 | 5 | 83 | 56 | 38.5 | 96 | 88.5 | 132.5 | 4 | 151 | 150.5 | 158 |

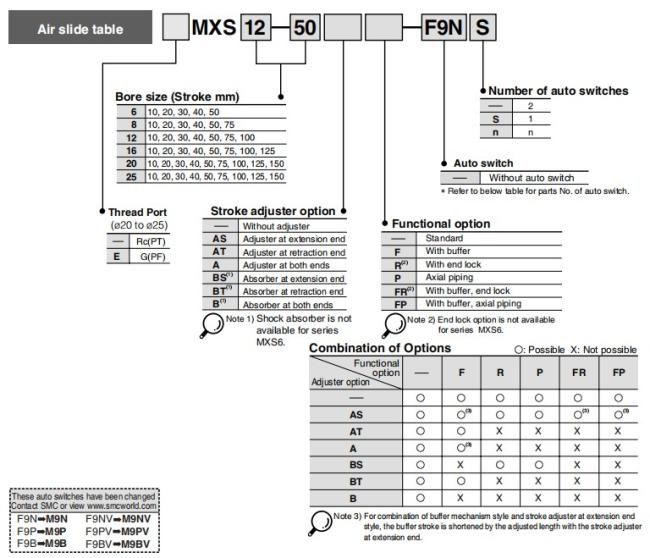

How to order
After-sale service
We can provide a series of after-sale service, such as product introduction, mounting, debugging, technical support and so on.
