50mm Rubber Bumpers Magnetically Coupled Cylinder In Silvery Cy1r50h-300

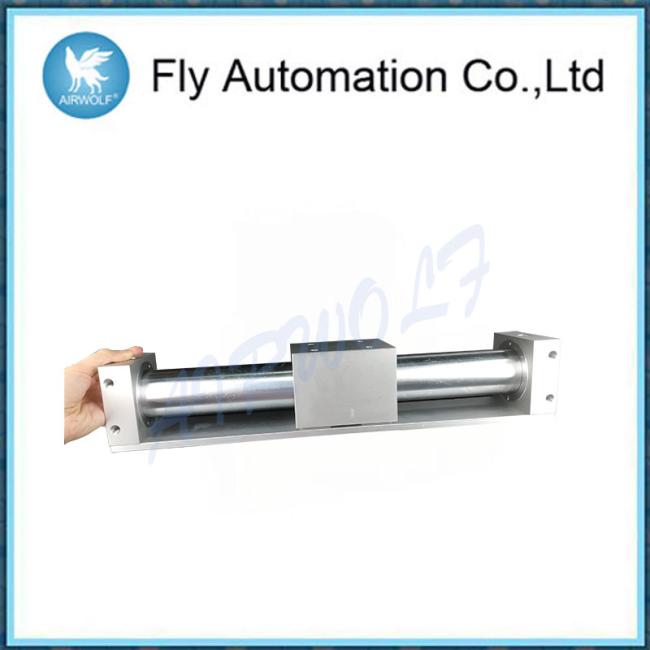

Pneumatic Cylinder CY1R50H-300 SMC 50mm Magnetically Coupled Rubber Bumpers Cylinder
Features
• Cylinder can be directly mounted.
• Auto switches can be mounted, and there is no lurching from cylinder.
• Turning can be stopped within an allowable range.
• Piping can be concentrated with the centralized piping style.
• External dimensions are compact.
• Mounting can be performed on the top body surface or on one side surface.
Typical Applications
Printing (Tension Control)
Semiconductor (spot welding machine, chip grinding)
Automation Control
Robot
| Specifications | |||||
| Fluid | Air | ||||
| Proof pressure | 1.05MPa | ||||
| Max. operating pressure | 0.7MPa | ||||
| Min. operating pressure | 0.18MPa | ||||
| Ambient & fluid temperature | -10 to 60℃ | ||||
| Piston speed (1) | 50 to 500mm/s | ||||
| Cushion | Rubber bumpers at both ends | ||||
| Lubrication | Non-lube | ||||
| Mounting method | Direct mounted style | ||||
| Standard Stroke | |||||
| Bore size (mm) |
Standard stroke (mm) | Max. available stroke (mm) |
Max. stroke with switch (mm) |
||
| 6 | 50, 100, 150, 200 | 300 | 300 | ||
| 10 | 50, 100, 150, 200, 250, 300 | 500 | 500 | ||
| 15 | 50, 100, 150, 200, 250, 300 350, 400, 450, 500 |
1000 | 750 | ||
| 20 | 100, 150, 200, 250, 300, 350 400, 450, 500, 600, 700, 800 |
1500 | 1000 | ||
| 25 | 2000 | 1500 | |||
| 32 | |||||
| 40 | 100, 150, 200, 250, 300, 350 400, 450, 500, 600, 700, 800 900, 1000 |
2000 | 1500 | ||
| 50 | |||||
| 63 | |||||
| Weight(g) | ||||||||||
| Item | 6 | 10 | 15 | 20 | 25 | 32 | 40 | 50 | 63 | |
| Basic weight (for 0st) |
CY1R()H CY1RG()H (with switch rail) |
0.092 | 0.111 | 0.277 | 0.440 | 0.660 | 1.27 | 2.06 | 3.59 | 5.45 |
| CY1R()L CY1RG()L (with switch rail) |
- | - | - | 0.330 | 0.570 | 1.12 | 1.88 | 3.29 | 4.95 | |
| CY1R()H (without switch rail) |
0.075 | 0.080 | 0.230 | 0.370 | 0.580 | 1.15 | 1.90 | 3.30 | 5.10 | |
| CY1R()L (without switch rail) |
- | - | - | 0.260 | 0.490 | 1.00 | 1.72 | 3.00 | 4.60 | |
| Additional weight per 50st (with switch rail) |
0.016 | 0.034 | 0.045 | 0.071 | 0.083 | 0.113 | 0.133 | 0.177 | 0.212 | |
| Additional weight per 50st (without switch rail) |
0.004 | 0.014 | 0.020 | 0.040 | 0.050 | 0.070 | 0.080 | 0.095 | 0.120 | |
