HSV06, HSV08, HSV10 AIRTAC Sunrise HSV Series 3/2 way Hand Slide Valve 1/8", 1/4", 3/8"
HSV06, HSV08, HSV10 AIRTAC Sunrise HSV Series 3/2 way Hand Slide Valve 1/8"~1"

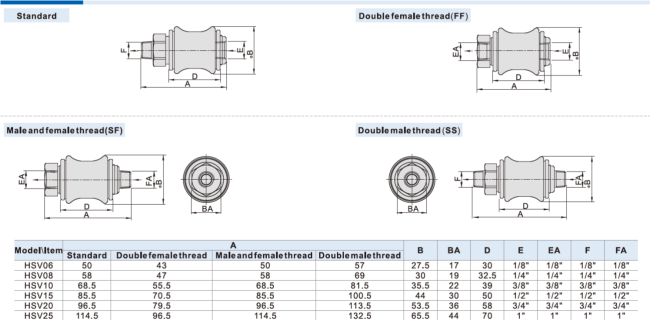

There are several ways of internal and external threadconnection, suitable for the application in differentpipeline systems.The direction-change slides smoothly and has goodhand feeling.There is large effective circulating area.The valve plug surface is treated with hard anodizing,and the surface of valve body is oxidized to keep the color for a long time.
| Type | Port Size | Positions | Mounting Type |
|---|---|---|---|
| HSV06 | 1/8" | 3/2 way | Standard |
| HSV08 | 1/4" | 3/2 way | Standard |
| HSV10 | 3/8" | 3/2 way | Standard |
| Model | HSV06 | HSV08 | HSV10 |
|---|---|---|---|
| Fluid | Air (to be filtered by 40 μm filter element) | ||
| Operating | Manual control direct acting type | ||
| Port size [Note1] | 1/8" | 1/4" | 3/8" |
| Orifice size | 23.0mm² (Cv=1.28) | 40.0mm² (Cv=2.20) | 62.0mm² (Cv=3.50) |
| Valve type | 3/2 Way | ||
| Lubrication | Not required | ||
| Pressure range | 0~1.0MPa (0~145psi) | ||
| Proof pressure | 1.5MPa (215psi) | ||
| Temperature | -20~70℃ | ||
| Material of body | Aluminum alloy | ||
| [Note1] PT thread. G thread and NPT thread are available | |||
