ST-01, ST-02, ST-03, ST-04, ST-06, ST-08 ST Series one-way Shuttle Valve 1/8", 1/4", 3/8", 1/2", 3/4", 1"
ST-01, ST-02, ST-03, ST-04, ST-06, ST-08 ST Series one-way Shuttle Valve 1/8", 1/4", 3/8", 1/2", 3/4", 1"
The ST Series Shuttle Valve is a pneumatic flow control component designed with a compact aluminum alloy body, featuring a durable construction that ensures reliable performance in industrial automation applications. These valves are characterized by their multiple port sizes ranging from G1/8" to G1" (e.g., ST-01 to ST-08 models) and operate effectively within a pressure range of 0–1.0 MPa, with a proof pressure of 1.5 MPa and a typical operating temperature range of -5°C to 60°C. The valve's design incorporates a sliding shuttle mechanism that allows it to function as a pressure-sensitive selector, enabling seamless switching between two inlet ports to direct airflow to a common outlet based on which input port has higher pressure, making it ideal for logic circuits and systems requiring source selection.
Order Codes:
| Item Code | Port Size | Positions |
|---|---|---|
| ST-01 | 1/8" | one-way |
| ST-02 | 1/4" | one-way |
| ST-03 | 1/2" | one-way |
| ST-04 | 3/8" | one-way |
| ST-06 | 3/4" | one-way |
| ST-08 | 1" | one-way |
Specification:
| Model | ST-01 | ST-02 | ST-03 | ST-04 | ST-06 | ST-08 |
| Port size | 1/8" | 1/4" | 3/8" | 1/2" | 3/4" | 1" |
| Orifice size | 7.5mm² | 21mm² | 40mm² | 60mm² | 110mm² | 190mm² |
| Working medium | Dry compressed air filtered by 40μm | |||||
| Working pressure range | 0~0.95Mpa | |||||
| Proof pressure | 1.5MPa | |||||
| Operating temperature range | -5~60℃ | |||||
| Body material | Aluminum alloy | |||||

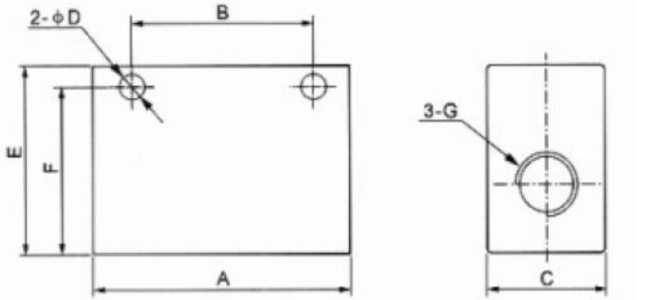

Dimensions:
| Model | A | B | C | D | E | F | G |
|---|---|---|---|---|---|---|---|
| ST-01 | 40 | 24 | 16 | 4.5 | 25 | 20.5 | 1/8" |
| ST-02 | 50 | 35 | 22 | 5.5 | 35 | 25 | 1/4" |
| ST-03 | 75 | 48 | 30 | 7 | 50 | 42 | 3/8" |
| ST-04 | 75 | 48 | 30 | 7 | 50 | 42 | 1/2" |
| ST-06 | 110 | 72 | 40 | 7 | 70 | 58 | 3/4" |
| ST-08 | 110 | 72 | 40 | 7 | 70 | 58 | 1" |
