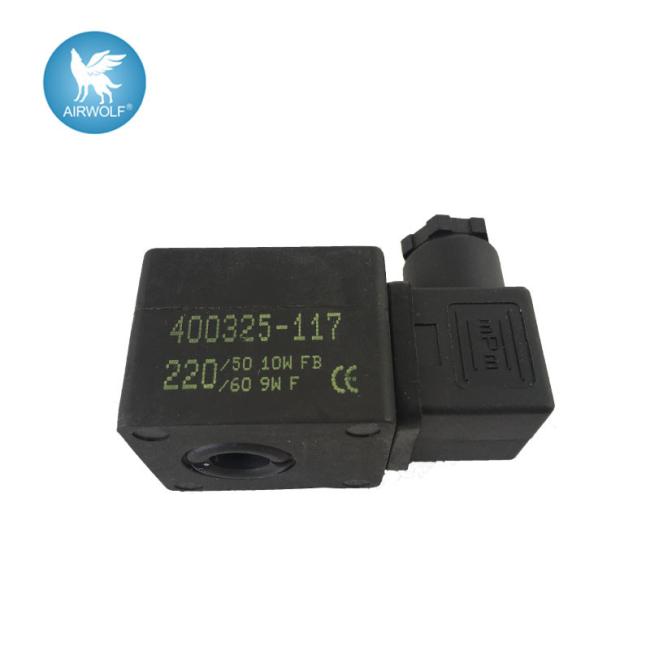

Pulse Jet Valve Coil 400325-117 400325-107 400325-142
Pulse Jet valve Coil 400325-117 400325-107 400325-142 220VAC 110VAC
Pulse valve is widely used in environmental dust industries , such as electromagnetic or pneumatic control
by the pilot valve can open and close the high pressure gas source to generate pulse valve diaphragm valve
in an instant , but also commonly known as electromagnetic pulse were pulsed valve or gas control
valve .
| Ordering Code | Fitted Valve Code | Type |
| 400325-117 | SCG353A043 SCG353A044 | 220VAC |
| 400325-107 | 110VAC | |
| 400325-205 | 48VAC | |
| 400325-201 | 24VAC | |
| 400325-142 | 24VDC |
Specifications:

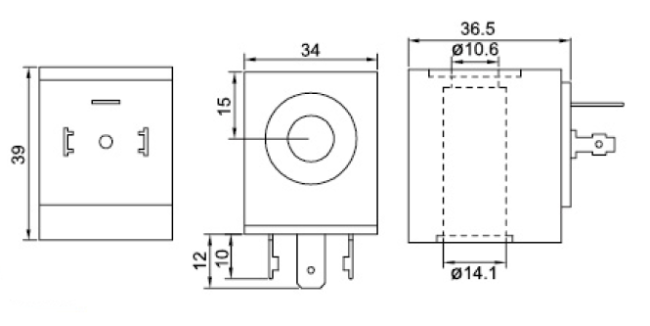

1. Size : M6
2. Coil Insulation : Class F
3. Color : Black ( can be customized )
4. Inner Hole : Φ 10.6mm , High39mm
5. Normal voltage : DC24V
6. Connection Type : DIN43650
7. Applicability : Pulse valve series
8. Heavy duty long service life
|
|
DC24V= |
DC48V= |
AC24V= |
AC48V= |
AC115V= |
AC230V= |
|
CM-6 CM-6 CM6FT CM6FB |
234511-006 238511-106 400325-142 400325-242 |
400325-144 400325-244 |
400325-101 400325-201 |
400325-105 400325-205 |
400325-118 400325-218 |
238211-057 238211-157 400325-117 400325-217 |
|
CM-XX CM-XX CMXX-FT CMXX-FB CMXX-FF CM12-FT CM12-FB |
238911-006 238911-106 400425-142 - 400425-342 400625-142 400625-242 |
400425-144 - 400425-344 400625-144 400625-244 |
400425-101 400425-201 - 400525-101 400525-201 |
400425-105 400425-205 - 400525-105 400525-205 |
400425-118 400425-218 - 400525-118 400525-218 |
238611-057 238611-157 400425-117 400425-217 - 400525-117 400525-217 |
Applications
Pressure loss decreased for the lower air pressure in the workplace .
Coil other parameter:
|
Insulation temperature class |
A |
E |
B |
F |
H |
|
Maximum allowable temperature/degree |
105 |
120 |
130 |
155 |
180 |
|
Permissible temperature rise(K) |
60 |
75 |
80 |
105 |
125 |
|
Performance reference temperature/degree |
80 |
95 |
100 |
120 |
145 |
|
Thermal margin |
5 |
5 |
10 |
10 |
15 |
|
Maximum ambient temperature/degree |
40 |
40 |
40 |
40 |
40 |
