AE1450B AE1460B TPE Diaphragm Repair Kit Pump M/D50 M/D60
Autel Pulse Jet Valve AE1450B AE1460B TPE diaphragm pump M/D50 M/D60
Description:
| Features | Values |
| In | Pipe 2" , 2-1/2" |
| Out | Pipe 2" , 2-1/2" |
| Working Pressure | 1,5-8 bar |
| Standard Temperature Range | -40 °C ; +100 °C |
| High Range Temparature | -20 °C ; +200 ° |
| Kv | 62 m^3/h |
| Weight | 2,6-2,8 kg |
| Protection Level | IP65 |

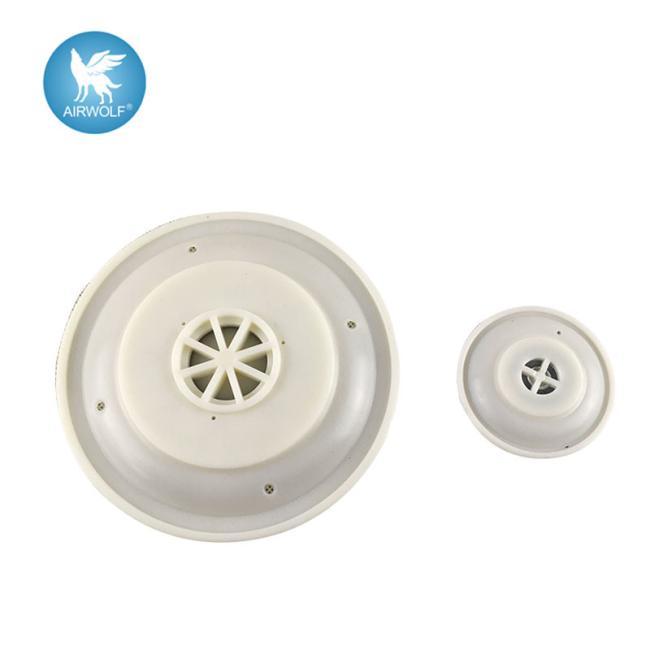

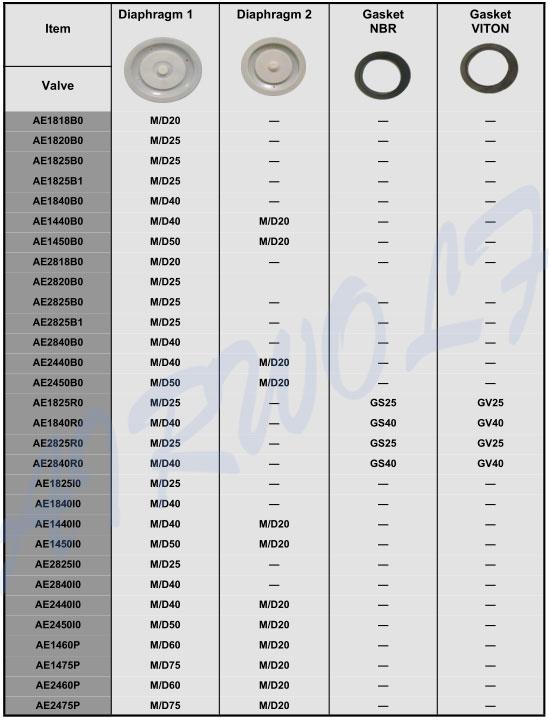

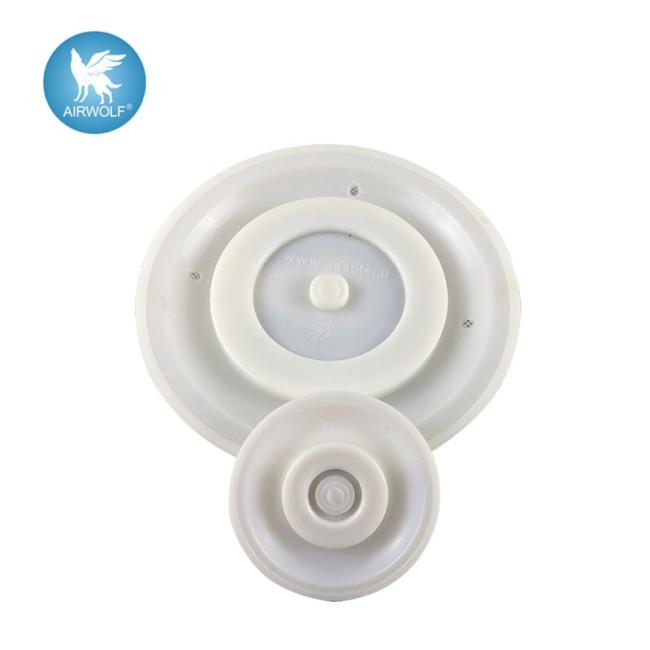

1. The diaphragm repair kits is for Italy Autel pulse jet valves AE1450B AE1460B
2. This repair kit has large air - outlet , so the air can get throgh very smoothly.
3. We use high quality material , the collection equipment efficiency can be improved , the energy loss also can be reduced.
4. Autel M/D50 M/D60 membranes has unique geometric diaphragm design , high speed from multiple diaphragm to reach the highest peak in an instant.
5. Its lifespan is about 1 million cycles.
6. Material: TPE or PTEF
7. Color:White
1 . The pulse diaphragm valves are especially designed for dust collector service applications, combining high flow, long life and extremely fast opening and closing to produce reliable and economical operation.
2 . The high flow, angle type bodies in combination with the special main diaphragm assemblies give the unique operating features required for dust collector service applications
3 . The design with integral compression fittings will facilitate installation because there is no need for threaded piping
4 . The high quality diaphragms are reinforced and wear resistant to guarantee a long operating life, even under harsh conditions
5 . Integral pilot operated valves satisfy all relevant EC directives
Structure:
| No. | Description | Material |
| A | Optional Fitting | Nickeled Brass |
| 1 | Screw M6 | SS |
| 2 | Washer | SS |
| 3 | Cover 3/4" | Die Cast Alu |
| 4 | Diaphragm 3/4" | TPE |
| 5 | Screw M8 | SS |
| 6 | Washer | SS |
| 7 | Cover 1" 1/2 | Die Cast Alu |
| 8a | STD Diaphragm 1"1/2 | TPE |
| 8b | HT Diaphragm 1" 1/2 Kit | fluororubber+PTFE |
| 9 | Body 1" 1/2 Integrated | Die Cast Alu |
| 10 | Clamp O'Ring | NBR |
| 11 | Body Tank O'Ring | NBR |
| 12 | Body Pipe O'Ring | NBR |
| 13 | Clamp 1" 1/2 | Die Cast Alu |
| 14 | Pipe O'Ring | NBR |
| 15 | Washer 1" 1/2 | Pa 6,6+ Ela |
| 16 | Blow Pipe 1" 1/2 | CS or SS |
General Description
In the high efficiency series we can include the range of flat surface valves. These valves, used for cleaning
filter elements in air filtration systems, are specifically designed for flat surfaces like square header tanks and
flanged tank. Like traditional model, with threaded and coupling connection, the activating can be:
Integrated the pilot is placed on the valve and the excitation (electric) is made by a coil.
Remote: the pilot is remote and the excitation is pneumatic. The connection between pilot and valve is made by
a simple pneumatic tube.
All That is achieved from a deep studying of internal geometrical characteristics and from a
technological research on diaphragm. This guarantees rapid opening-closing cycles and a working for
over a million of shots.
| Construction | |
| Body | Aluminum (Diecast) |
| Washer | SS 304 |
| Armature | SS 430FR |
| Core and Plugnut | Stainless steel |
| Core Spring | SS 304 |
| Sealing & disc | NBR(nitrile/buna-n) |
| Screws | SS302 |
| Diaphragm | PA-6(Standard), fluororubber |
| Connector | Pg9 IP65 |
| Voltage | 230-150-24 V / 50-60 HZ AC 24 V DC |
| Working Temperature | -20 to +85℃ Nitrile seals -29 to +232℃ fluororubber seals |
| Power Absorption | 17 VA AC / 17 W DC |
| Conn.Insulation class | C-VDE 0110 |
| Connector specification | Din 43650 – IS0 4400 |
| Max Pressure | 8 Bar |
| Recommended on time range | 50-500ms |
| Recommended time between pulses | 1 minute or Less |
Competitive Advantage:
| Our product features: | Our Services Guarantee: |
| 1) Competitive price | 1) Prompt respond (Reply with 24 hours) |
| 2) Good quality | 2) Free Samples (Customer pay for the delivery cost) |
| 3) Professional Packaging, | 3) Registration support. |
| 4) Produce according to Customers’ instruction | 4) Photos/videos are available during production. |
| 5) None delay shipment |
5) Loading inspection, and send loading photos before shipment.
|
