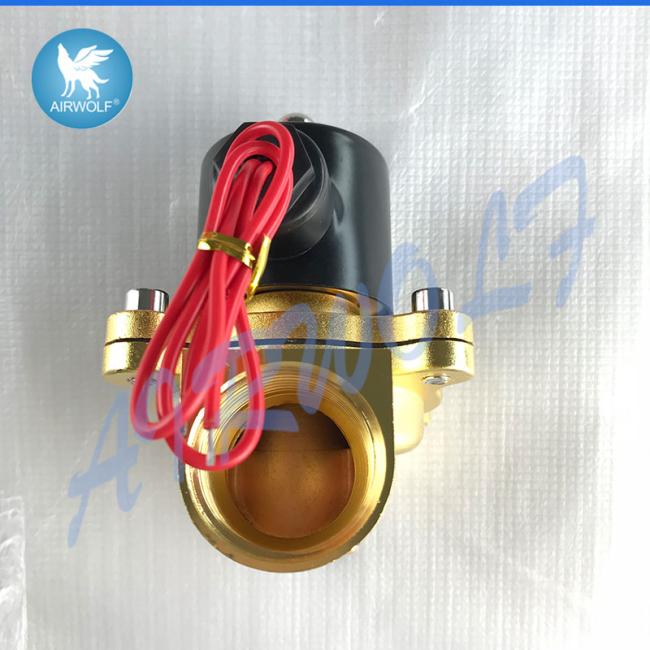

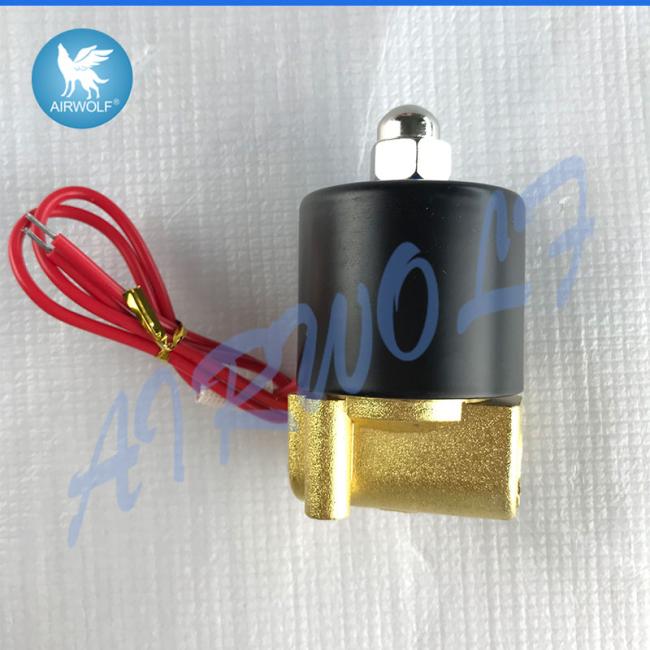

2W Series 2W025-06 2W040-10 Air Pressure Solenoid Valve
Price:
Negotiation
MOQ:
1 piece
Delivery Time:
1-7 work days
Brand:
AIRWOLF
Product Description
2W Series 2/2 way Solenoid valve Normal Close Brass Water valve 2W025-06 2W040-10
| 2W Series 2/2 way Direct Acting Solenoid Valve | ||||||
| Model | 2W025-06 | 2W025-08 | 2W040-10 | 2WH012-06 | 2WH012-08 | 2WH020-10 |
| Medium | Air,Water,Oil,Gas | |||||
| Operation | Direct Acting | |||||
| Type | Normal Close | |||||
| Orifice Size(mm) | 2.5 | 4 | 1.2 | 2 | ||
| CV Value | 0.23 | 0.6 | 0.05 | 0.15 | ||
| Port Size | G1/8" | G1/4" | G3/8" | G1/8" | G1/4" | G3/8" |
| Operation Fluid Viscosity | Below 23 CST | |||||
| Operating Pressure | Air,Water,Oil,Gas:0~0.7Mpa | Air,Water,Oil,Gas:0~0.2Mpa | ||||
| Max Pressure Resistance | 1.0MPa | 3.5MPa | ||||
| Operating Temperature | NBR for -5~80°C and fluororubber for -5~80°C | |||||
| Voltage Range | ±10% | |||||
| Material of Body | Stainless Steel or Brass | |||||
| Material of Oil Seal |
NBR,EPDM or fluororubber
|
|||||
2W series small oriffice Fluid Control Valve, also known zero-pressure solenoid valve, the initial state for normally closed,normally open only available for below 3/8", thread size range from 1/8" to 3/8", Din connector type and flying leads type,anti-explosion and anti-water coil are available. With the stalbe quality and wide application, 2W valve is popular with customers, especially in the water treatment system, the 2W valve is used widely.
Delivery
1. If the products we have in store, we will send it out ASAP after payment.
2. If the products which were customized, we will complete the production within a specified period of time, and send it out the first time, we can promise it.
3. Also we can send by your delivery acount if you want.
4. We have a variety of ways to send goods, usually DHL, Fedex, TNL will be normal ways. If you require use of a courier, we can do it.
