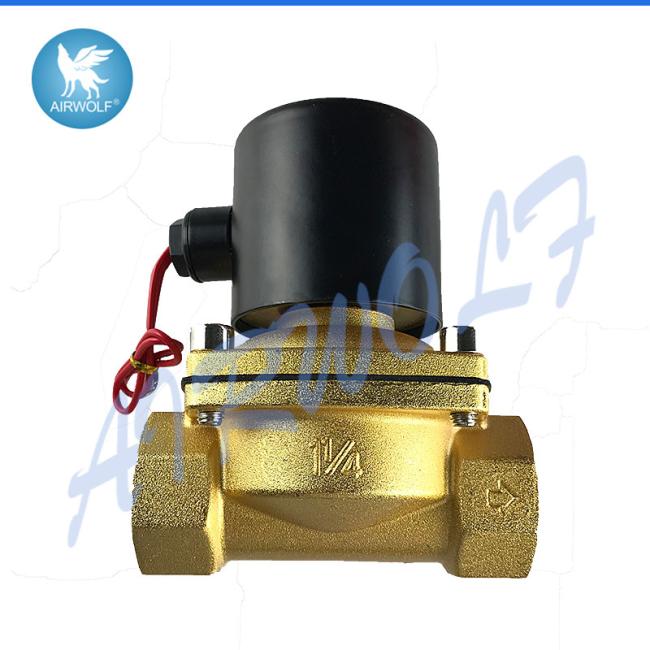

2W350-35 1 1/4 Inch Water Solenoid Valves 2 Position 2 Way AC220v
2W350-35 1 1/4inch 2 Position 2 way Normally closed brass water valve AC220v solenoid valve
2W series small oriffice Fluid Control Valve, also known zero-pressure solenoid valve, the initial state for normally closed,normally open only available for below 3/8", thread size range from 1/8" to 3/8", Din connector type and flying leads type,anti-explosion and anti-water coil are available. With the stalbe quality and wide application, 2W valve is popular with customers, especially in the water treatment system, the 2W valve is used widely.
| 2W Series 2/2 way Direct Acting Solenoid Valve | ||||||||||||
| Model | 2W160-10 | 2W160-15 | 2W200-20 | 2W250-25 | 2W350-35 | 2W400-40 | 2W500-50 | |||||
| Medium | Air,Water,Oil,Gas | |||||||||||
| Operation | Direct Acting | |||||||||||
| Type | Normal Close | |||||||||||
| Orifice Size(mm) | 16mm | 20mm | 25mm | 35mm | 40mm | 50mm | ||||||
| CV Value | 4.8 | 7.6 | 12 | 24 | 29 | 48 | ||||||
| Port Size | G3/8" | G1/2" | G3/4" | G1 " | G1 1/4" | G1 1/2" | G2" | |||||
| Operation Fluid Viscosity | Below 20 CST | |||||||||||
| Operating Pressure | Air,0~0.7MPA Water,0~0.5MPA Oil,Gas:0~0.5Mpa | |||||||||||
| Max Pressure Resistance | 1.0MPa | |||||||||||
| Operating Temperature | NBR for -5~80°C and fluororubber for -5~80°C | |||||||||||
| Voltage Range | ±10% | |||||||||||
| Material of Body | Stainless Steel or Brass | |||||||||||
| Material of Oil Seal | NBR,fluororubber | |||||||||||
Competitive Advantage:
| Our product features: | Our Services Guarantee: |
| 1) Competitive price | 1) Prompt respond (Reply with 24 hours) |
| 2) Good quality | 2) Free Samples (Customer pay for the delivery cost) |
| 3) Professional Packaging, | 3) Registration support. |
| 4) Produce according to Customers’ instruction | 4) Photos/videos are available during production. |
| 5) None delay shipment |
5) Loading inspection, and send loading photos before shipment.
|
Quality Standards :
The company for the products are brand new original products, no second-hand and refurbished products, or leave a compensable ten and return the full amount , but the buyer due to our purchase of model error is not responsible for returns, another of the company's sales of products enjoy one year from the date of shipment quality assurance , according to the original quality standards , during warranty with product problems , need confirmation testing by the manufacturer , the supplier to be solved , the demand side due to storage , use, poor maintenance caused by lower-quality product , and not raise objections
Samples
You can send a sample to customize the products, we have many engineers can help it; If you want a product of mine, but you are not sure if it's what you want, so you can ask for a sample from me, it will be free.
After-sale service
We can provide a series of after-sale service, such as product introduction, mounting, debugging, technical support and so on.
