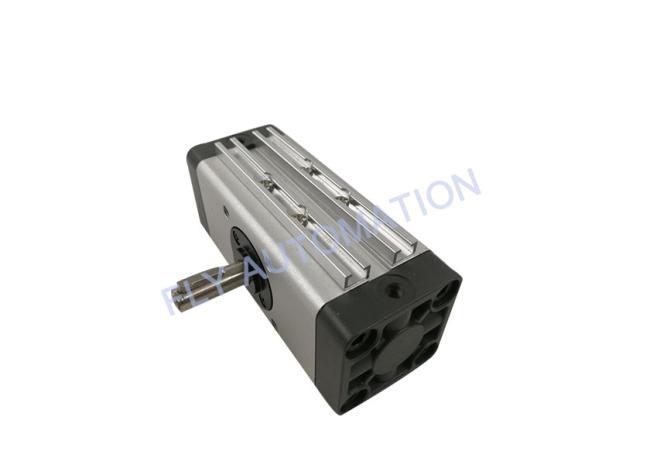

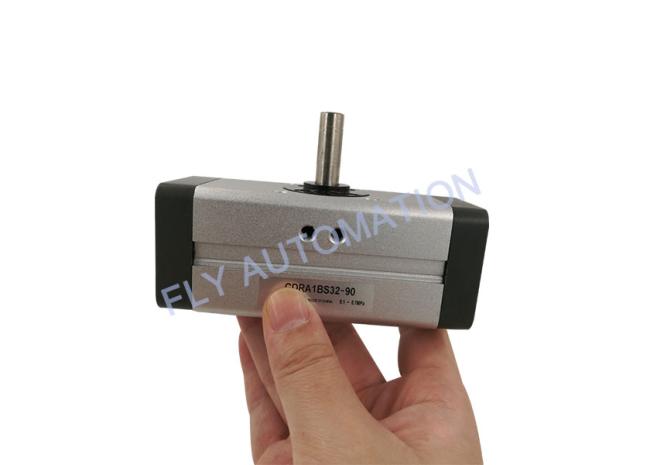

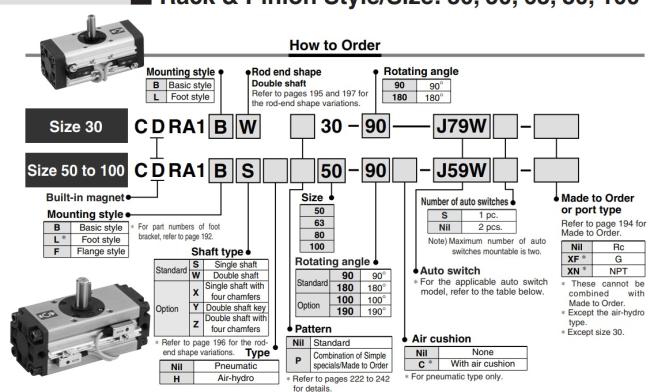

CDRA1BS32-90 Series CDRA1 SMC Air Cylinder Rotary Actuator Style / Size 30, 50, 63, 80, 100
Series CDRA1 SMC Air Cylinder Rotary Actuator Style/Size: 30, 50, 63, 80, 100
Specification
| Stype | Pneumatic | Air-hydro | ||||||||
| Size | 30 | 50 | 63 | 80 | 100 | 50 | 63 | 80 | 100 | |
| Fluid | Air(Non-lube) | Hydraulic oil | ||||||||
| Max. operating pressure | 1MPa | |||||||||
| Min. operating | 0.1MPa | |||||||||
| Ambient and fluid temperature | 0~60℃(No freezing) | |||||||||
| Cushion | None | With or without air cushion | None | |||||||
| Output(Nm) | 1.9 | 9.3 | 17 | 32 | 74 | 9.3 | 17 | 32 | 74 | |
| Allowable surge prssure | - | 1.5MPa | ||||||||
| Backlash | - | Within 1 | ||||||||
| Tolerance in rotating angle | - | +4 0 |
||||||||
Caution
No influence on cathode ray tubes by copper ion and fluorine resin. As standard models are already made applicable to copper free styles, they can be applied as they are.
If air pressure is applied from the A side of the direction indication label, the shaft rotates clockwise. If air pressure is applied from the B side, the shaft rotates counterclockwise.
Operation Principles
In the diagram below, switch B is ON. When pressure is applied from A, the piston moves to B,causing the shaft to rotate clockwise. At this time,magnet B goes out of the movement range of switch B, causing switch B to turn OFF.Furthermore, the piston moves to the right,causing magnet A to enter the movement range of switch A. As a result, switch A turns ON.
Allowable Kinetic Energy/Safe Range of Rotation Time
Mass/With Auto Switches and Solenoid Valves(KG)
| Size | Additional mass | |
| With 2 auto switches | With solenoid valve | |
| 30 | 0.1 | - |
| 50 | 0.2 | 0.2 |
| 63 | 0.4 | 0.2 |
| 80 | 0.6 | 0.2 |
| 100 | 0.9 | 0.2 |
Delivery
1. If the products we have in stock, we will send it out ASAP after payment.
2. If the products which were customized, we will complete the production within a specified period of time, and send it out the first time, we can promise it.
3. Also we can send by your delivery acount if you want.
4. We have a variety of ways to send goods, usually DHL, Fedex, TNT will be normal ways. If you require use of a courier, we can do it.
