Normally Closed Conductive 15mm Water Solenoid Valve 240v

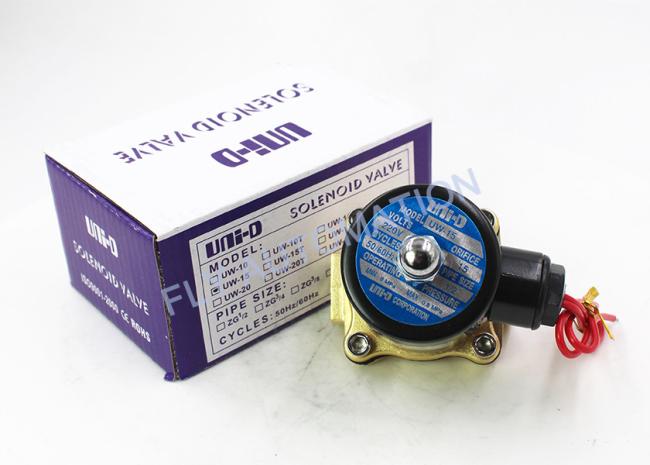

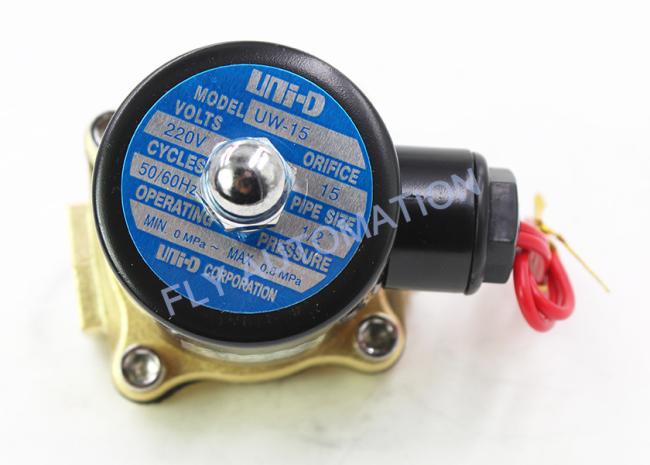

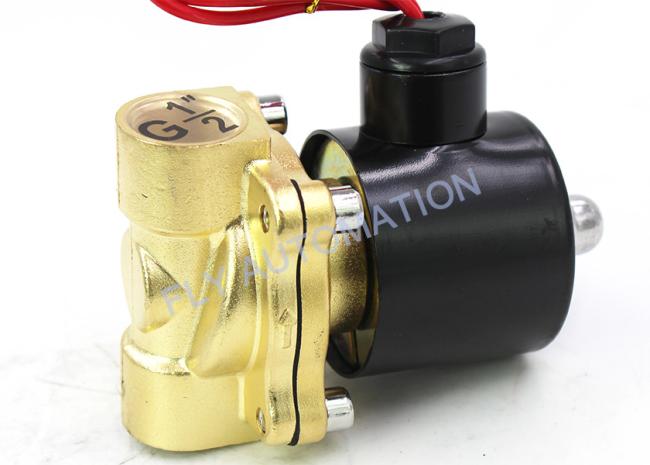

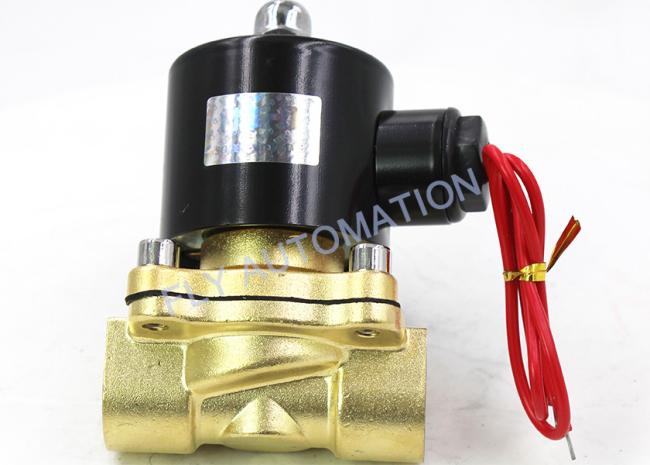

UNID UW-15 2W G1/2" 2/2Way AC220V Brass Water Solenoid Valves Normally Closed Conductive
PRODUCT DESCRIPTION
1. UW series is direct, multiplex, connected diaphragm, conductive and normally closed (NC)
2/2 way solenoid valve.
2. Able to be operated directly under low pressure
3. Availability of fluid type: water, air, light oil
4. Acceptable for customization Viton (130°C) , Silicone (130°C) and EPDM (130°C)
CAUTIONS:
1. Before pipelining, the pipe line must be very clean without any contaminants or any other
things not ought to be existed.
2. To prolong the life time of the product, Y-line filter should be installed in the front end of
solenoid valve.
3. AC voltage tolerance:土10%; DC voltage tolerance:土1%
4. It should be installed horizontally; vertical installation is not advisable.
| MODEL | Waterproof DIN/flying lead Coil | NASS DIN Coil (IP65) | PIPE SIZE | CV | ORIFICE | FLUID TEMP | Operating Pressure kgf / cm (bar) | High Pressure Type | Dimension (mm) | Weight (kg) | |||||
| Water | Air | Light oil | Water | Air | L | H | D | ||||||||
| UW-10 | ● | ● | 3/8" | 4.5 | 1 5mm | -5°C ~ +80°C | 0~5 | 0~7 | 0~5 | 0.5~10 | 0.5~20 | 70 | 100 | 48 | 1.01 |
| UW-15 | ● | ● | 1/2" | 4.5 | 1 5mm | -5°C ~ +80°C | 0~5 | 0~7 | 0~5 | 0.5~10 | 0.5~20 | 70 | 100 | 48 | 1 |
| UW-20 | ● | ● | 3/4" | 8.6 | 20mm | -5°C ~ +80°C | 0~5 | 0~7 | 0~5 | 0.5~10 | 0.5~20 | 73 | 107 | 48 | 1.14 |
| UW-25 | ● | ● | 1" | 24 | 25mm | -5°C ~ +80°C | 0~5 | 0~7 | 0~5 | 0.5~10 | 0.5~20 | 100 | 112 | 48 | 1.7 |
| UW-35 | ● | ● | 1 1/4" | 12 | 35mm | -5°C ~ +80°C | 0~5 | 0~7 | 0~5 | 0.5~10 | 0.5~20 | 125 | 113 | 48 | 2.32 |
| UW-40 | ● | ● | 1 1/2" | 28 | 40mm | -5°C ~ +80°C | 0~5 | 0~7 | 0~5 | 0.5~10 | 0.5~20 | 125 | 118 | 48 | 2.53 |
| UW-50 | ● | ● | 2" | 48 | 50mm | -5°C ~ +80°C | 0~5 | 0~7 | 0~5 | 0.5~10 | 0.5~20 | 167 | 125 | 48 | 4.32 |
PRODUCT D ESCRIPTION
1. UD series is direct-acting, conductive, and normally closed (NC) 2/2 way solenoid valve.
2. Able to be operated directly without pressure
3. Availability of fluid type: water, air, light oil, gas, vacuum
4. Acceptable for customization: Viton (130°C),Silicone (130°C) and EPDM (130°C)
CAUTIONS:
1. Before pipelining, the pipe line must be very clean without any contaminants or any other
things not ought to be existed.
2. To prolong the life time of the product, Y-line filter should be installed in the front end of
solenoid valve.
1. AC voltage tolerance:士10%; DC voltage tolerance:土1%
2. It should be installed horizontaly; vertical installation is not advisable.
After-sales clause:
One year quality guarantee Policy
We will check the goods quality before shipment. If there are some unexpected problems
happen, we hope to solve the problems with buyer through friendly in the following ways:
1, If it is quality problem, buyer can submit argue within 15days after receiving the goods,
buyer must provide photos or video and other evidence to seller for identify.
2, Man-made damaged, buyers take full responsibility.
