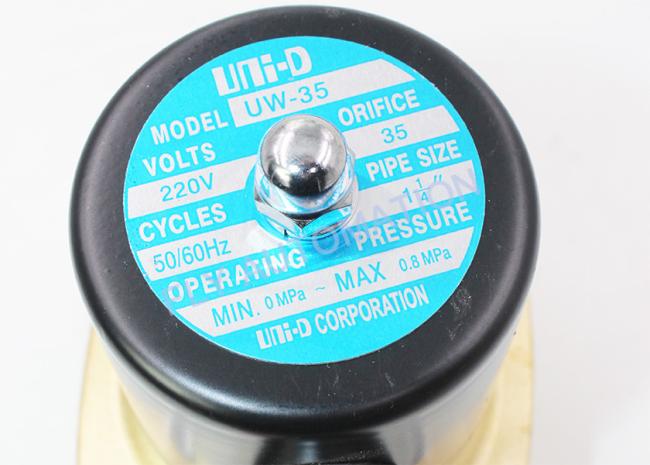

UNID 2W Water Solenoid Valves UW-35 G1 1/4" 2/2Way AC220V Normally Closed Conductive Brass




PRODUCT DESCRIPTION
1. UW series is direct, multiplex, connected diaphragm, conductive and normally closed (NC)
2/2 way solenoid valve.
2. Able to be operated directly under low pressure
3. Availability of fluid type: water, air, light oil
4. Acceptable for customization Viton (130°C) , Silicone (130°C) and EPDM (130°C)
CAUTIONS:
1. Before pipelining, the pipe line must be very clean without any contaminants or any other
things not ought to be existed.
2. To prolong the life time of the product, Y-line filter should be installed in the front end of
solenoid valve.
3. AC voltage tolerance:土10%; DC voltage tolerance:土1%
4. It should be installed horizontally; vertical installation is not advisable.
Not Suitalbe For Fluid As Below:
1. Liquid status when it is high temperature; solid status when it is cool.
2. Corrosive fluid
3. Viscosity over 20cst
