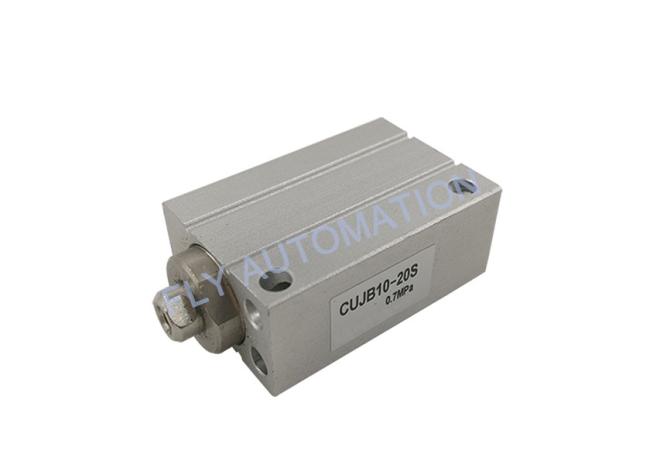

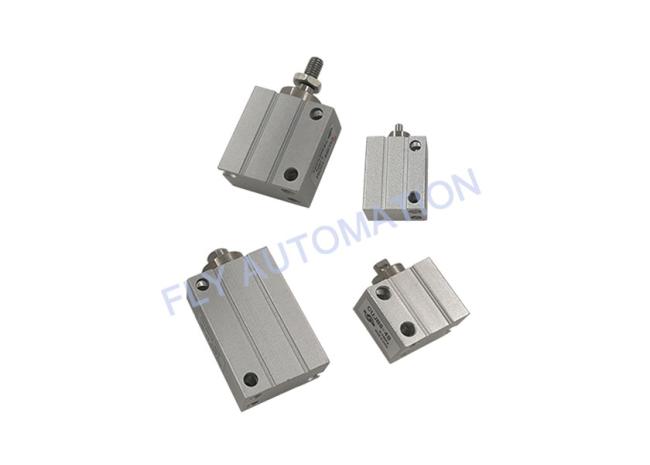

CUJB CUJ Series Mini Free Mount Cylinder SMC Pneumatic Air Cylinder
Price:
Negotiation
MOQ:
1 PCS
Delivery Time:
1-7 work days
Brand:
FLY
Product Description
CUJB CUJ Series Mini Free Mount Cylinder SMC Pneumatic Air Cylinder
Specifications:
| Bore size (mm) | 4 | 6 | 8 | 10 | |
| Action | Double acting; Single acting, spring return | ||||
| Fluid | Air | ||||
| Max. operating pressure | 0.7MPa | ||||
| Min. operating pressure | Double acting | 0.15MPa | 0.1MPa | ||
| Single acting, spring return | 0.35MPa | 0.3MPa | 0.2MPa | ||
| Proof pressure | 1.05MPa | ||||
| Ambient and fluid temperature | Without auto switch: –10 to 70°C (No freezing) With auto switch: –10 to 60°C (No freezing) |
||||
| Lubrication | Non-lube | ||||
| Piston speed | 50 to 500mm/s | ||||
| Cushion | None | ||||
| Stroke length tolerance | +0.5 0 |
||||
| Mouting | Through-hole | ||||
Weight :
| Weight: Double Acting | ||||||||||
| Bore size (mm) |
Standard stroke (mm) | Additional weight | ||||||||
| 4 | 6 | 8 | 10 | 15 | 20 | 25 | 30 | Built-in magnet | Rod end male threaded | |
| CUJB4 | 7.2 | 7.9 | 8.6 | 9.3 | 11.1 | 12.8 | - | - | - | 0.4 |
| CUJB6 | 12.4 | 13.6 | 14.8 | 16 | 18.9 | 21.8 | 24.7 | 27.6 | 2.7 | 0.8 |
| CUJB8 | 15.6 | 17 | 18.4 | 19.7 | 23 | 26.4 | 29.9 | 33.4 | 3 | 1.5 |
| CUJB10 | 17.9 | 19.4 | 20.8 | 22.3 | 25.9 | 29.5 | 33.1 | 36.7 | 3.2 | 2.6 |
| Weight: Single Acting, Spring Return | ||||||
| Bore size (mm) |
Standard stroke (mm) | Additional weight | ||||
| 4 | 6 | 8 | 10 | Built-in magnet | Rod end male threaded | |
| CUJB4 | 7.2 | 7.9 | - | - | - | 0.4 |
| CUJB6 | 12.8 | 14 | 15.2 | - | 2.4 | 0.8 |
| CUJB8 | 15.8 | 17.2 | 18.6 | 19.9 | 2.5 | 1.5 |
| CUJB10 | 17.9 | 19.4 | 20.8 | 22.3 | 2.4 | 2.6 |
| Standard Stroke | ||
| Action | Bore size (mm) | Standard stroke (mm) |
| Double acting | 4 | 4, 6, 8, 10, 15, 20 |
| 6 | 4, 6, 8, 10, 15, 20, 25, 30 |
|
| 8,10 | ||
| Single acting, spring return |
4 | 4, 6 |
| 6 | 4, 6, 8 | |
| 8,10 | 4, 6, 8, 10 | |
