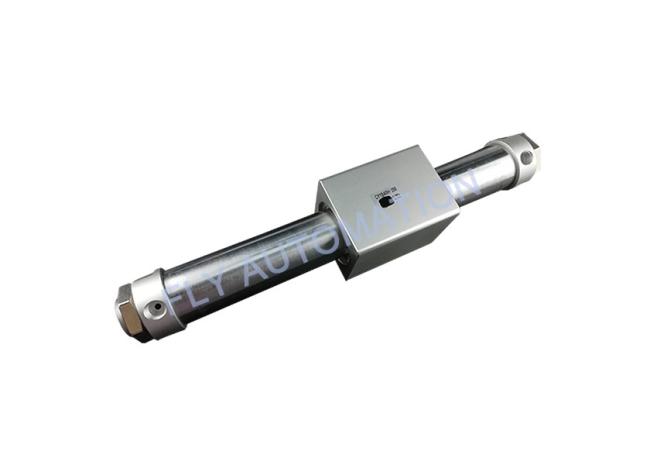

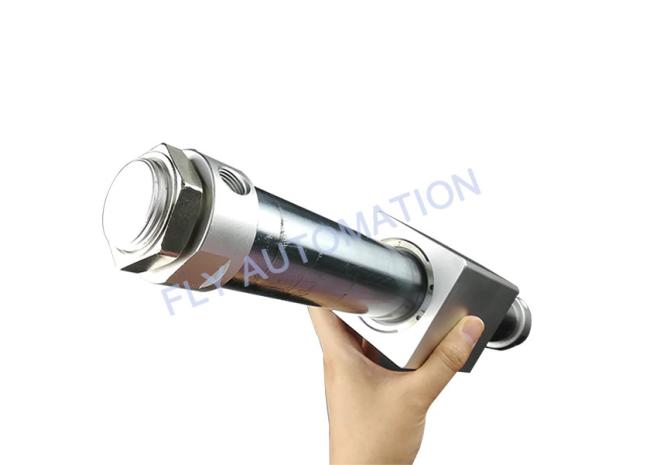

CY1B40H-200 Magnetically Coupled Rodless Cylinder SMC CY1B Series Pneumatic
CY1B40H-200 SMC CY1B Series Magnetically Coupled Rodless Pneumatic Cylinder

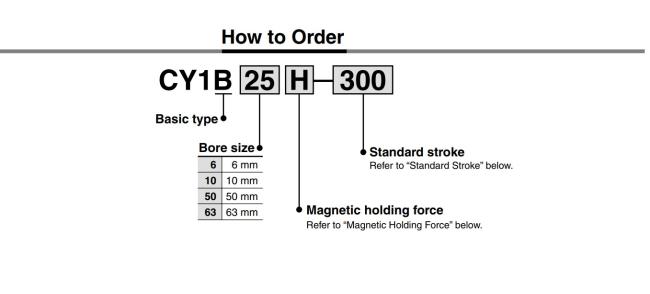

ø6, ø10, ø50, ø63
| Specifications | |
| Fluid | Air |
| Proof pressure | 1.05 MPa |
| Maximum operating pressure | 0.7 MPa |
| Minimum operating pressure | 0.18 MPa |
| Ambient and fluid temperature | –10 to 60°C |
| Piston speed | 50 to 400 mm/s |
| Cushion | Rubber bumper on both ends |
| Lubrication | Non-lube |
| Mounting orientation | Free |
| Mounting nuts (2 pcs.) | Standard equipment (Accessory) |
| Principal Parts Material | ||
| Description | Material | Note |
| Head cover | Aluminum alloy | Electroless nickel plated |
| Cylinder tube | Stainless steel | |
| Body | Aluminum alloy | Hard anodized |
| Magnet | Rare earth | |
| Standara Stroke | ||
| Bore size (mm) | Standara Stroke (mm) | Manufacturable maximum stroke (mm) |
| 6 | 50,100,150,200 | 300 |
| 10 | 50,100,150,200,250,300 | 500 |
| 50 | 100, 150, 200, 250, 300, 350, 400, 450,500, 600, 700, 800, 900, 1000 | 6000 |
| 63 | ||

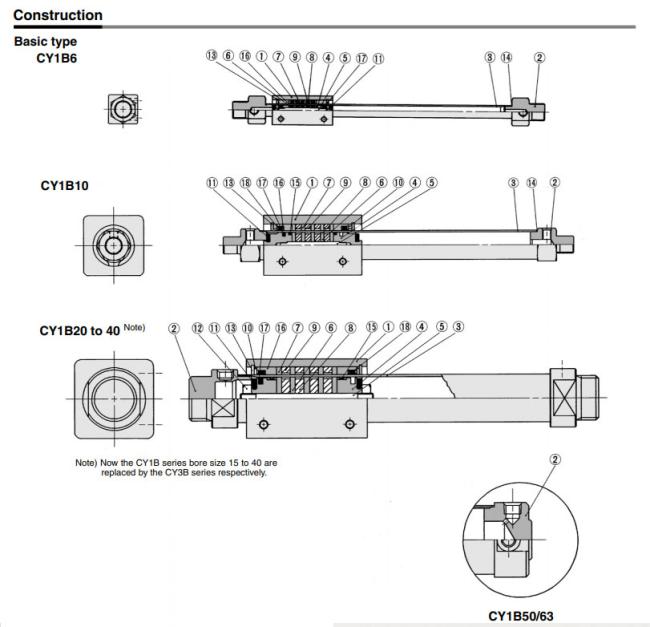

Component Parts
| No. | Description | Material | Note |
| 1 | Body | Aluminum alloy | Hard anodized |
| 2 | Head cover | Aluminum alloy | Electroless nickel plated |
| 3 | Cylinder tube | Stainless steel | |
| 4 | Piston | Aluminum alloy | Chromated |
| 5 | Shaft | Stainless steel | |
| 6 | Piston side yoke | Rolled steel | Zinc chromated |
| 7 | External slider side yoke | Rolled steel | Zinc chromated |
| 8 | Magnet A | Rare earth magnet | |
| 9 | Magnet B | Rare earth magnet | |
| 10 | Spacer | Rolled steel | Nickel plated |
| 11 | Bumper | Urethane rubber | |
| 12 | Piston nut | Carbon stee | Zinc chromated |
| 13 | Snap ring | Carbon tool steel | Nickel plated |
| 14 | Cylinder tube gasket | NBR | CY1B6: ø7 x ø5 x ø1 CY1B10: ø11 x ø9 x ø1 |
| 15 | Wear ring A | Special resin | The 6 mm bore cylinder is not available |
| 16 | Wear ring B | Special resin | |
| 17 | Piston seal | NBR | |
| 18 | Scraper | NBR | The 6 mm bore cylinder is not available. |
