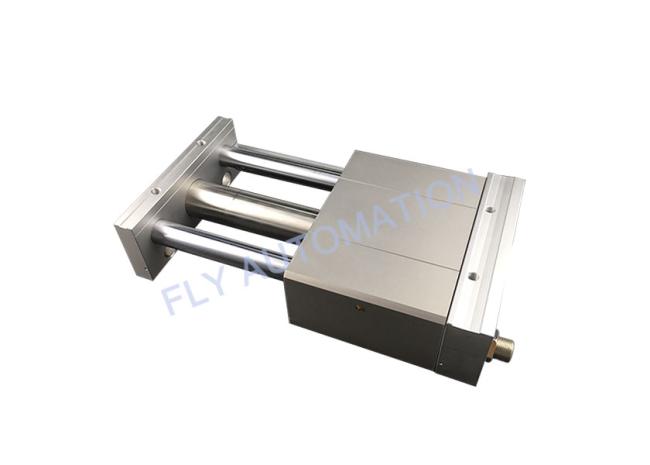

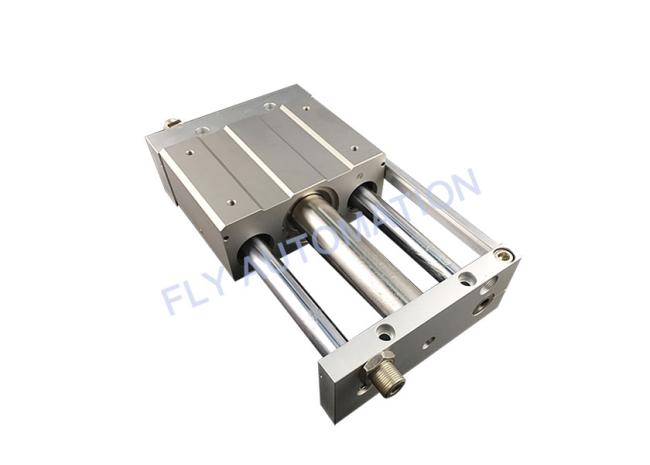

CY1L40H-150 Pneumatic Air Cylinders Magnetically Coupled Rodless Bushing Bearing SMC
CY1L40H-150 Magnetically Coupled Rodless Cylinder Bushing Bearing SMC Air Cylinder
Long life design
Ball bushings having excellent trafficability are used in the guides. Ball bushing bearing: With grease cup
Easy piping and wiring
Hollow shafts are used, and centralization of ports on one side makes piping easy. Auto switches can be mounted through the use of special switch rails.
Shock absorbers and adjustment bolt are standard equipment
Impacts at stroke end due to high speed use can be absorbed, and fine adjustment of the stroke is possible.

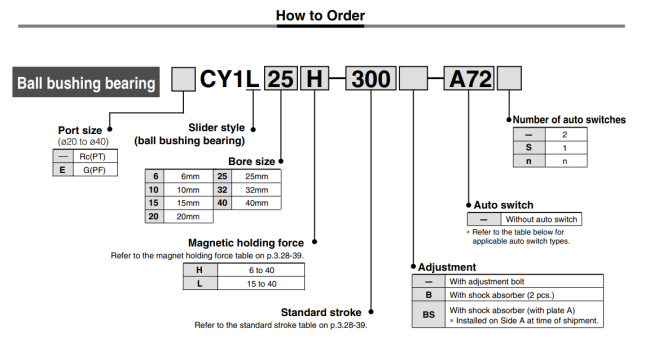

| Models | |||||
| Style | Bearing style | Model | Bore size (mm) | With auto switch | Adjustment style |
| Slider style | Ball bushing | CY1L | 6, 10, 15, 20, 25, 32, 40 |
D-A7/A8 D-F7/J7 |
Adjustment bolt Shock absorber |
| Specifications | ||||
| Fluid | Air | |||
| Proof pressure | 1.05MPa | |||
| Maximum operating pressure | 0.7MPa | |||
| Minimum operating pressure | 0.18MPa | |||
| Ambient and fluid temperature | –10 to 60°C | |||
| Piston speed (1) | 50 to 1000mm/s | |||
| Cushion | Shock absorber/Rubber bumper | |||
| Lubrication | Non-lube | |||
| Stroke length tolerance | Unrestricted | |||
| Standard equipment | Auto switch mounting rail | |||
| Standard Stroke | |||||
| Bore size (mm) |
Standard stroke (mm) | Maximum availablestroke (mm) |
|||
| 6 | 50, 100, 150, 200 | 300 | |||
| 10 | 50, 100, 150, 200, 250, 300 | 500 | |||
| 15 | 50, 100, 150, 200, 250, 300, 350 400, 450, 500 |
750 | |||
| 20 | 100, 150, 200, 250, 300, 350 400, 450, 500, 600, 700, 800 |
1000 | |||
| 25 | 1500 | ||||
| 32 | |||||
| 40 | 100, 150, 200, 250, 300, 350 400, 450, 500, 600, 700, 800 900, 1000 |
1500 | |||
