Brass AIRTAC 2V250-25 Fluid Control Valve 2/2 Way DC12V 24V AC220V
Price:
Negotiation
MOQ:
1 PC
Delivery Time:
7 working Days
Brand:
AIRTAC
Product Description
AIRTAC 2V250-25 Brass Fluid Control Valve 2/2 Way DC12V,24V,AC220V Solenoid Valves
Fluid control valve
2V SERIES
We have various models. No matter what model you need, please feel free to contact me.
If you have any questions about the price, you can contact me at any time.
Specification
Please note that we are selling factory direct products. All our products are 100% brand new
Please tell me the voltage you need in the remark
DC12V,DC24V
AC110V,AC220V

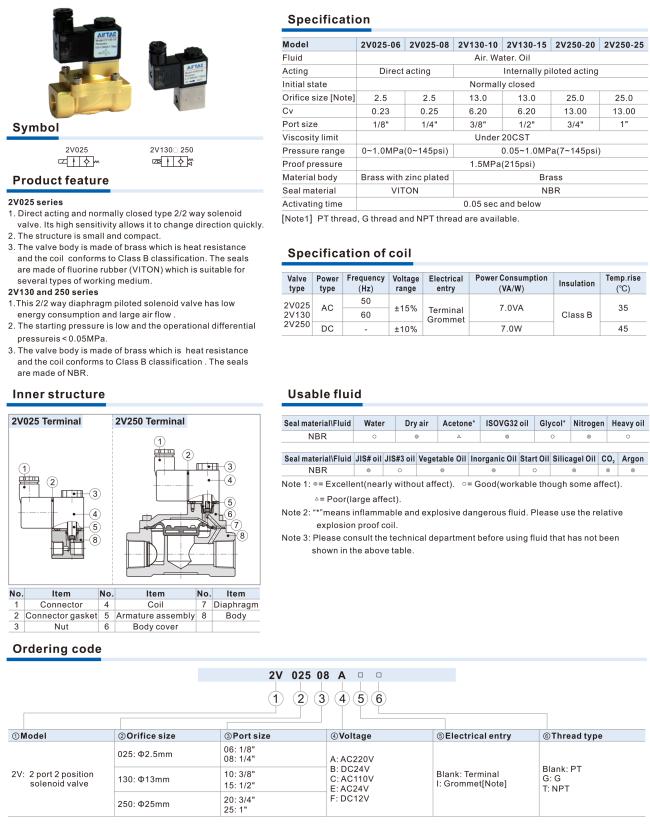

Specifications:
| Model | 2V250-20 | 2V250-25 |
| Fluid | Air, Water, Oil | |
| Operation | Guide Type | |
| Type | Normal Close Type | |
| Aperture of fl ow rate | 25 | |
| Cv value | 23 | |
| Port size | G3/4'' | G1″ |
| Operation fluid viscosity | 20 CST Below | |
| Operation pressure | Air, Water, Oil: 0.05 ~ 0.7MPa | |
| Max.Proof pressure | 1.0MPa | |
| Operation temperature | -10 ~ +80C | |
| Voltage range | ±10% | |
| Proterction grade | IP65 | |
| Power consumption | AC:7VA/60Hz, 9VA/50Hz ; DC:6W | |
| Insulation | F Class | |
| Metarial of body | Brass | |
| Material og oil seal | NBR | |
| Shortest excitation time | 0.05 Second | |
| Model | 2V025-06 | 2V025-08 | 2V130-10 | 2V130-15 | 2V250-20 | 2V250-25 |
| Orifice size [Note] | 2.5 | 2.5 | 13.0 | 13.0 | 25.0 | 25.0 |
| Cv | 0.23 | 0.25 | 6.20 | 6.20 | 13.00 | 13.00 |
| Port size | 1/8" . | 1/4" | 3/8" | 1/2" | 3/4" | 1" |
| Viscosity limit | Under 20CST | |||||
| Pressure range | 0~1.0MPa(0~ 145psi) | 0.05~1.0MPa(7~145psi) | ||||
| Proof pressure | 1.5MPa(215psi) | |||||
| Seal material | VITON | NBR | ||||
| Material body | Brass with zinc plated | Brass | ||||
| Activating time | 0.05 sec and below | |||||
Description:
- With solenoid operated for control appropriate flow and direction, provide great performance.
- Stury body have a long lifespan, perfect for electrically driven pneumatic power control.
