0927300 Pneumatic Solenoid Valves 3/4'' Dn20 230 Psi 16 Bar Dc24v
Price:
Negotiation
MOQ:
1 PC
Delivery Time:
7 working Days
Brand:
TECHNO
Product Description

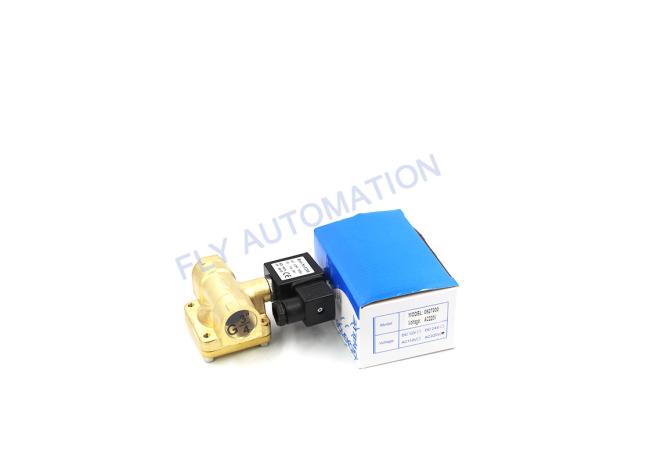

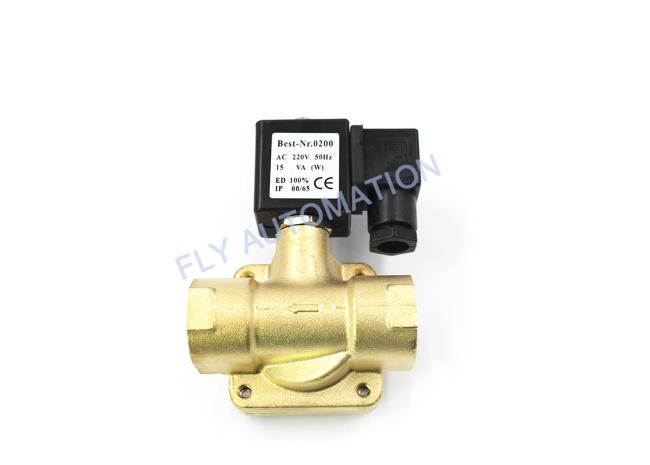

0927300 High Quality 3/4'' DN20 230 PSI (16 BAR) DC24V Normally Closed Electric Solenoid Diaphragm Valve
Please note that we are selling factory direct products. All our products are 100% brand new in manufacturer's packaging.
2 Position 2 Way Electric Solenoid Water Diaphragm Valve
Description:
Maximum working pressure:1.6MPa
Automatic; free maintenance;
Waterproof(IP65), Shake-proof, Energy-saving, Environment-friendly;
Forging brass valve,
Easy installation;
Working Voltage:DC24V
Port Size:G3/4''
Weight: 800g
| MODEL | 0927000 | 0927200 | 0927300 | 0927400 | 0927500 | 0927600 | 0927700 |
| PORT SIZE | G1/4'' | G1/2'' | G3/4'' | G1'' | G 1 1/4'' | G1 1/2'' | G2'' |
| BORE(mm) | 8 | 12 | 20 | 25 | 32 | 40 | 50 |
| KV VALUE | 1.15 | 1.70 | 5.1 | 5.35 | 20.0 | 25.0 | 43.0 |
| WEIGHT(kg) | 0.70 | 0.70 | 1.20 | 1.30 | 2.70 | 2.70 | 3.50 |
| PRESSURE | 0.07~1.6MPa | 0.1~1.6MPa | |||||
| MEDIUM | AIR,WATER(OIL,STEAM) | ||||||
| TYPE | NORMAL CLOSED | ||||||
| BODY MATERIAL | BRASS | ||||||
| SEAL MATERIAL | NBR/VITON(SILICAL) | ||||||
| TEMPERATURE | NBR:-5~80C (VITON:-20~150C) | ||||||
| COIL | 0200 DIN43650A | ||||||
| MODEL | PIPE NOMINAL | THREADDIAMETER | FLOW DIAMETER | L | W | H |
| 927200(DN15) | G1/2" | 20mm | 1 5mm | 54mm | 40mm | 1 04mm |
| 927300(DN20) | G3/4" | 25mm | 20mm | 82mm | 52mm | 117mm |
| 927400(DN25) | G1" | 32mm | 25mm | 83mm | 55mm | 1 19mm |
| 927500(DN32) | G1-1/4" | 40mm | 3 2mm | 1 14mm | 82mm | 1 28mm |
| 927600(DN40) | G1-1/2" | 48mm | 40mm | 122mm | 98mm | 133mm |
| 927700(DN50) | G2" | 58mm | 50mm | 1 50mm | 110mm | 1 46mm |
