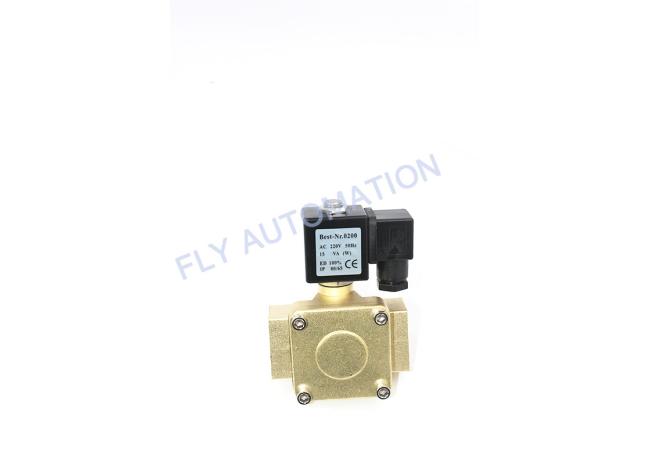

0927400 1'' Diaphragm Pneumatic Solenoid Valve 24vdc 1.6MPa Normally Closed
0927400 High Quality 1'' Diaphragm Solenoid Valve 1.6MPa Normally closed DC12V,DC24V or AC110V,AC220V
Model: 0927 Series
Pipe size:1/4", 3/8", 1/2”, 3/4”, 1”, 1-1/4”, 1-1/2”, 2”
Thread: BSP
Media: water, gas, Oil
Type:
Normally closed (closed when de-energizes, open when energized)
Normally Opene (opened when de-energizes, closed when energized)
Working pressure : 1-16bar
Operating: Pilot
Voltage: AC220V/AC24V/DC24V/DC12V
Materail: Brass
Seal: NBR (Medium temperature: -5-80 Degree Centigrade)
Description:
Maximum working pressure:1.6MPa
Automatic; free maintenance;
Waterproof(IP65), Shake-proof, Energy-saving, Environment-friendly;
Forging brass valve,
Easy installation;
Working Voltage:DC12V
Port Size:G1''
Weight: 900g
| MODEL | 0927000 | 0927200 | 0927300 | 0927400 | 0927500 | 0927600 | 0927700 |
| PORT SIZE | G1/4'' | G1/2'' | G3/4'' | G1'' | G 1 1/4'' | G1 1/2'' | G2'' |
| BORE(mm) | 8 | 12 | 20 | 25 | 32 | 40 | 50 |
| KV VALUE | 1.15 | 1.70 | 5.1 | 5.35 | 20.0 | 25.0 | 43.0 |
| WEIGHT(kg) | 0.70 | 0.70 | 1.20 | 1.30 | 2.70 | 2.70 | 3.50 |
| PRESSURE | 0.07~1.6MPa | 0.1~1.6MPa | |||||
| MEDIUM | AIR,WATER(OIL,STEAM) | ||||||
| TYPE | NORMAL CLOSED | ||||||
| BODY MATERIAL | BRASS | ||||||
| SEAL MATERIAL | NBR/VITON(SILICAL) | ||||||
| TEMPERATURE | NBR:-5~80C (VITON:-20~150C) | ||||||
| COIL | 0200 DIN43650A | ||||||
| MODEL | PIPE NOMINAL | THREADDIAMETER | FLOW DIAMETER | L | W | H |
| 927200(DN15) | G1/2" | 20mm | 1 5mm | 54mm | 40mm | 1 04mm |
| 927300(DN20) | G3/4" | 25mm | 20mm | 82mm | 52mm | 117mm |
| 927400(DN25) | G1" | 32mm | 25mm | 83mm | 55mm | 1 19mm |
| 927500(DN32) | G1-1/4" | 40mm | 3 2mm | 1 14mm | 82mm | 1 28mm |
| 927600(DN40) | G1-1/2" | 48mm | 40mm | 122mm | 98mm | 133mm |
| 927700(DN50) | G2" | 58mm | 50mm | 1 50mm | 110mm | 1 46mm |
Note 1 :
Normally closed: It will be open when power on,and close when power off.
Normally open:it will be closed when power on,and open when power off.
электромагнитный клапан игольчатый кран solenoid valve кран шаровый Клапан клапан электромагнитн
ый Valve термостатический клапан
Note 2 :
The weight of DN50 exceeds 2.5kg. When shipped, the valve body and coil will be split into 2 packages to
reduce the transportation cost.You need to assemble it by yourself when receive it. It is simple.If you need the
whole in one delivery, please choose fast logistics or contact us.
Note 3 :
Temperature selection instructions:
Max. 80oC/ 176 oF :
The oil seal material is NBR (nitrile butadiene rubber)
Features: excellent oil resistance, high wear resistance and good heat resistance
Max. 120 oC / 248 oF:
The oil seal material is VITON (Fuororubber).
Features: high temperature resistance, chemical resistance, corrosion resistance, suitable for chemical
media.
