PU225-06 AC220V Low Pressure Water Solenoid Valve Air Pneumatic Steam

Price Negotiable
Price: Negotiation
MOQ: 1 PC
Delivery Time: 7-10 working Days
Brand: SHAKO
Product Description

PU225-06 AC220V Brass Electric Water Solenoid Valve Low Pressure Air Water Pneumatic Steam On Best Sale Sanmin SHAKE

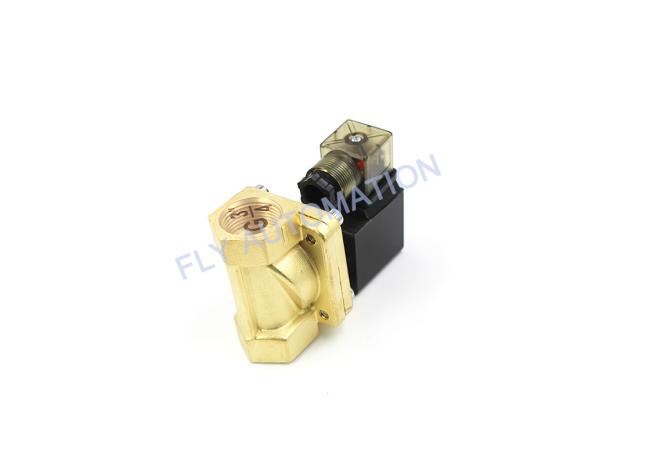

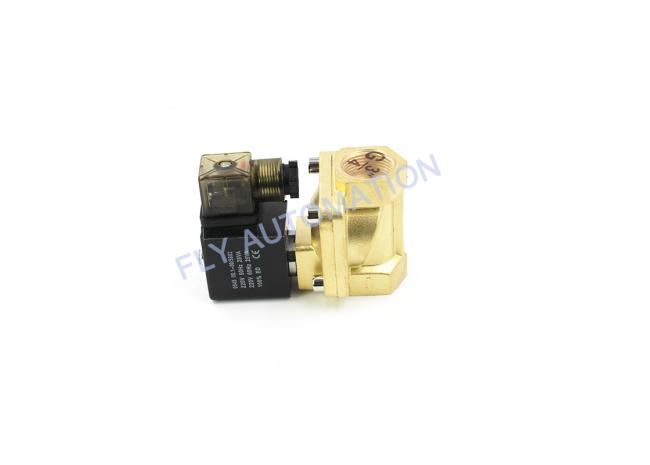

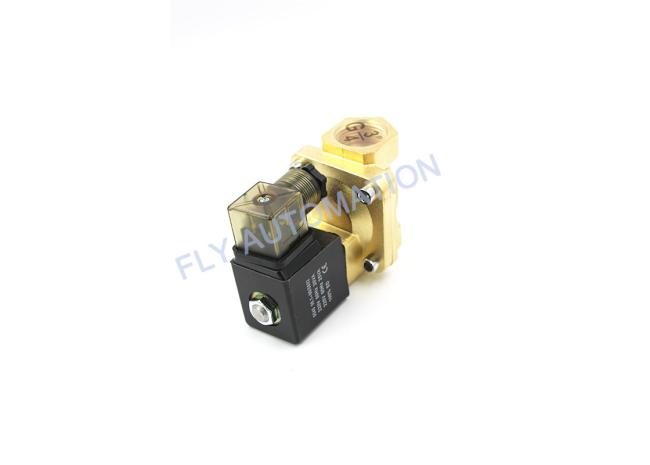

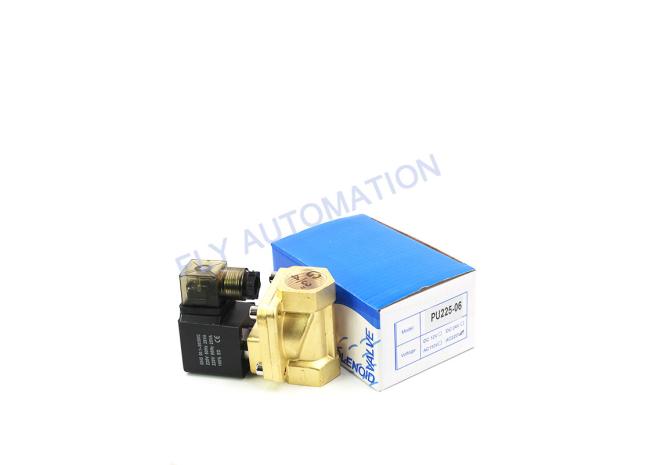

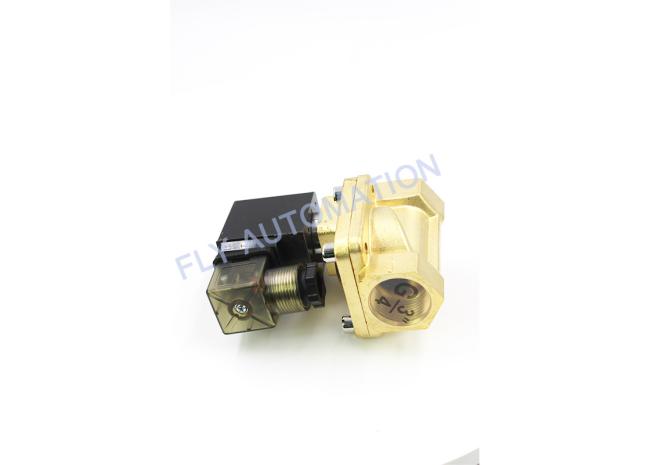

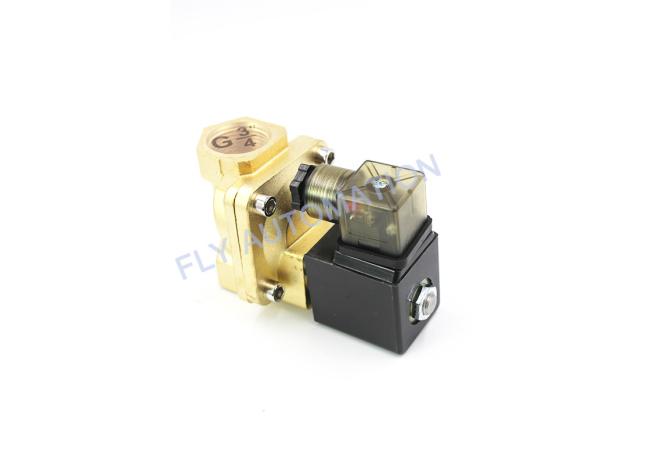

PU225 series solenoid valve, it is 2/2way, internal piloted type. It can be equipped with timer to control water drain timely. IP65, Insulation F class.


Specification:



Model PU225-03 PU225-04 PU225-06 PU225-08
Orifi ce Size(mm) 13mm 13mm 25mm 25mm
CV Value 4.5 4.5 12 12
Port Size G3/8" G1/2" G3/4" G1'
Fluid Compressed Air,Water,Light oil (Below 50CST)
Operation Pilot Operated
Material of body Brass
Operation-pressure(kg/cm2) 0.5~10kgf/cm2
Max. Pressure 15kgf/cm2
Diaphragm Type NBR or VITON
Temperature Range NBR for –5-80°C; VITON for –5-150°C
Ambient Temperature -20°C~60°C
Power Consumption 22VA
lnstallation Horizontal or Slant
Coils Type DIN Type
Voltage Tolerance ±10%
Protection Degree IP65
Insulation F
Standard Voltage Standard: DC24, AC220V, AC110V, 50/60HZ Especial: DC12V, AC24V, AC380V
