NORNREN 3050 Electromagnetic Induction Coil 24V DC 1.8W Heidelberg Pneumatic
NORNREN 3050 Coil 24V DC 1.8W Heidelberg Pneumatic Electromagnetic Induction Coil
Fitted for Norgren 97100 Narmur, 3/2 & 5/2 Indirect solenoid actuated spool valves
Suitable for 26230 , 80100 series solenoid valves
Fitting for Heidelberg print machine solenoid valve 2625483
| Voltage: DC 24V |
| Power Consumption : 1.8 Watt |
| Rated Current: 70 mA |
| Protection Class: IP65(With connector) |
| Temperature Ambient Media: -15 to +50 ℃ |
| Electrical connection: DIN43650B EN175301-803. |
| Weight: 0.1 kg |

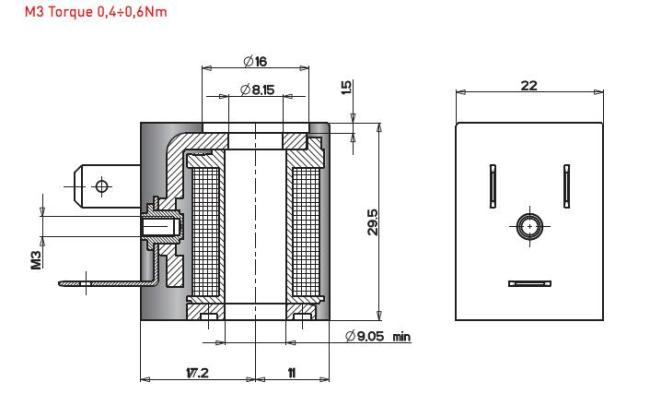

| Drawing No. 11 |
| Circuit diagragm No. 1 |
| Model: 3050 |
All coils feature:
1. Heat resistant bobbin moulded with 30% glass filled thermoplastic polyester material
2. Class H wire 200°c according to lEC 60317-13
3. Built-in magnetic yoke made by low carbon iron
4. Encapsulation with high quality specially designed glass filled nylon
5. Copper and plastic material used are UL-Listed
The use of other materials is possible upon special agreements.Coils are rated to class F.The coil is designed and
constructed in accordance to EN 60204.1 and VDEO580 and it is suitable for industrial ambient conditions.For use in special ambients with high humidity, we suggest the sealed or thermoset version; please refer to kit for humid application.

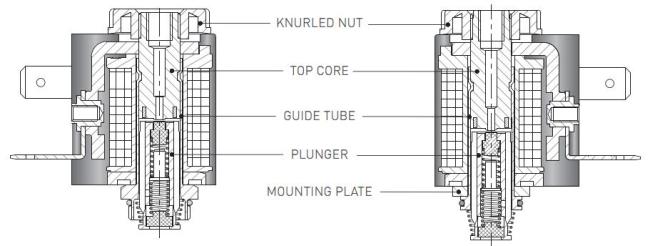

The coil is fastened to the solenoid operator by means of a knurled nut for ease of change over without interrupting the pneumatic circuit.
