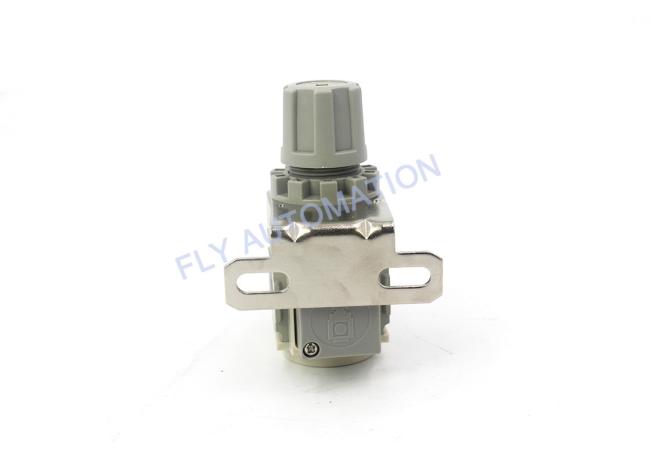

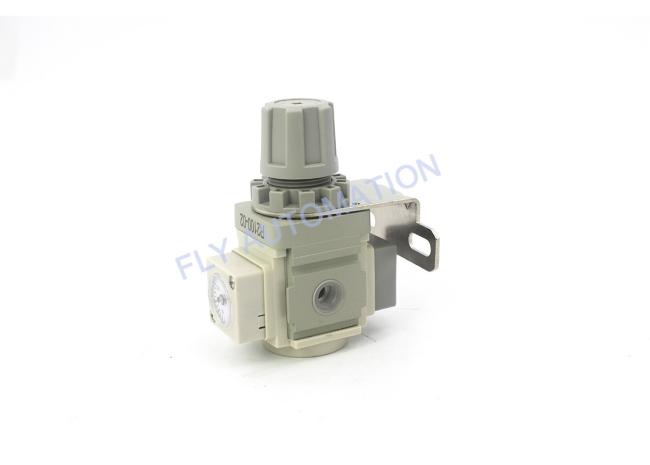

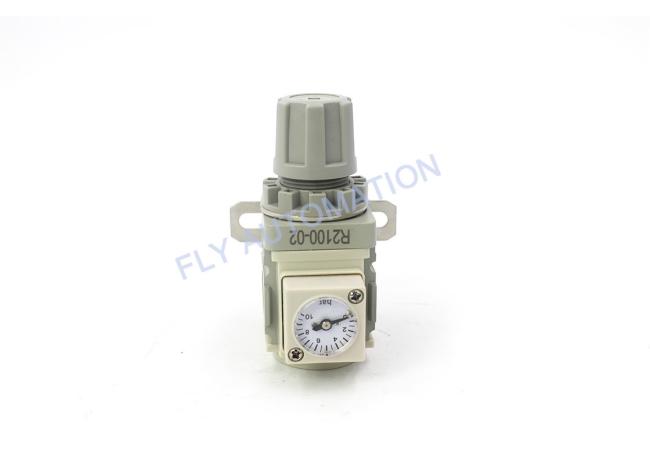

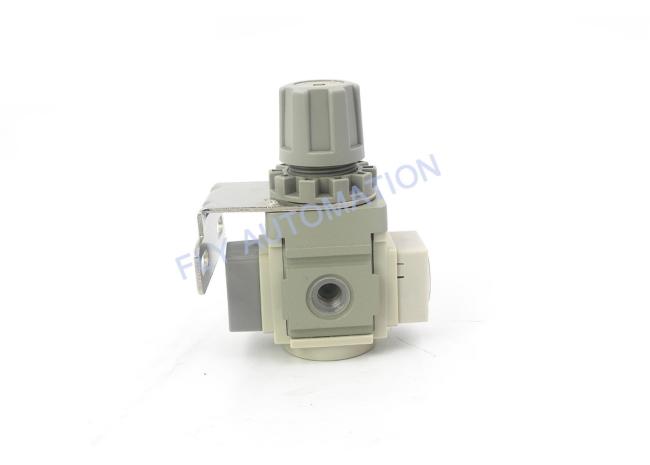

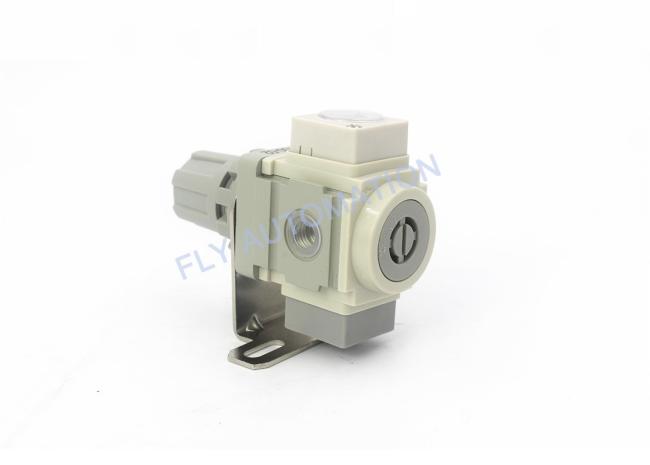

CKD R2100-W G1/8 To 1 Reverse Regulator Air Preparation Unit R1100W R3100W R4100W R6100W R8100W
CKD R2100-W G1/8 to 1 Reverse Regulator Air Preparation Unit R1100W R3100W R4100W R6100W R8100W

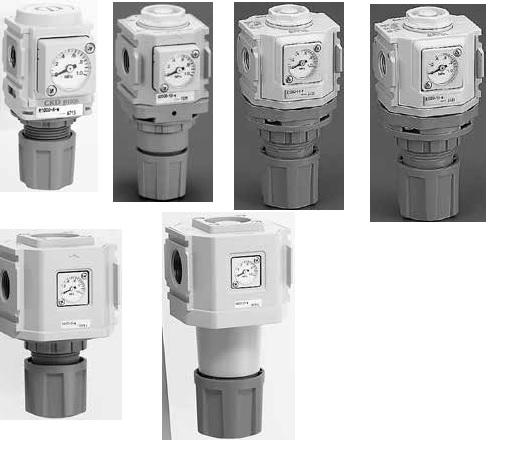

Reverse Regulator Standard white Series
R1100W ,R2100W , R3100W
R4100W, R6100W, R8100W
From secondary pressure to primary side with reverse flow function built in.
Port Size: 1/8 to 1
Functions
When the primary pressure is introduced from the lN side,the check valve functions as a regular regulator because it closes with primary pressure and spring load.When primary pressure is released by a switching valve such as a residual pressure exhaust valve, the check valve opens with secondary pressure. Pressure in the diaphragm chamber is released and pressure drops.This causes the diaphragm to be pressed down by the pressure adjustment spring. The main valve (valve assembly) opens, and the air on the OUT side is discharged.

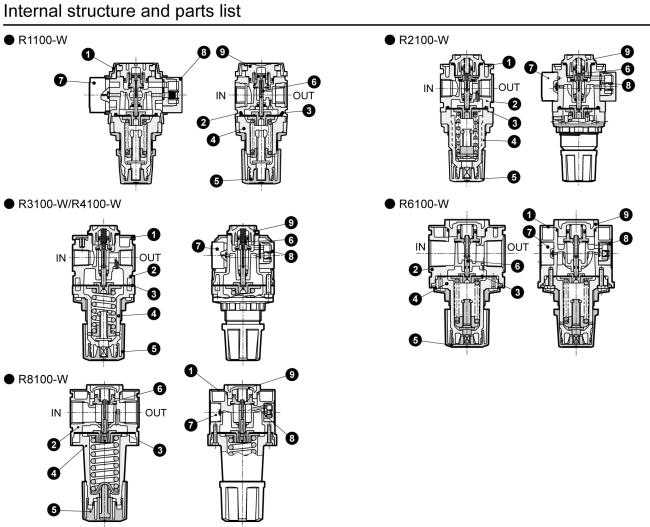

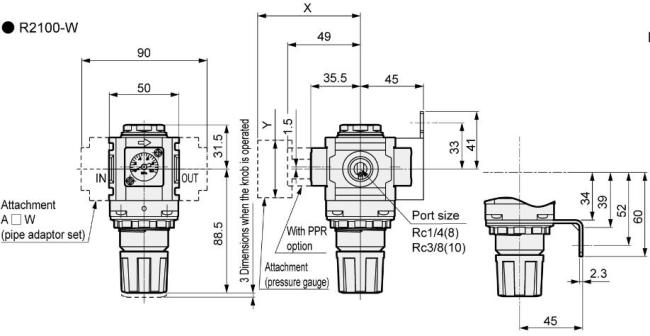

| No. | Part name | Materials | |||||
| R1100-W | R2100-W | R3100-W | R4100-W | R6100-W | R8100-W | ||
| 1 | Plate cover | ABS resin | |||||
| 2 | Body | PA resin, steel | Aluminum alloy die-casting | ||||
| 3 | Diaphragm assembly | Polyacetal resin nitrile rubber | Zinc alloy die-casting, nitrile rubber | ||||
| 4 | Cover | Polyamide resin | PBT resin | Aluminum die-cast | |||
| 5 | Knob | Polyacetal resin | |||||
| 6 | Valve assembly | Copper alloy, hydrogenated nitrile rubber (polyacetal resin: R2100-W, R3100-W, 4100-W, 8100-W) | |||||
| 7 | Pressure gauge assembly | PBT resin, nitrile rubber, polyacetal resin, polycarbonate resin, copper alloy, copper | |||||
| 8 | Check valve total assembly | PBT resin, nitrile rubber, stainless steel wire, steel | |||||
| 9 | Bottom plug | Polyacetal resin | Aluminum alloy die-casting | ||||
| Item | R1100-W | R2100-W | R3100-W | R4100-W | R6100-W | R8100-W |
| Working fluid | Compressed air | |||||
| Max. working pressure MPa | 1.0 (≈150 psi, 10 bar) | |||||
| Proof pressure MPa | 1.5 (≈220 psi, 15 bar) | |||||
| Ambient / fluid temperatures °C | 5 (41°F) to 60 (140°F) *2 | |||||
| Set pressure (*1) MPa | 0.05 (≈7.3 psi, 0.5 bar) to 0.85 (≈120 psi, 8.5 bar) | |||||
| Pressure relief | With relief mechanism | |||||
| Port size Rc,NPT,G | 1/8,1/4 (3/8 uses an adaptor) |
1/4,3/8 (1/2 uses an adaptor) |
1/4,3/8 (1/2 uses an adaptor) |
1/4,3/8,1/2 (3/4 uses an adaptor) |
3/4,1 (1 1/4 uses an adaptor) |
3/4,1 (1 1/4 uses an adaptor) |

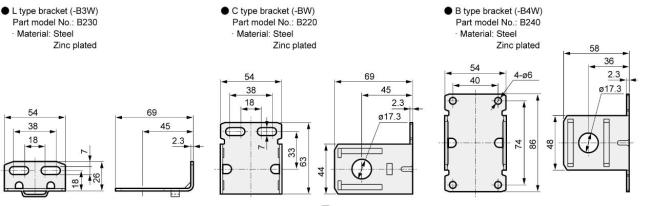

| Weight kg | 0.16 | 0.31 | 0.45 | 0.7 | 1.0 | 1.6 |
| Standard accessories | Pressure gauge, nut for panel mount | Pressure gauge | ||||
