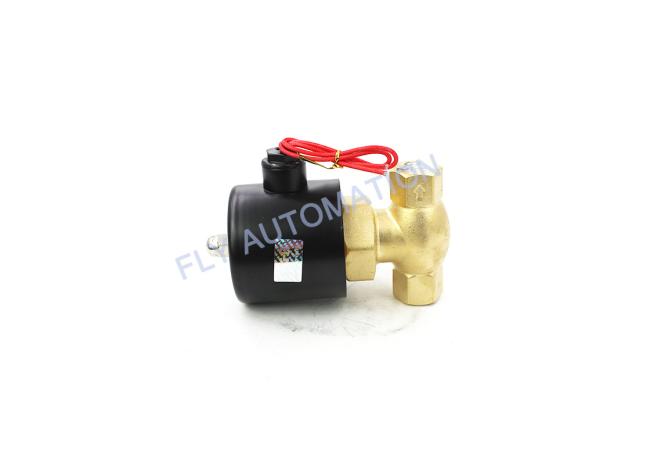

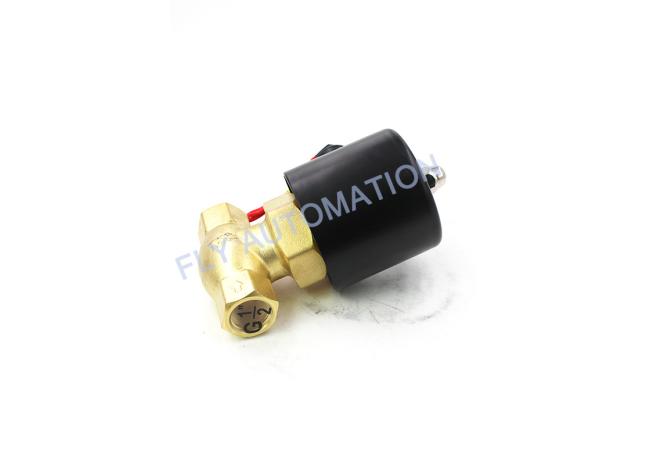

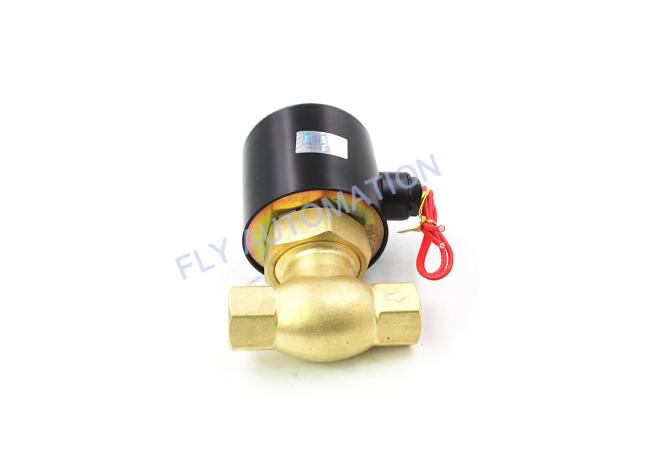

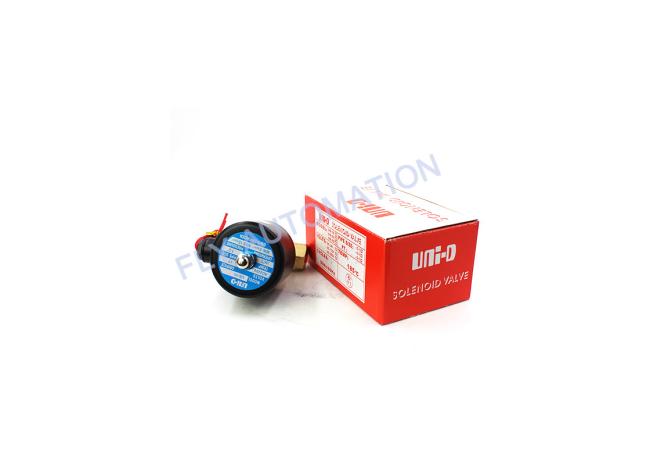

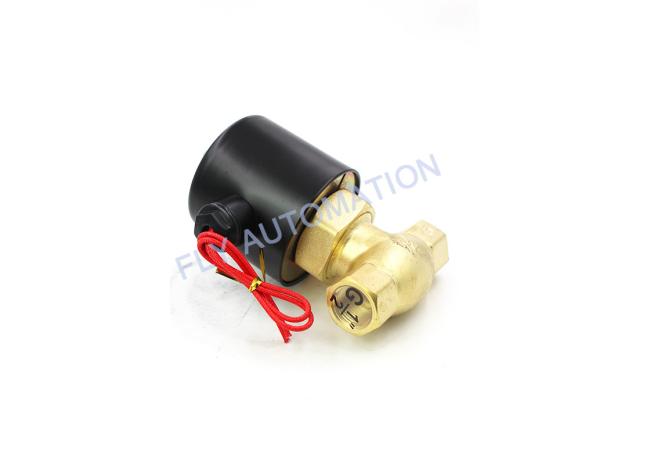

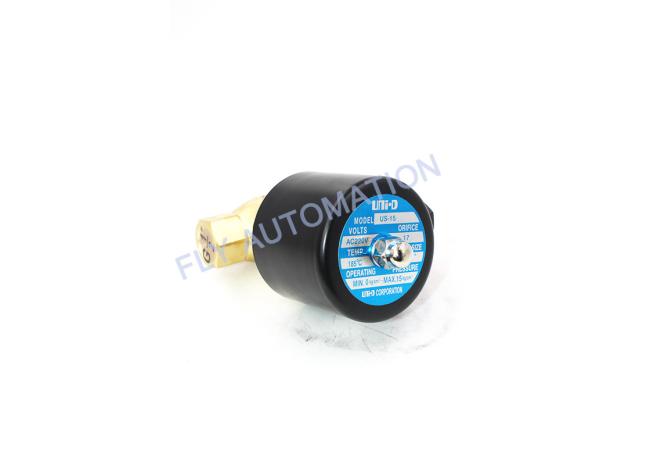

UNID US-15-50 US Series Normally Closed Water Valve
UNID US-15-50 US Series Normally Closed High-Temperat Brass Control Fluid Flow Water Solenoid Valve

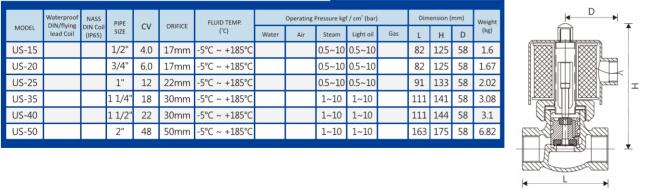

| MODEL | Waterproof DIN/flying lead Coil | NASS DIN Coil (IP65) | PIPE SIZE | CV | ORIFICE | FLUID TEMP | Operating Pressure kgf I cm' (bar) | Vacuum (Torr) | Dimension (mm) | Weight (kg) | |||||
| Water | Air | Light oil | Gas | L | H | D | |||||||||
| US-15 | 1/2” | 4 | 17mm | -5*C~ +185*C | 0.5~10 | 0.5~10 | 82 | 125 | 58 | 1.6 | |||||
| US-20 | 3/4" | 6 | 17mm | -5°C- +185*C | 0.5~10 | 0.5~10 | 82 | 125 | 58 | 1.67 | |||||
| US-25 | 1" | 12 | 22mm | -5*C~ +185"C | 0.5~10 | 0.5~10 | 91 | 133 | 58 | 2.02 | |||||
| US-35 | 1 1/4" | 18 | 30mm | -5"C~ +185'C | 1~10 | 1~10 | 111 | 141 | 58 | 3.08 | |||||
| US-40 | 1 1/2" | 22 | 30mm | -5*C- +185*C | 1~10 | 1~10 | 111 | 144 | 58 | 3.1 | |||||
| US-50 | 2" | 48 | 50mm | -5"C- +185*C | 1~10 | 1~10 | 163 | 175 | 58 | 6.82 | |||||
| PARTS | Coil | Tube | Spring | Core | Plug | Piston | Piston plug | Valve body |
| MATERIAL | Special copper wire (H class) | Stainless steel | Stainless steel | Stainless steel | PTFE +15%GF | Brass | PTFE | Cast BRONZE |
After-sales clause:
One year quality guarantee Policy
We will check the goods quality before shipment. If there are some unexpected problems
happen, we hope to solve the problems with buyer through friendly in the following ways:
1, If it is quality problem, buyer can submit argue within 15days after receiving the goods,
buyer must provide photos or video and other evidence to seller for identify.
2, Man-made damaged, buyers take full responsibility.
3, Product quality processing program:
1) The buyer return the products for bad quality reasons for one year (not included those
damages coursed by shipping or Man-made damaged ). A 15% restocking fee is
assessed for any products returned in "used" condition. And then we will send a new
product to buyer and pay for the resend shipping cost.
2) If the goods (total price including shipping is less than 10USD) has quality problems, we
will resend a new product in buyer next order; if buyer don't plan to make a new order in
the near term, buyer can pay the resend shipping cost and ask to resend a new product. If
there is an issue with the products, please contact us– we will solve it as soon as we get
your email.
