5404-04 1/2'' Solenoid Water Valve High Pressure Brass Normally Closed
Price:
Negotiation
MOQ:
1 PC
Delivery Time:
7 working Days
Brand:
BURKERT
Product Description
5404-04 Free Shipping 1/2'' High-pressure Brass Normally closed Solenoid Water Valve
Description:
Two position, two way, normal close switch, magnetic solenoid water valve.
Should be installed in the horizontal tube keep upward.
Used to control automatically the liquid and gas in the pipeline
5404-02 Orifice : 8mm Port connection: 1/4"
5404-04 Orifice : 12 mm Port connection: 1/2"
5404-06 Orifice : 20mm Port connection: 3/4"
5404-08 Orifice : 25mm Port connection: 1"
| Port connection D | Orifice[mm] | A | B | F | E | L | A/F |
| NPT 1/2 | 12 | 83 | 96.5 | 14 | 32 | 65 | 27 |
| NPT 3/4 | 20 | 93 | 109 | 16 | 60 | 100 | 32 |
| NPT 1 | 25 | 99.5 | 119 | 18 | 70 | 115 | 41 |
| Product NO. | 5404 |
| Product type | 2/2 way |
| Normal Voltage | AC220V DC24V |
| Orifice | 7/16"-1"(DN12-25mm) |
| Valve internals | Brass |
| Duty cycle | 100% continuous rating |
| Protection class | IP 65 with cable plug |
Specification
| Pattern: | Two-port two-position | |||||
| Principium: | pilot type | |||||
| Control mode: | normally close | |||||
| Valve body: | brass | |||||
| Diaphragm material: | PTFE: <180°C | |||||
| Working pressure: | 1~50bar | |||||
| Max pressure: | 50bar | |||||
| Voltage: | AC220V DC12V DC24V | |||||
| Medium: | air ,water, hot water , oil ect. | |||||
| Application: | high pressure high temperature large-flow normally air water control system | |||||

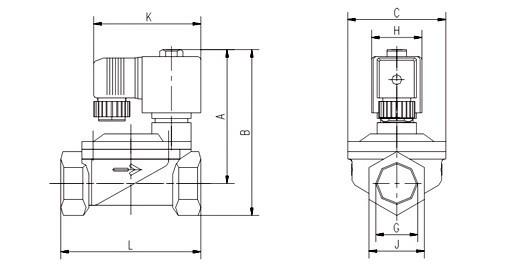

| MODEL | BORE(mm) | PORT | A | B | C | L | J |
| Apr-04 | 12 | G1/2'' | 83 | 95.5 | 32 | 65 | 27 |
| Jun-04 | 20 | G3/4'' | 93 | 109 | 60 | 100 | 32 |
| Aug-04 | 25 | G1'' | 99.5 | 119 | 70 | 115 | 40 |
