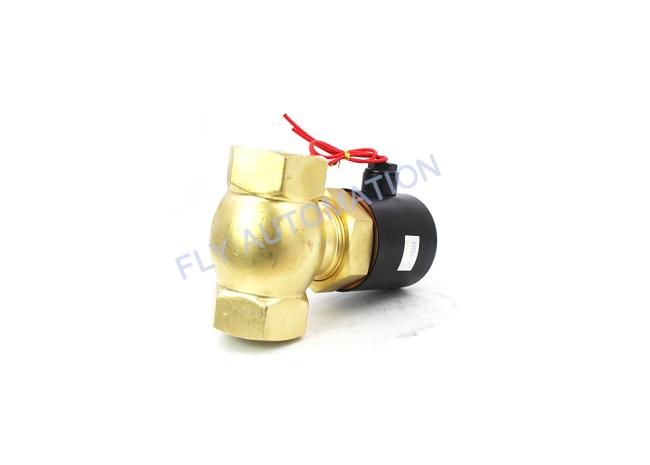

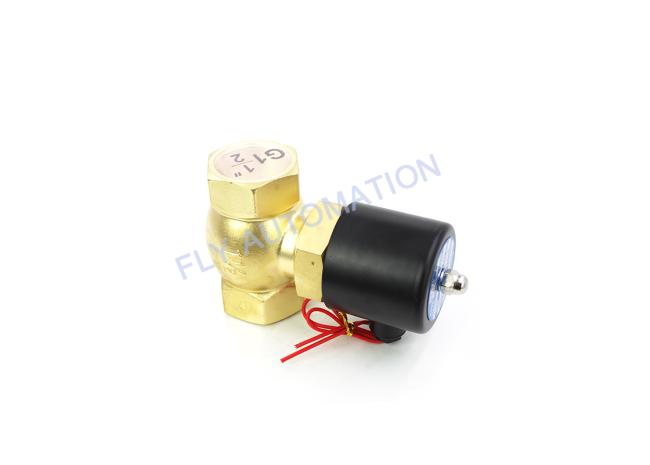

Stainless Steel Water Solenoid Valve 30mm ORIFICE Normally Closed
UNID Brass US-40 Fluid Flow Water Solenoid Valve Normally Closed High-Temperat
| MODEL | Waterproof DIN/flying lead Coil | NASS DIN Coil (IP65) | PIPE SIZE | CV | ORIFICE | FLUID TEMP | Operating Pressure kgf I cm' (bar) | Vacuum (Torr) | Dimension (mm) | Weight (kg) | |||||
| Water | Air | Light oil | Gas | L | H | D | |||||||||
| US-15 | 1/2” | 4 | 17mm | -5*C~ +185*C | 0.5~10 | 0.5~10 | 82 | 125 | 58 | 1.6 | |||||
| US-20 | 3/4" | 6 | 17mm | -5°C- +185*C | 0.5~10 | 0.5~10 | 82 | 125 | 58 | 1.67 | |||||
| US-25 | 1" | 12 | 22mm | -5*C~ +185"C | 0.5~10 | 0.5~10 | 91 | 133 | 58 | 2.02 | |||||
| US-35 | 1 1/4" | 18 | 30mm | -5"C~ +185'C | 1~10 | 1~10 | 111 | 141 | 58 | 3.08 | |||||
| US-40 | 1 1/2" | 22 | 30mm | -5*C- +185*C | 1~10 | 1~10 | 111 | 144 | 58 | 3.1 | |||||
| US-50 | 2" | 48 | 50mm | -5"C- +185*C | 1~10 | 1~10 | 163 | 175 | 58 | 6.82 | |||||
| PARTS | Coil | Tube | Spring | Core | Plug | Piston | Piston plug | Valve body |
| MATERIAL | Special copper wire (H class) | Stainless steel | Stainless steel | Stainless steel | PTFE +15%GF | Brass | PTFE | Cast BRONZE |
1. We win with high quality.
Only with perfect quality system management can we have quality assurance. Airwolf Automation has passed ISO9001 quality management system certification.
Precision high-end testing equipment 100% inspection. Strive to be "100 points high quality products"
Only with quality can we have market, go further, and strive for the quality management concept of survival with quality.
2. Professional production technology management ability.
Pay attention to the process quality control, important performance test and appearance inspection of each work station in the production process. Check the quality level by level.
All staff participate, strengthen management, keep improving and casting quality.
3. Professional technical and after-sales service team
Provide professional technical support and analysis for customers, follow-up before and after orders step by step.
Professional after-sales customer service personnel and online staffing.
Get in Touch
Have questions about our products or want to discuss a custom order? Our team is ready to help you.
