3 / 2 Way 1/8" Solenoid Valve AC220 Aluminum Alloy

Price Negotiable

Price: Negotiation

MOQ: 1 PC

Delivery Time: 7 working Days

Brand: AIRTAC

Product Description

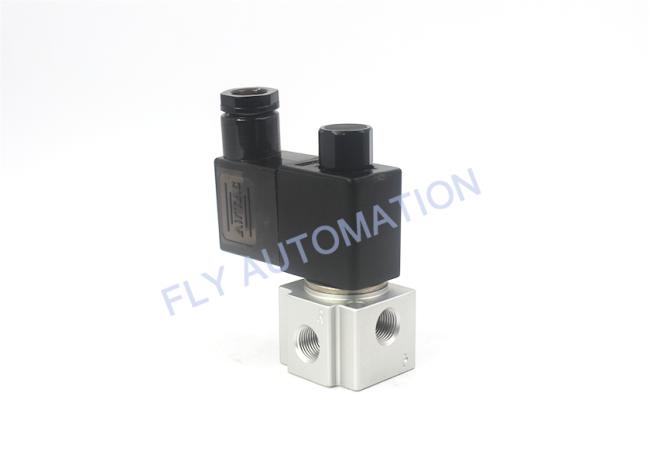

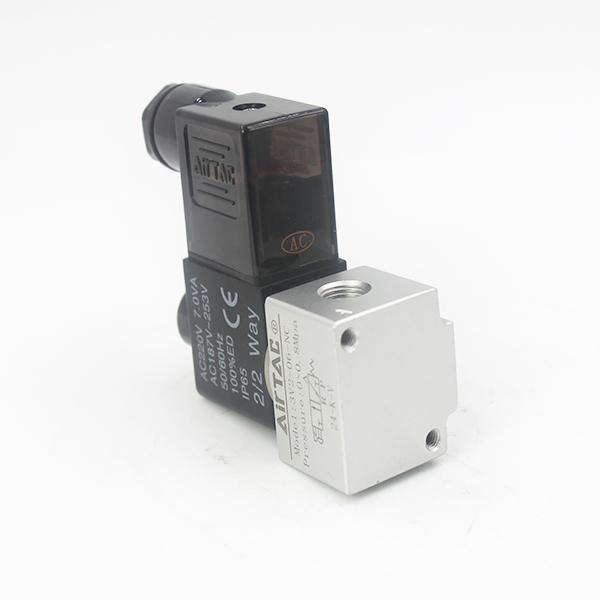

AIRTAC 3V206NCA 3/2 way 1/8" Solenoid valve AC220 Aluminum Alloy

product feature

1. Directacting type and normally closed mode.flexible in direction change.
2. Normally cloesed and normally open types are optional .
3. Structura in coaxial blanking mode: leakage proof and large air flow
4. No need to add oil for lubrication .
5. Affilated manual devices are equipped to facilitate installation and debugging.
6. Several standard voltage grades are optional.
7. Can be used under vacuum condition.

3V2 SERIES DETAILES:

MODEL		3V206	3V208
Fluid		air (to be filtered 40 μm filter element)
Acting		direct acting
port size		1/8"	1/4"
Orifice size		3.2MM² (Cv=0.18)	3.4mm² (Cv=0.19)
VALVE TYPE		3 port 2 positions
Lubrication		Not required
Operating pressure	common	0-0.8MPa(0-114psi)
	vacuum	-102.2KPa-0.1Mpa (-1.45-14.2psi)
Proof pressure		1.2MPa(175psi)
Marterial of body		aluminum alloy

COIL SPECIFICATION:

MODEL	Specification
standard voltage	AC220V	AC110V	AC24V	DC24V	DC12V
Scope of voltage	AC+_15% DC+_10%
Power consumption	AC:7VA DC:7.0W
Protection	IP65(DIN40050)
Temperature classification	B CLASS

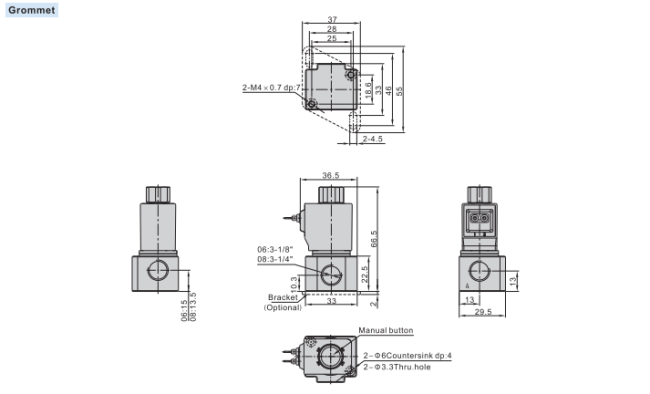

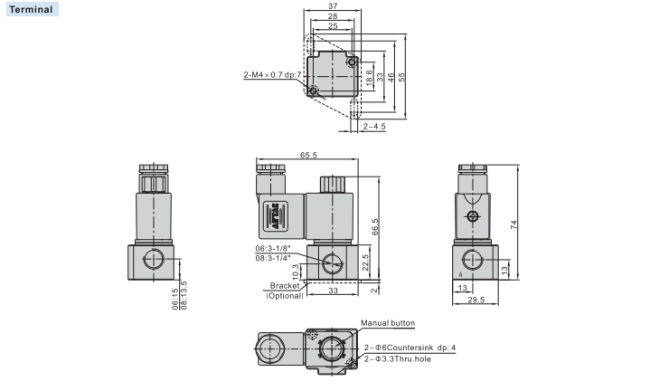

Electrical enrty	Terminal Grommet
Activating time	0.05 sec and below
Max. frequency	Note 10 cycle/sec
