1/4" Series Solenoid Valve 3 / 2 Way Aluminum Alloy AC220V
Price:
Negotiation
MOQ:
1 PC
Delivery Time:
7 working Days
Brand:
AIRTAC
Product Description

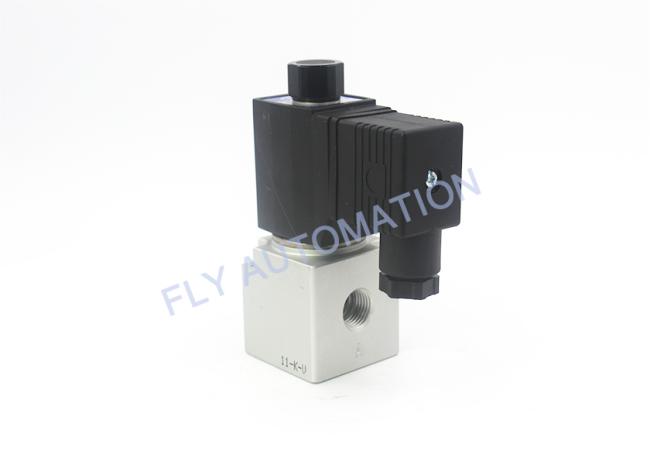

AIRTAC 3V308 1/4" series Solenoid valve 3/2 way Aluminum alloy AC220V
3V3 SERIES
We have various models. No matter what model you need, please feel free to contact me.
If you have any questions about the price, you can contact me at any time.

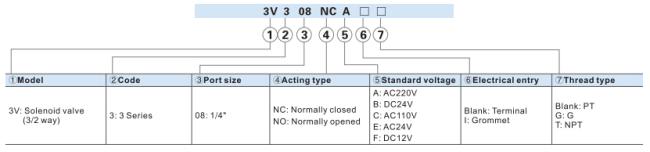

3V3 SERIES DETAILES:
| MODEL | 3V308 | |
| Fluid | air (to be filtered 40 μm filter element) | |
| Acting | direct acting | |
| port size | 1/4" | |
| Orifice size | 11MM² (Cv=0.62) | |
| VALVE TYPE | 3 port 2 positions | |
| Lubrication | Not required | |
| Operating pressure | common | 0-0.8MPa(0-114psi) |
| vacuum | -102.2KPa-0.1Mpa (-1.45-14.2psi) | |
| Proof pressure | 1.2MPa(175psi) | |
| Marterial of body | aluminum alloy | |
| Temperature | -20-70℃ | |
COIL SPECIFICATION:
| MODEL | Specification | ||||
| standard voltage | AC220V | AC110V | AC24V | DC24V | DC12V |
| Scope of voltage | AC+_15% DC+_10% | ||||
| Power consumption | AC:10VA DC:6.5W | ||||
| Protection | IP65(DIN40050) | ||||
| Temperature classification | B CLASS | ||||

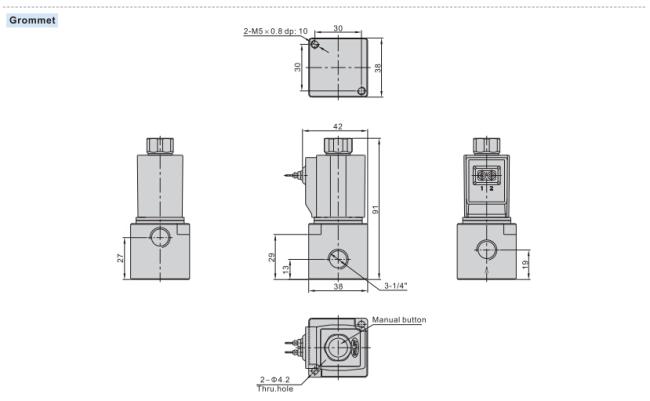

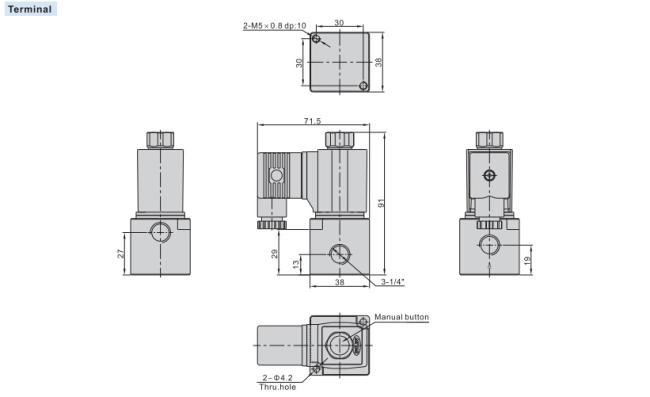

| Electrical enrty | Terminal Grommet | ||||
| Activating time | 0.05 sec and below | ||||
| Max. frequency | Note 10 cycle/sec | ||||
