TN double shaft Pneumatic cylinder, Φ10mm,Φ16mm,Φ20mm,Φ25mm,Φ32mm
Price:
USD8-15
MOQ:
1 piece
Delivery Time:
5 working days after receiving the customers' payment
Brand:
Airtac or OEM
Product Description
TN double shaft Pneumatic cylinder, Φ10mm, Φ16mm, Φ20mm, Φ25mm, Φ32mm
| Bore(mm) | 10 | 16 | 20 | 25 | 32 |
| Motion Pattern | Double action | ||||
| Working Medium | Air | ||||
| Operating Voltage Range | 1~9kgf/cm2 | ||||
| Ensured Pressure Resistance | 10.5kgf/cm2 | ||||
| Operating Temperature Range | -5~+70℃ | ||||
| Operating Speed Range | 100~500mm/s | ||||
| Adjustable Stroke | -10~0mm | ||||
| Cushion Type | Adjustable Cushion | ||||
| Non-rotating Precision | 0.4℃ | 0.3℃ | |||
| Port Size | M5×0.8 | G1/8" | |||

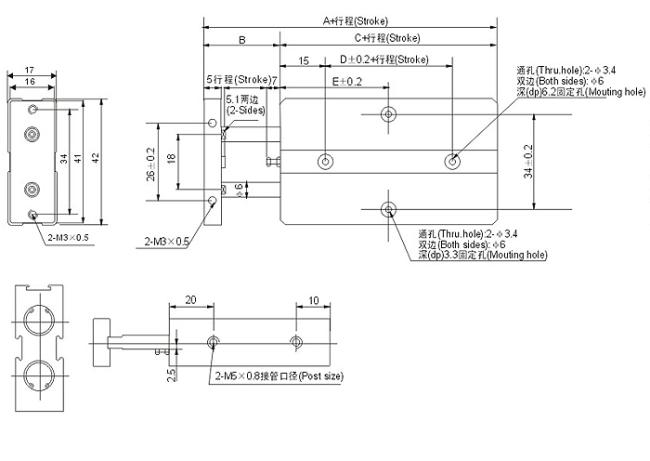

| Dimensions sheet-10TN | ||||||||||||||||||||
| Bore size | A | B | C | D | E | |||||||||||||||
| Item | 10 | 20 | 30 | 40 | 50 | 60 | 70 | |||||||||||||
| 10 | 63 | 12 | 51 | 10 | 30 | 30 | 35 | 40 | 45 | 50 | 55 | |||||||||

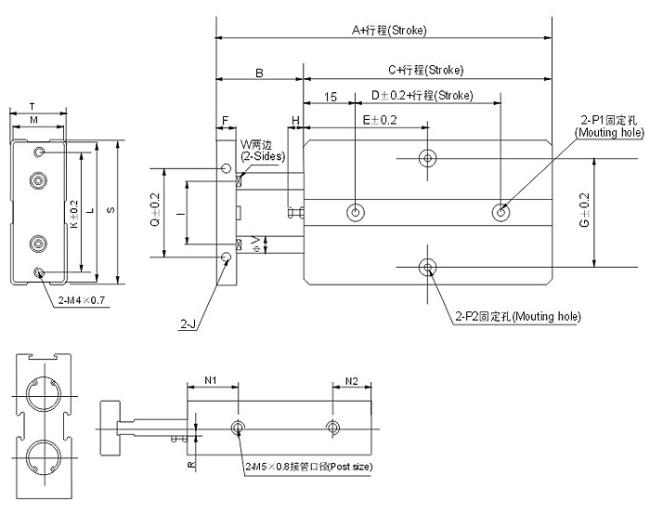

| Dimensions sheet-16-25TN | ||||||||||||||||||||
| Bore size | A | B | C | D | E | F | G | H | I | |||||||||||
| Item | 10 | 20 | 30 | 40 | 50 | 60 | 70 | 80 | 90 | 100 | 125 | 150 | ||||||||
| 16 | 68 | 15 | 53 | 20 | 30 | 35 | 40 | 45 | 50 | 55 | 60 | 65 | 70 | 75 | 88 | 100 | 8 | 47 | 6 | 24 |
| 20 | 78 | 20 | 58 | 20 | 35 | 35 | 40 | 45 | 50 | 55 | 60 | 65 | 70 | 75 | 88 | 100 | 10 | 55 | 9 | 28 |
| 25 | 81 | 19 | 62 | 30 | 40 | 40 | 45 | 50 | 55 | 60 | 65 | 70 | 75 | 80 | 93 | 105 | 10 | 66 | 8 | 34 |
| Bore size/Item | J | K | L | M | N1 | N2 | P1 | P2 | Q | R | S | T | V | W | ||||||
| 16 | M4×0.7dp 5 | 47 | 53 | 20 | 22 | 11 | (Both sides):φ7.5(dp) 7.2mm | (Both sides):φ8(dp) 4.4mm | 34 | 3 | 54 | 21 | 8 | 6.1 | ||||||
| (Thru.hole): φ4.5 | (Thru.hole): φ4.5 | |||||||||||||||||||
| 20 | M4×0.7/dp 5 | 55 | 61 | 24 | 25 | 12 | (Both sides):φ7.5(dp) 7.2mm | (Both sides):φ8(dp) 4.4mm | 44 | 3.5 | 62 | 25 | 10 | 8.1 | ||||||
| (Thru.hole): φ4.5 | (Thru.hole): φ4.5 | |||||||||||||||||||
| 25 | M4×0.7/dp 6 | 66 | 72 | 29 | 27 | 12 | (Both sides):φ7.5(dp) 7.2mm | (Both sides):φ8(dp) 4.4mm | 56 | 7 | 73 | 30 | 12 | 10 | ||||||
| (Thru.hole): φ4.5 | (Thru.hole): φ4.5 | |||||||||||||||||||

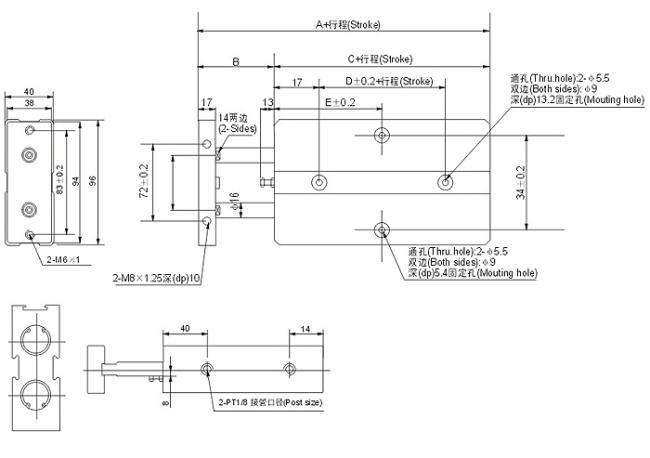

| Dimensions sheet-32TN | ||||||||||||||||||||
| Bore size | A | B | C | D | E | |||||||||||||||
| Item | 10 | 20 | 30 | 40 | 50 | 60 | 70 | 80 | 90 | 100 | 125 | 150 | ||||||||
| 32 | 108 | 30 | 78 | 35 | 45 | 50 | 55 | 60 | 65 | 70 | 75 | 80 | 85 | 90 | 103 | 115 | ||||
