8353C033 8353C030 8353C035 AC220V DC24V 2/2 way Dust Collector
Price:
Negotiation
MOQ:
1 piece
Delivery Time:
within 1-30 working days after payment
Product Description
8353C033 8353C030 8353C035 AC220V DC24V 2/2 way Dust Collector
Features:
1. Specially designed for reverse jet-type dust collector systems
2. High flow Cv(s) to 140 for effective bag cleaning
3. High cycle life
4. Fast opening/closing
| Construction | |
| Body | Aluminum |
| Core tube | Stainless steel |
| Core and Plugnut | Stainless steel |
| Core Spring | Stainless steel |
| Sealing & disc | NBR(nitrile/buna-n) |
| Diaphragm | TPE(hytrel) |
| Shading coil | Copper |
| Connector | DIN43650A |
| Voltage | DC: 24V, AC: 24V, 48V, 110V, 230V |
| Working Temperature | -20 to +85℃ |
| Protection Class | IP65 |
| Coil Insulation Class | F |
| Working Pressure | 0.35-0.85Mpa |

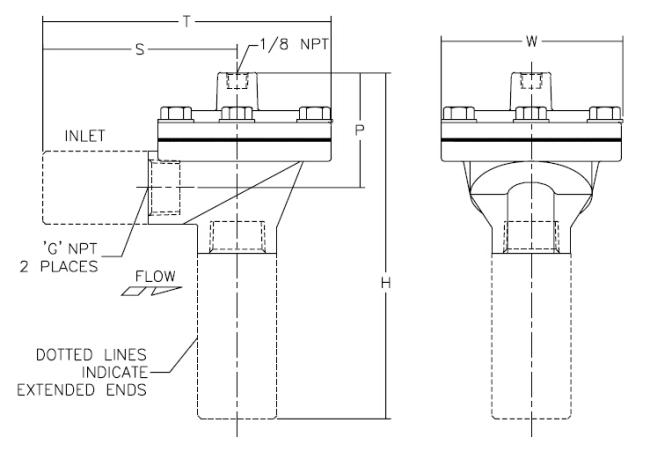

Drawings:
| Bonnet | ||||||||
| Cat. No. | “G” | H | L | P | Bolts | T | W | |
| in | 7.94 | 3.69 | 2.16 | 5 | 5.16 | 3.44 | ||
| 8353C004 | Extended End | mm | 201.6 | 93.7 | 54.8 | 127 | 131 | 87.3 |
| 3/4 NPT (Inlet) | in | 3.44 | 1.69 | 2.19 | 5 | 3.47 | 3.44 | |
| mm | 87.3 | 42.9 | 55.6 | 127 | 88.1 | 87.3 | ||
| 8353C030 | 3/4 Socket | in | 3.44 | 1.69 | 2.19 | 5 | 3.47 | 3.44 |
| (Outlet) | mm | 87.3 | 42.9 | 55.6 | 127 | 88.1 | 87.3 | |
| in | 3.44 | 1.69 | 2.19 | 5 | 3.47 | 3.44 | ||
| 8353C033 | 3/4 NPT | mm | 87.3 | 42.9 | 55.6 | 127 | 88.1 | 87.3 |
| in | 2.53 | 2.03 | 1.69 | 4 | 3.5 | 2.94 | ||
| 8353C035 | 1 NPT | mm | 64.3 | 51.6 | 42.9 | 101.6 | 88.9 | 74.6 |
