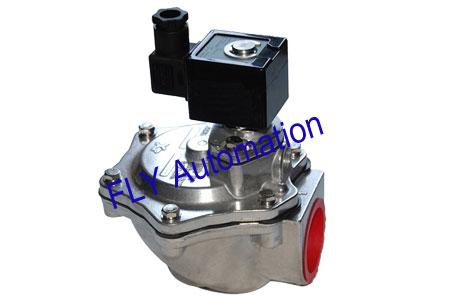

SCG353A047 2/2 Way 0.35-0.85Mpa Diaphragm Dust Collector Pulse Jet Valve
Price:
USD20-30
MOQ:
1 piece
Delivery Time:
within 1-30 working days after payment
Brand:
or OEM
Product Description
SCG353A047 2/2 way 0.35-0.85Mpa Diaphragm Dust collector pulse jet valve
FEATURES
• The pulse diaphragm valves are especially designed for dust collector service applications, combining high flow, long life and extremely fast opening and closing to produce reliable and economical operation
• The high flow, angle type bodies in combination with the special main diaphragm assemblies give theunique operating features required for dust collector service applications
• The design with integral compression fittings will facilitate installation because there is no need for threaded piping
• The high quality diaphragms are reinforced and wear resistant to guarantee a long operating life, even under harsh conditions
• Integral pilot operated valves satisfy all relevant EC directives
| Ordering Code | Port Size | Orifice | Flow Value | Coil type | |
| G Threaded | mm | m3/h | l/min | ||
| SCG353A047 | 1 1/2" | 52 | 46 | 768 | 400425 |
| SCG353A050 | 2" | 66 | 77 | 1290 | 400425 |
| SCG353A051 | 2 1/2" | 66 | 92 | 1540 | 400425 |
| SCG353.060 | 3" | 75 | 170 | 2833 | 400425 |
| Construction | |
| Body | Aluminum |
| Core tube | Stainless steel |
| Core and Plugnut | Stainless steel |
| Core Spring | Stainless steel |
| Sealing & disc | CR (chloroprene) |
| Diaphragm | NBR(nitrile/buna-n) |
| Shading coil | Copper |
| Connector | DIN43650A |
| Voltage | DC: 24V, AC: 24V,48V,110V,230V |
| Working Temperature | -20 to +85℃ |
| Protection Class | IP65 |
| Coil Insulation Class | F |
| Working Pressure | 0.35-0.85Mpa |
| Ordering Code | A | B | C | D | E | F | G | H | J | K | L | Weight |
| SCG353A047 | 80 | 50 | 30 | 71 | 130 | 136 | 45 | G 3/8" | 131 | 160 | 178 | 1.40 |
| SCG353A050 | 80 | 50 | 30 | 95 | 168 | 165 | 45 | G 3/8" | 165 | 210 | 227 | 2.90 |
| SCG353A051 | 80 | 50 | 30 | 95 | 168 | 165 | 45 | G 3/8" | 165 | 210 | 227 | 2.60 |
| SCG353.060 | 80 | 50 | 30 | 143 | 240 | 192 | 45 | G 1/2" | 165 | 258 | 275 | 4.10 |
