SCG353A051 8353G051 2.5" C113686 Diaphragm Pulse Jet Valves For Dust Collector
SCG353A051 8353G051 2.5" C113686 Diaphragm Pulse Jet Valves For Dust Collector
FEATURES
• The pulse diaphragm valves are especially designed for dust collector service applications, combining high flow, long life and extremely fast opening and closing to produce reliable and economical operation
| Ordering Code | Port Size | Orifice | Flow Value | Coil type | |
| G Threaded | mm | m3/h | l/min | ||
| SCG353A047 | 1 1/2" | 52 | 46 | 768 | 400425 |
| SCG353A050 | 2" | 66 | 77 | 1290 | 400425 |
| SCG353A051 | 2 1/2" | 66 | 92 | 1540 | 400425 |
| SCG353.060 | 3" | 75 | 170 | 2833 | 400425 |
| Construction | |
| Body | Aluminum |
| Core tube | Stainless steel |
| Core and Plugnut | Stainless steel |
| Core Spring | Stainless steel |
| Sealing & disc | CR (chloroprene) |
| Diaphragm | NBR(nitrile/buna-n) |
| Shading coil | Copper |
| Connector | DIN43650A |
| Voltage | DC: 24V, AC: 24V,48V,110V,230V |
| Working Temperature | -20 to +85℃ |
| Protection Class | IP65 |
| Coil Insulation Class | F |
| Working Pressure | 0.35-0.85Mpa |
CONSTRUCTION
Body: Aluminium (diecast)
Screws: 304 Stainless steel
Diaphragm: Proprietary highperformance engineering thermoplastic Elastomer or fluororubber
APPROVALS
The RCAC25T4 meets the requirements of the European Low Voltage Directive 2006/95/EC, when fitted with the RCA3PV pilot.
Please Note: We recommend using Schedule 40 pipe. Thickness OD is as shown below.
OPERATION
Recommended on-time range: 50 to 500 ms
Recommended time between
pulses: 1 minute or greater
Drawings
| Ordering Code | A | B | C | D | E | F | G | H | J | K | L | Weight |
| SCG353A047 | 80 | 50 | 30 | 71 | 130 | 136 | 45 | G 3/8" | 131 | 160 | 178 | 1.40 |
| SCG353A050 | 80 | 50 | 30 | 95 | 168 | 165 | 45 | G 3/8" | 165 | 210 | 227 | 2.90 |
| SCG353A051 | 80 | 50 | 30 | 95 | 168 | 165 | 45 | G 3/8" | 165 | 210 | 227 | 2.60 |
| SCG353.060 | 80 | 50 | 30 | 143 | 240 | 192 | 45 | G 1/2" | 165 | 258 | 275 | 4.10 |

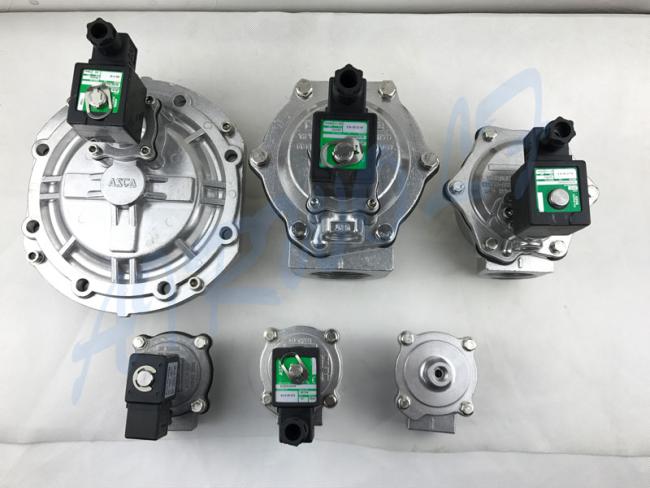

Pictures details
Competitive Advantage
| Our product features | Our Services Guarantee: |
| 1) Competitive price | 1) Prompt respond (Reply with 24 hours) |
| 2) Good quality | 2) Free Samples (Customer pay for the delivery cost) |
| 3) Professional Packaging | 3) Registration support. |
| 4) Produce according to Customers’ instruction | 4) Photos/videos are available during production. |
| 5) None delay shipment | 5) Loading inspection, and send loading photos before shipment. |
After-sale Service
We can provide a series of after-sale service, such as product introduction, mounting, debugging, technical support and so on.
Warranty
All item Comes with Basic 3 Month Sellers Warranty, if item defective in 3 Month, We will offer replacement without extra Charger(including shipping fee)After we Receive the Defective item.
If item Defective after 3 Month, Buyers can still send it back, We will contact suppliers or Manufactory for Warranty. Buyers Might Need to pay the Shipping fee For resend the replaced item.
