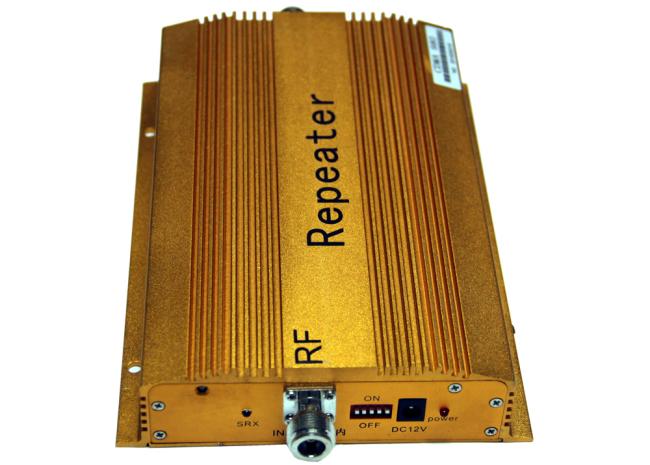

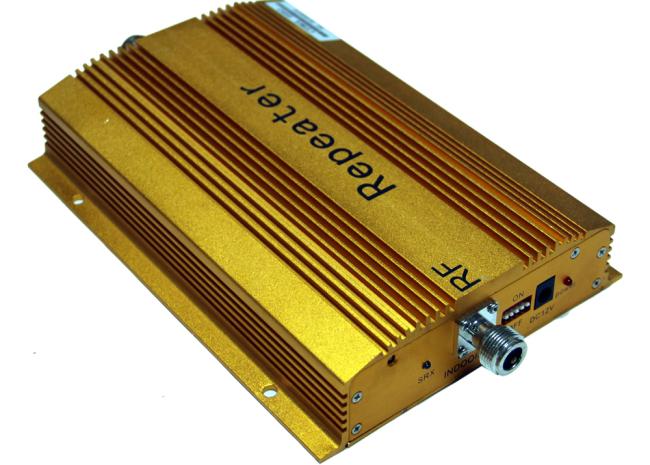

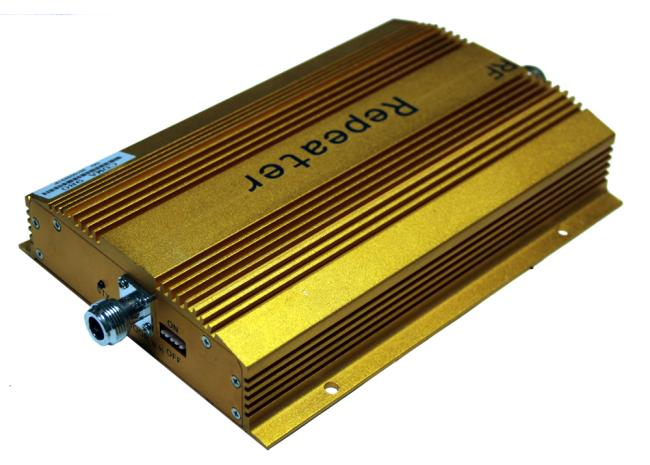

CDMA 850MHZ Cell Phone Signal Amplifier For Office , 824—849MHZ Uplink
CDMA 850MHZ Cell Phone Signal Amplifier For Office , 824—849MHZ Uplink
Quick details :
1) Frequency :Uplink:824—849MHZ Downlink 869-894MHz
2) function :Enhance Mobile Phone Signal Strength and improve indoor ctromagnetism environments
3) Easy Operation and Installation
4) Coverage area :2000m2
5) Build-in Power Supply
Technique
Frequency range | Uplink:824—849MHZ |
Gain ( dB) | Uplink Gp≥60 Downlink Gp≥65 |
Export power (Po) | ≥27dBm |
Pass band ripple | ≤3dB |
I/O impedance | 50Ω/N connector |
Noise figure | ≤4dB |
Transmission Delay | ≤0.5μs |
Ambient temperature | -10℃～60℃ |
Power supply | AC110～240V 45～55Hz |
Size | 220 x 140 x 40 mm |
Reliability | To the GB6993-86 standard |
Electromagnetic | To the ETS300 694-4 standard |
Function | a) Power supply LED denote |
coverage area | 2000 m2 |
3 Working area :
- weak-signal area, e.g. underground or semi-underground rooms, small basements, underground parking lots;
- Small zones: meeting rooms, supermarkets, offices, pubs, coffee shops, gyms, etc.;
- Private homes or villas at outskirts with bad signal coverage.
- Company information
4 product warranty
· free replacement for first three months ( our company pay the shipping cost )
· The warranty period is 3 years. ( shipping cost under customer's expenses)
· lifetime warranty :1,no big damage to the product;2,shipping cost under customer's expenses;3, Only charge for material cost depending on the specific condition ( case by case)
5 Pictures
Office

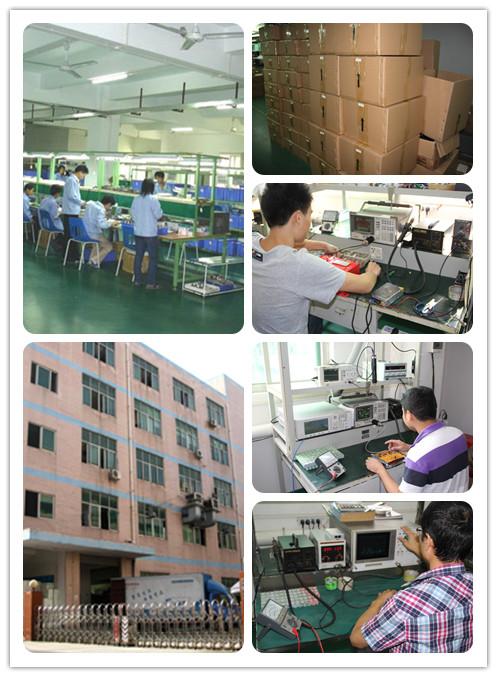

workshop
customers
Certification
