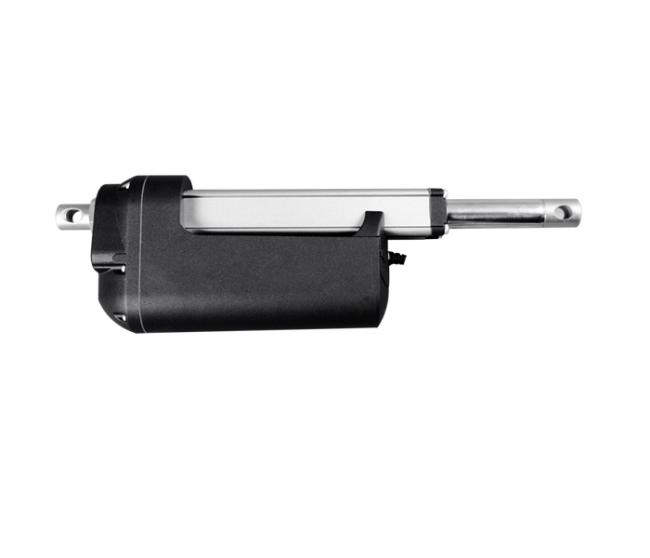

Dc linear actuator with pot used in industry machine, with powerful load 12v
Specification of Linear Actuator(Model No.:HB-DJ805)
Brand | HB |
Model | HB-DJ805 |
Item name | Linear Actuator |
Input | 12V/24V/36V/48V DC |
Load Capacity | 12000N |
Protection class | IP66 |
Speed | 6.5mm-60mm/s |
Stroke Length | Standard stroke sizes 100~600mm Other sizes for Custom orders |
Limit Switch | Build-in |
Duty cycle | 10% |
MOQ | 2Unit/Units |
Packaging Details | 2 units/carton |
Delivery Time | Sample with in 10 working days, bulk order 15~20 working days |
Payment Terms | L/C,T/T,Paypal,Westen Union |
Supply Ability | 5000 Unit/Units per month |
Certification | CE,ISO9001 |
Application | Industry,Agricultural machinery,Solar tracker,Car/truck |
PS: | Potentiometer is options |
HB-DJ805 Linear actuatoruse high strength metal and durable material, Aluminium alloy housing,
stainless steel sliding tube, carbon steel end clevis can take the place of traditional industry linear actuator,
and applies to the transmissions requirements of all kinds of extremely harsh conditions.
Features of linear actuator (model.: HB-DJ805)
- Solid metal structure
- With the crank of manual operation
- Suitable for extremely harsh conditions
- Passed salt spray and chemical detergents
- For outdoor design
- Operation: the sliding clutch or limit switch
805 Model linear actuator installation dimension
for you reference
Stroke | 50 | 100 | 200 | 250 | 300 | 350 |
A | 300 | 300 | 400 | 450 | 500 | 600 |
B | 350 | 400 | 600 | 700 | 800 | 950 |
Note: A:Retracted length(min installation dimension) B:Extended length(total length)
Stroke=B-A

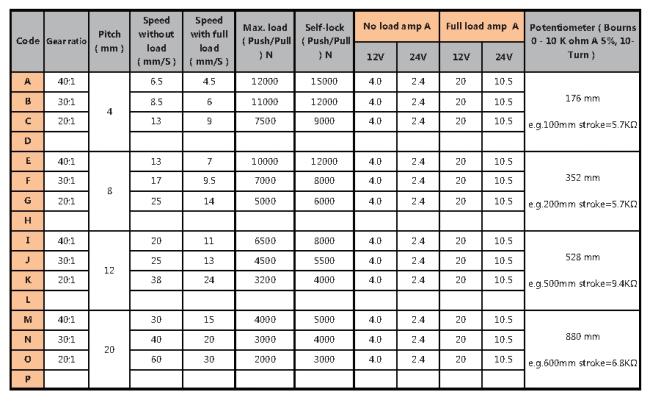

Load, speed and current of linear actuator

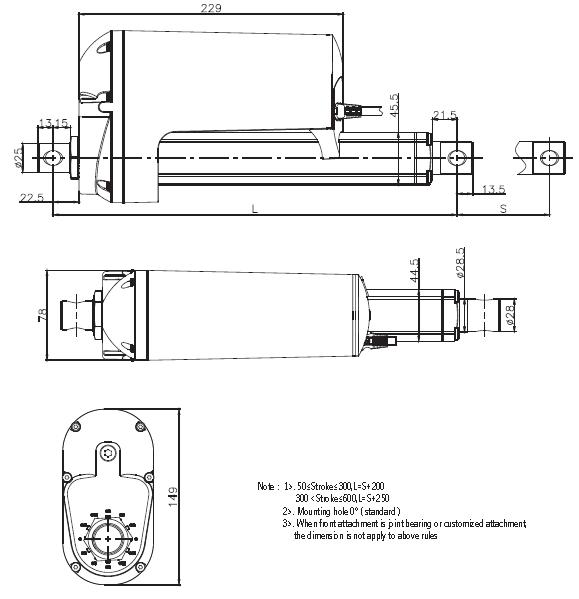

Drawing of linear actuator---HB-DJ805

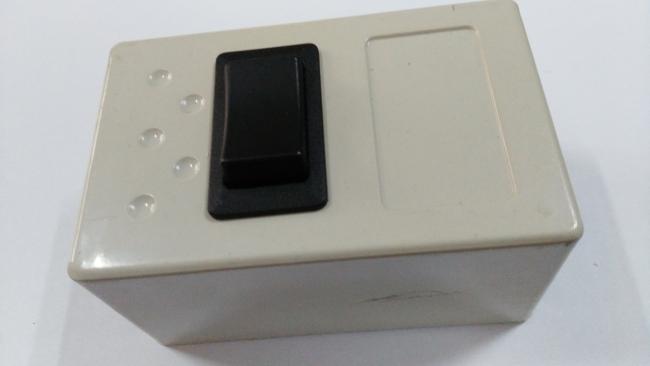

808/805 controller box
This control box can control 1-2 heavy duty linear actuators or multiple other actuator models.
The control box comes with attached rocker switch to control the movement of an actuator.
Customize the control box to control 2 actuators simultaneously or non-simultaneously.
The control box is popular in industrial applications.
We need below info of linear actuator to complete the quotation.
1- voltage (v dc)
2- stroke (mm)
3- load (kg or n)
4- other special requirement
5- simple description of application
6- quantity
7- delivery address if freight prepaid

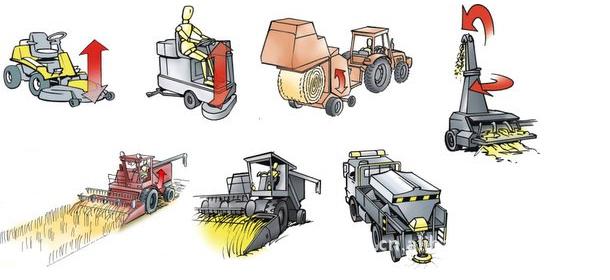

Application of 805 model linear actuator

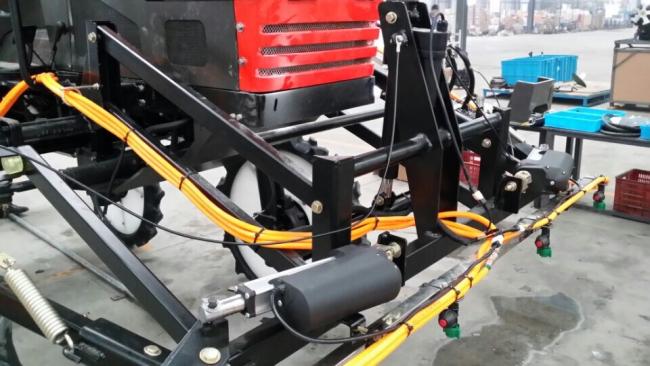

Agricultural application
Mobile off-highway application
The ground cleaning machine and scrubber
Other industry facilities
Solar tracker
More questions about linear actuator delivery time,
payment terms, service
Payment terms |
1)EXW |
2) T/T. Paypal,L/C,Western Union |
3)Sample order pay through Paypal or T/T,Western Union |
4)Bulk order T/T 50% deposit, 50% balance before shipment or L/C at sight |
5) Import duties, taxes and charges are not included in the item price or shipping charges. These charges are the buyer's responsibility. |
Delivery time & Transport |
Lead Time: 7-15 days after deposit received. |
Shipping Method: by courier, air or sea |
Appointed shipping company or our own forwarders all could be used in shipment. |
After sale service & promise |
1. Warranty Term: 2 year |
2. 100% percent of pass before shipping. |
3. IS09001 certifications. |
