IMO MEPC.159(55) Marine Sewage Treatment Plant STP for SALE
Marine Sewage Treatment Plant with UV Sterilizer
SWCM Sewage Treatment Plant Specification:
a) cted Structure in horizontal with covers in both ends to resistant the pressure
b) automatic control without needs of operator site monitoring in 24 hours
c) internal“MBR”technology to have impact structure to match limited space of cabin.
d) the intermittent aeration in bio-membrane tank and hollow fiber membrane tank, form the process of “aerobic anoxic”, and resolve the problem of “nitrogen and phosphorus removal”.
e) by using “air-lifting” way to transfer the sludge from sediment tank and membrane tank to aeration tank, pump stopped without cutting air supplying, the dirt scale on the membrane come down. The life of membrane can be prolonged at least 8 to 9 years by back flushing and on line clean the membrane patent.
f) the online clean technology also avoid the problem of manual opening and cleaning, as well as replacing the membrane in the narrow space.
g)The Effluent after further treatment can be reached at the requirement of "water recovery'
- SWCM Sewage Treatment Plant Performance
1) Capability of disposed sewage:
a) Black water:excrement and urinefrom toilet
b) Gray Water: waste water form cooking room and bath room
2) It Can be developed to a sewage recycling system
- SWCM Sewage Treatment Plant Technical Data
| Model | SWCM | ||||||||||||||||
| 10 | 15 | 20 | 25 | 30 | 40 | 50 | 60 | 80 | 100 | 120 | 150 | 200 | 250 | 300 | 400 | ||
| Treated Load | Average Load (L/d) | 840 | 1190 | 1540 | 1890 | 2310 | 3080 | 3780 | 4480 | 6020 | 7700 | 9100 | 11200 | 14700 | 18200 | 23100 | 30800 |
| Peak Load (L/h) | 105 | 149 | 193 | 237 | 289 | 385 | 473 | 560 | 753 | 963 | 1138 | 1400 | 1838 | 2275 | 2888 | 3850 | |
| Organic Load (kgBOD5/d) | 0.42 | 0.595 | 0.77 | 0.945 | 1.155 | 1.54 | 1.89 | 2.24 | 3.01 | 3.85 | 4.55 | 5.6 | 7.35 | 9.1 | 11.55 | 15.4 | |
| Rated Capacity(P) | 10 | 15 | 20 | 25 | 30 | 40 | 50 | 60 | 80 | 100 | 120 | 150 | 200 | 250 | 300 | 400 | |
| Max Capacity(P) | 12 | 17 | 22 | 27 | 33 | 44 | 54 | 64 | 86 | 110 | 130 | 160 | 210 | 260 | 330 | 440 | |
| Electricity | AC380V-50Hz / AC440V-60Hz | ||||||||||||||||
| Power(kw) | 2.25 | 2.25 | 2.5 | 2.5 | 2.5 | 3 | 3 | 3.5 | 4 | 4 | 4 | 6 | 6 | 7 | 9 | 11 | |
| External Dimensions Length×width×height | 1350 × 1200 × 1370 | 1850 × 1200 × 1400 | 1660 × 1400 × 1550 | 1890 × 1400 × 1560 | 1980 × 1500 × 1650 | 2270 × 1600 × 1700 | 2300 × 1700 × 1820 | 2650 × 1700 × 1830 | 2790 × 1900 × 2050 | 2706 × 2000 × 2200 | 3000 × 2000 × 2200 | 3080 × 2200 × 2300 | 3630 × 2200 × 2350 | 3880 × 2400 × 2570 | 4780 × 2400 × 2600 | 5980 × 2400 × 2600 | |
| Weight | Dry weight (kg) | 900 | 1000 | 1000 | 1100 | 1200 | 1300 | 1450 | 1600 | 1850 | 2200 | 2300 | 2800 | 3000 | 3300 | 3700 | 4200 |
| Wet weight (kg) | 1775 | 2283 | 2640 | 2740 | 3500 | 4400 | 5073 | 5270 | 6517 | 8268 | 9166 | 11340 | 13267 | 16538 | 20357 | 25417 | |
| Discharge Standard | TSS<35mg/L;BOD5<25mg/L;COD<125mg/L;Colichin<100/100ml;PH:6-8.5 | ||||||||||||||||

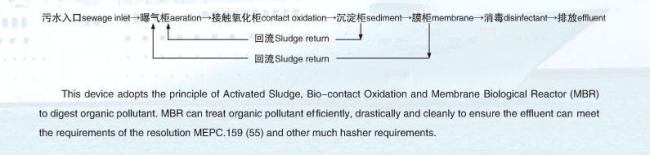

Treatment Flow
Besides Sewage Treatment Plant, we can also provide Oil Water Separator,Seawater Desalination Plants,UV Sterilizer, Silver Ion Sterilizer,Fresh Water Generator etc.
Please feel free to contact us if you are interested in STP or any other items. Thanks
