188KW Mold Temperature Control RHCM Molding 180℃ Hot Steam Mold Controller
188KW Mold Temperature Control RHCM Molding 180℃ Hot Steam Mold Controller
Parameter
|
Mould: KGWS-1800 |
Power: 3ph / 380v / 50hz |
|
Total power (KW): 188 |
Control style: PLC |
|
Heating power (KW): 180 |
Heating pump power(KW):4 |
|
Cooling pump power(KW):4 |
Size of heating pipe(inch) DN10*12 |
|
Size of cooling pipe(inch):DN50 |
Size of machine(mm):1850*1000*1450 |
|
Weight (kg):1400 |
Suitable inject machine(T):1600-2000 |
Company introduction:
Located in the northwest of Europe, Kassel Group has had several decades of researching, developing and producing temperature control units professionally. It designs and manufactures a complete line of temperature control units and electric process heaters. Kassel provides precision temperature control for process heating and cooling applications in almost every industry.
Kassel Machinery (Hangzhou) Co., Ltd. has been founded in China to introduce Kassel Group advanced technology and management concepts. At the same time, the company set up offices in Ningbo, Shanghai and Suzhou for your convenience.
Under the technical support from Germany, Kassel cares not only product quality, but also pays more attention to developing new quality products including the following characteristics: high efficiency, energy saving and environmental protection. The major products are Oil-operated temperature control system, Water-operated temperature control system, and industrial chillers.
Kassel team of engineering, sales and service professionals are dedicated to supplying the highest quality and safest products in the industry. Kassel - a value driven manufacturer that delivers practical engineering solutions with superior customer focus and support. Designed to Perform, Built to Last.
Quick Detail:

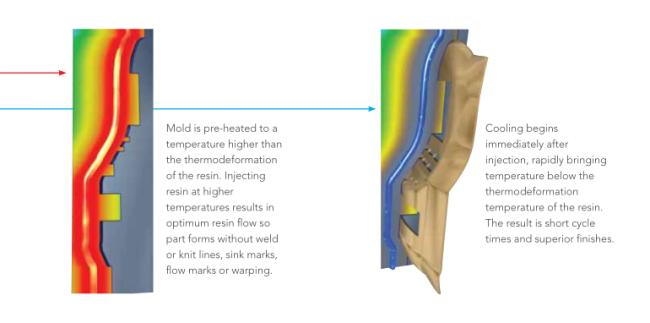

High glossy no weld line rapid heating and cooling injection mold temperature controller is also called one of RHCM(Rapid Heat Cycle Moulding), the technology improves the moulds' surface temperature rapidly through the way of 180°C hot water or high temperature steam etc, make the mould's surface temperature reach to over Tg Glass Transition Temperature, then starting injection molding. As soon as die cavity fillin process is finished, then immediately turn to use cooling water as cooling medium to decrease the mould's surface temperature rapidly, thereby change the surface characteristics of plastic products.
|
Special Functions:
|
|
Advantages:
|
|
* Remove weld lines,weld mark,ripple and |
|
* 80% heat recovery |
|
sliver marks on the products' surface |
|
* 100% medium recovery |
|
* Solve shrink phenomenon on plastic |
|
* Don’t need to connect boiler and other external |
|
products' surface throughly. |
|
temperature control assistant equipments, omit |
|
* Improve fineness level of products' surface |
|
complicated boiler equipments(examination and |
|
make fineness reaches to mirror surface. |
|
approval of high pressure equipments’ safety |
|
* Products don't need spray paint in subsequent |
|
and environmental)and the project of engineering |
|
processing, improve the rate of finished |
|
pipeline. |
|
products by 20-30%. |
|
* Completely solve the problem of high energy |
|
* Solve the floating fiber phenomenon on the |
|
consumption caused by boiler’s steam can’t |
|
products adding fiber, to improve the quality. |
|
be recovered. |
|
* Make thin-walled forming improve injection |
|
* Small size could be moved to cooperate |
|
liquidity, improve the quality intensity. |
|
with other machines actively, 180°C hot water |
|
* Reducing the injection cycle by over 60% for |
|
replace boiler, safe and environmental |
|
thick-walled forming, improving the liquidity |
|
|
|
and filling effect of plastic. |
|
|
|
|
|
|
|
Features:
|
||
|
* 10.4 inches TFT LCD screen(optional), touch input Chinese and English, easy to operate. |
||
|
* Closed-loop system controls the inspection of input and output temperature, feedback moulds’ |
||
|
real temperature to PLC, digital-color-graph display in turn, insure correct and steady output. |
||
|
* Alarm of high temperature hot water, cold water, air temperature and pressure, adopt action of |
||
|
time and temperature to operate signal interlock with injection machine. |
||
|
* The whole machine adopts components imported from Europe and America. |
||
|
* Mold temperature inspection of single and double circuit(optional), inlet/outlet pipeline uses 316 |
||
|
stainless steel pipe, multigroup input and output connections. |
||
|
* Whole unit equipped with: heating, cooling, cool&heat conversion control function. |
||
|
* Recovery system of high temperature hot water and cooling water, obvious energy saving effect. |
||
