High Efficiency Centrifugal Separator for Gypsum Powder
High Efficiency Centrifugal Separator for Gypsum Powder
1.What material is the Airflow sieving machine suitable for screening ???
Through the sieving use of materials to 20-150 meshrubber chemicals,120—180 meshlight calcium, 300 meshhaw powder, 320-500 meshzinc powder, 500 meshblack iron oxide,red iron oxide, 120—160 meshChinese medicine powder,100 meshgypsum powder.
The output per hour is about 1 metric ton in the sieve mesh area of one square meter ., and the sieving efficiency we measured is more than 95%
2.Why is the Airflow sieving machine green ???
Micro-fine powder materials is easy to adhere , possessing with small-diameter particles , light quality , easy floating etc .
But the airflow sieving machine realize fully enclosed screening .
The dust content in the air is lower than 10 mg / m3/.
3.principle of work
WS series airflow sieving machine abandons the working principle of gravity potential energy , and adopts such working principle which the air is a carrier and the kinetic energy does words .
After mixing the materials and air through the negative pressure airflow , and put them into the vane of the sieve motor , impose the leaf , and then spray out of the net to the bucket-type sieve mesh , finally collect them through the volute .
The over-diameter materials couldn’t pass the net , discharge them from the exit automatically , reach the purpose of fast sieving .
4.Features
- high sieving efficiency : more than 95% .
- the output is about 5—10 times or more than vibration sieve .
- wide scope of fineness : powder materials with the size of 80-530 meshes is able to sieve with high efficiency .
- precision of products fineness : no excess and mixture grade .
- install uprightly , long life for using
- sieving procedure is processing under negative pressure and half –cycle , no powder pollution
- be matched with all kinds of the mill and wind grid
- low noise , low waste electricity , continuous working , less maintenance .
5.Parameter
Parameter | WS-600 | WS-1000 | WS-1600 | WS-2000 |
Airflow(m3/h) | 240 | 300 | 460 | 720 |
Screen mesh | 80-600 mesh | |||
Material size(mesh) | < 40 mesh | |||
Motor power(KW) | 3 | 5.5 | 15 | 18.5 |
Rotation rate(r.m.p) | 1450 | 960 | 828 | 548 |
Diameter(mm) | φ600 | φ1000 | φ1600 | φ2000 |
Height(mm) | 1550 | 1730 | 2400 | 2400 |

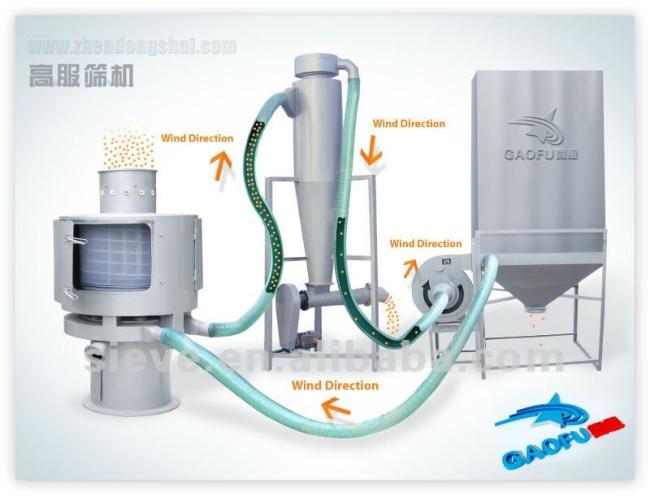

6. Working Demo

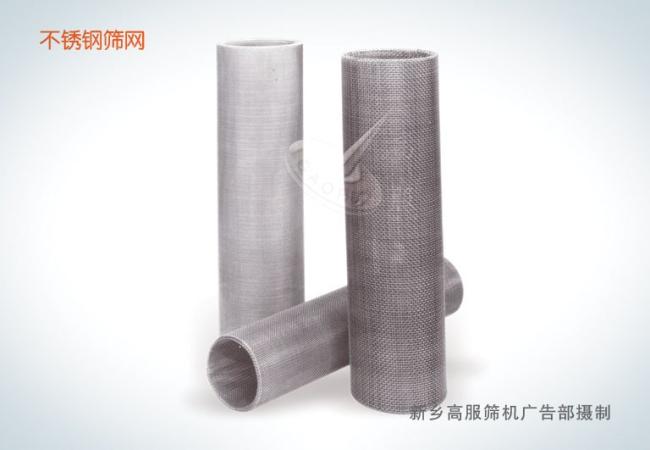

7. Screen mesh

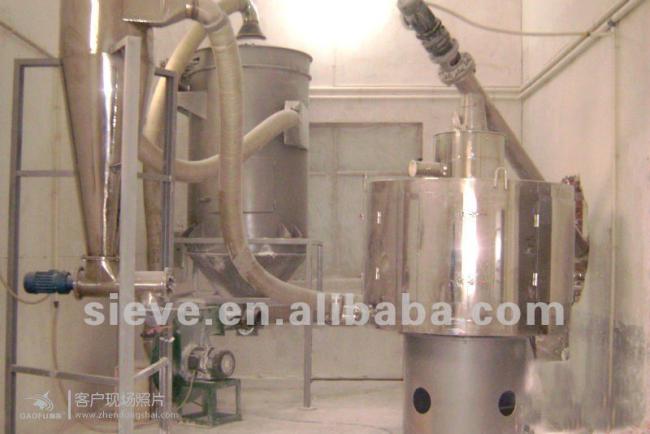

8. Customer working site
