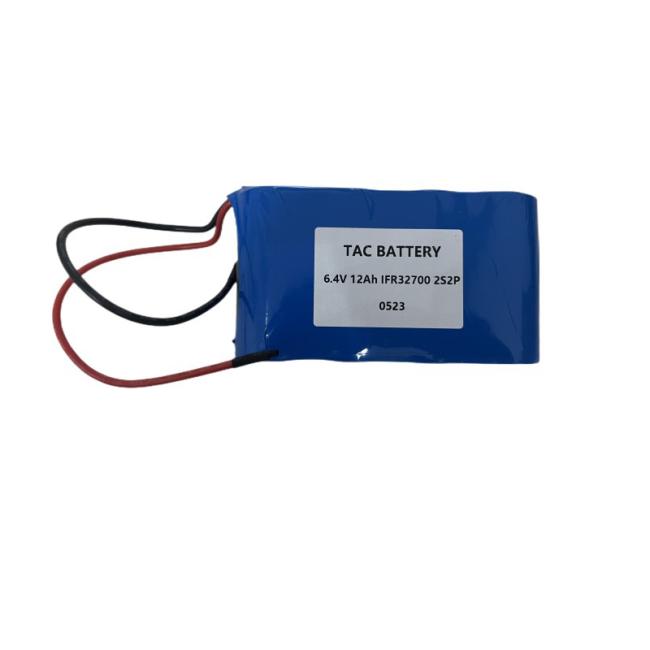

Customized LiFeO4 Battery Pack 3.2V 6.4V 9.6V 12.8V 16V 32v 36v 48v 60v 72v 96v
Customized LiFeO4 battery pack 3.2V 6.4V 9.6V 12.8V 16V 32v 36v 48v 60v 72v 96v
4. This GuangZhou Sunland New Energy Tech.Co.,Ltd LiFePO4 battery is a great option for those who need a reliable and powerful power source. It has amazing high temperature performance, making it perfect for use in electronic fence applications.
|
No. |
Items |
Specifications |
Remark |
|
1 |
Capacity for assembled cell discharging by 0.2C |
≥11.6Ah |
Standard discharging method |
|
2 |
Battery Voltage |
≥6.4V |
Base on MOQ 10K Within 10 days from Factory |
|
Battery SOC |
Appr 30% | ||
|
3 |
Standard charge condition |
Charge with 20A constant current and 7.3V constant voltage, charge to 7.3V,continue charging till current decline to ≤0.01C |
Charge voltage: 7.3V±0.03V Charge current:20A |
| 4 |
Max continuous charge current |
20A |
|
|
5 |
Standard discharging method |
20A constant current discharge to 4 V, |
|
| 6 |
Max continuous discharge current |
20A |
|
|
7 |
Internal Impedance |
Assemblage Impedance |
Measure the Red and black wire of the connector after assembling. |
| 8 |
Charge upper limit temperature |
0-45℃ |
Charging at low temperature, capacity and cycle life will reduce. |
| 9 |
Discharge upper limit temperature |
-20-60℃ | |
| 10 | Connector | None |
|
| 11 | Wire | UL1007 16AWG |
Outside diameter Max :1.5mm |
| 12 | Date code | Cell date code and battery date code not beyond 3month | |
| 13 | Vbatt(OCV) | 7.3±0.05V |
Customized LiFeO4 battery pack 3.2V 6.4V 9.6V 12.8V 16V 32v 36v 48v 60v 72v 96v
|
|
|
No |
Working temperature |
Charging Spec |
Discharging Spec |
|
1 |
-20oC to 0oC |
Charge current limited to 0.1C(1.2A) or |
Suggest discharge current limited to 0.2C or |
| 2 | 0oC to 45oC | Charge current within spec | Discharge current within spec |
|
3 |
45oC to 70oC |
Charge current limited to 0.1C(1.2A) or below Cut off voltage 3.60Vor below |
Suggest discharge current limited to 0.2C or below |
|
|
