12.8V 200AH 2560Wh Lithium Ion Battery Pack IFR32700 4S34P With GPS Bluetooth Function
12.8V 200AH 2560Wh Lithium Ion Battery Pack IFR32700 4S34P With GPS And Bluetooth Function
Parameter
No. | Item | General Parameter | Remark |
| 1 | Rated Capacity | 200Ah | Standard discharge(0.2 C5)after standard charge(0.2 C5) |
| 2 | Minimal Rated | 198Ah | |
| 3 | Nominal Voltage | 12.8V | |
| 4 | Cycle Life | Higher than 60% of the Initial Capacity of the Cells 60%) | ◆Charge: CC@0.2C to 14.6V, then CV till current to 0.05C |
| 5 | Discharge cut-off voltage | 8.8V | 10.0V( recommended) |
| 6 | Charging cut-off voltage | 14.6V | 14.6V (recommended) |
| 7 | Cell and assembly method | IFR32700-6AH | 4S34P |
| 8 | Housing material | Black plastic ABS case |
12.8V 200AH 2560Wh Lithium Ion Battery Pack IFR32700 4S34P With GPS And Bluetooth Function

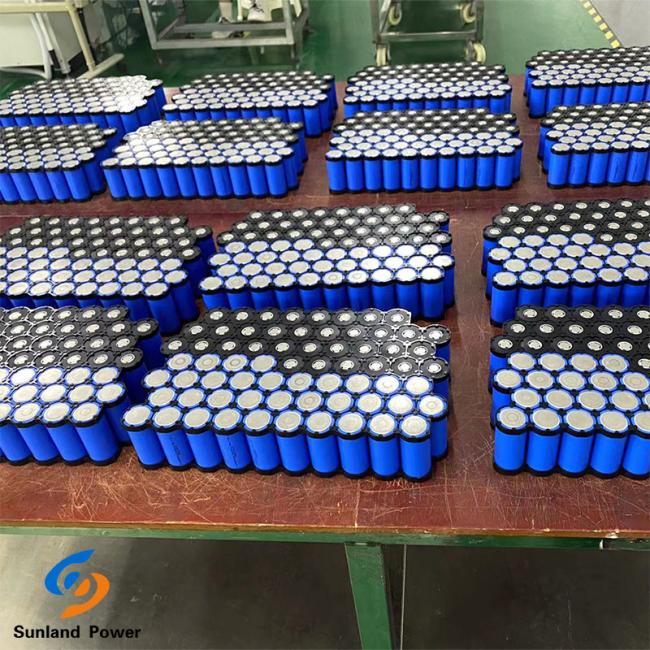

Picture:
12.8V 200AH 2560Wh Lithium Ion Battery Pack IFR32700 4S34P With GPS And Bluetooth Function
BMS Parameter:
Item name |
type | unit |
| Charging voltage | 14.4 | V |
| Overcharge protection voltage | 3.75±0.05V | V |
| Overcharge protection recovery voltage | 3.65±0.1V | V |
| Over discharge protection voltage | 2.2±0.1V | V |
| Over discharge protection recovery voltage | 2.6±0.1V | V |
| Discharge over current protection current | 200 | A |
| Overcharge detection delay time | 1 | s |
| Over discharge detection delay time | 1 | s |
| Short circuit protection delay time | ≤500 | μs |
| Recovery condition | Off load | |
| Self-discharge in working condition | ≤300 | μA |
| Conduction internal resistance | 55 | mΩ |
| Max continuoous charging current | 150 | A |
| Max continuoous discharging current | 150 | A |
| working temperature | -20℃ to 65℃ | ºC |
| Balance current | 30 to 50 | mA |
| Size | 232*125*20 | mm |
Handling of Cells
9.1 Consideration of strength of film package
1) Soft Aluminum foil
Easily damaged by sharp edge parts such as pins and needles, Ni-tabs, so don’t strike by those sharp parts.
2) Sealed edge may be damaged by heat above 100°C, bend or fold sealed edge.
9.2 Prohibition short circuit
Never make short circuit cell. It generates very high current which causes heating of the cells and may cause electrolyte leakage, gassing
or explosion, that are very dangerous.
The LIP tabs may be easily short-circuited by putting them on conductive surface.
Such outer short circuit may lead to heat generation and damage of the cell.
An appropriate circuitry with PCM shall be employed to protect accidental short circuit of the battery pack.
9.3.Mechanical shock
LIP cells have less mechanical endurance than metal-can-cased LIB.
Falling, hitting, bending, etc. may cause degradation of LIP characteristics.
9.4 Handling of tabs
The battery tabs are not so stubborn especially for aluminum tab.
Don’t bend tab.
Do not bend tabs unnecessarily.
