ICR18650 2250mAh 3.7V Lithium Ion Cylindrical Battery For Pasture Coverage Meter Measurement Tool
ICR18650 2250mAh 3.7V Lithium Ion Cylindrical Battery For Pasture Coverage Meter Measurement Tool
Feature:
1. Main application for pasture coverage meter measurement tool
2. PCB on the top,keep the diameter can not exceed 19.5mm
3. 10K NTC
ICR18650 2250mAh 3.7V Lithium Ion Cylindrical Battery For Pasture Coverage Meter Measurement Tool
Specification:
| No. | Items | Specifications |
Remark |
| 1 |
Capacity for assembled cell discharging by 0.2C |
≥2150mAh |
Standard discharging method |
| 2 |
Maximum charge current |
2A | 0~45℃ |
| 3 |
Maximum discharge current |
2A |
-20~60℃
|
| 4 |
Battery Voltage |
3.6-3.9V |
Delivery Voltage, Within 10 days from Factory |
| 5 |
Standard charge condition |
Charge with 0.2C constant current and 4.2V constant voltage, charge to 4.2V,continue charging till current decline to ≤0.01C |
Charge voltage: 4.2V±0.03V Charge current:0.2C |
| 6 |
Standard discharging method |
0.2C constant current discharge to 2.3V, | |
| 7 |
Internal Impedance |
Assemblage Impedance ≤180mΩ |
Measure the Red and black wire of the connector after assembling. |
| 8 |
Battery pack dimension |
D:19.5mm*H69.5mm | |
| 9 | Case | Blue PVC |
ICR18650 2250mAh 3.7V Lithium Ion Cylindrical Battery For Pasture Coverage Meter Measurement Tool

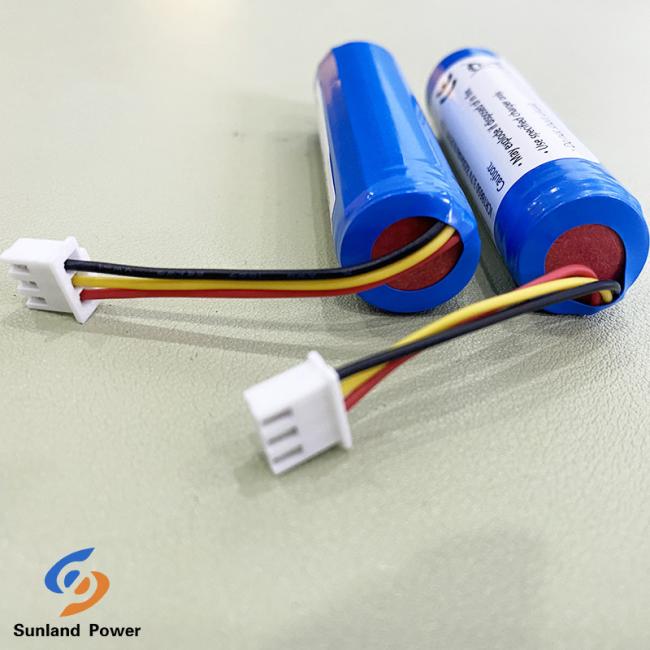

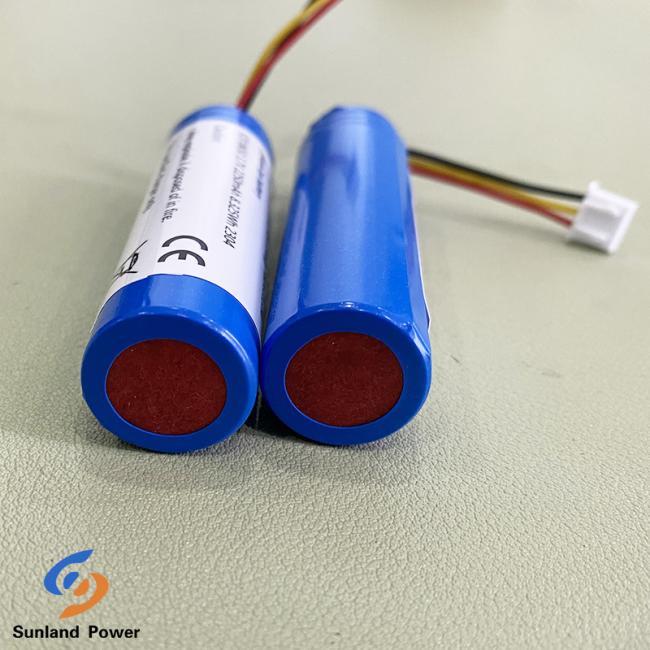

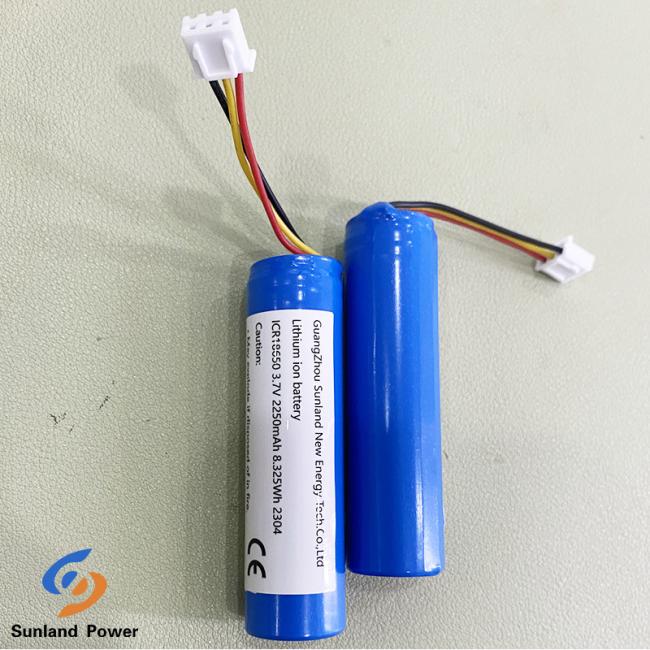

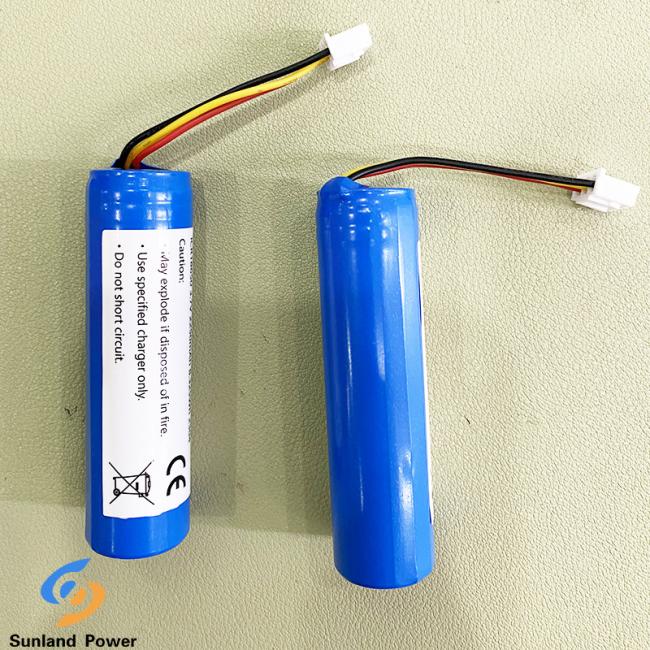

Picture:
| NO | Part name | Quantity | Unit | Remark |
| 1 | Cell | 1 | ea | ICR18650 |
| 2 | PCM | 1 | Ea | P-1YL1708LAS |
| 3 | Wire | 2 | Ea | UL1007/26AWG,red,yellow,black |
| 4 | PVC | 1 | Blue PVC | |
| 5 | Connector/ | 1 | pcs | XH-3P |
| 6 | Label | 1 | pcs |
ICR18650 2250mAh 3.7V Lithium Ion Cylindrical Battery For Pasture Coverage Meter Measurement Tool
Cycle Life
Charging and discharging battery as blew conditions:
0.5C standard charge to 4.2V end-off
0.5Cstandard discharge to 3.0V cut-off
Continuous charge and discharge for 500 cycles ,the capacity will be measure after the 500th cycle
