Polymer Lithium Ion Batteries LP602535 3.7V 500mAh For small Household Product
Polymer Lithium Ion Batteries LP602535 3.7V 500mAh For Small Household Product
-
Model Name:LP602535
-
Battery Type :polymer lithium-ion battery
-
Nominal Voltage 3.7V
-
Nominal Capacity 500MAH
-
Size :6mm(T)*25mm(w)*35mm(h)
Polymer Lithium Ion Batteries LP602535 3.7V 500mAh For Small Household Product
Cell Specification:
| No. |
Item |
Specification |
Note |
| 1 |
Rated Capacity |
500mAh |
0.2C discharge |
| 2 |
Nominal Capacity |
520mAh |
0.2C discharge |
| 3 |
Min. Capacity |
500mAh |
0.2C discharge |
| 4 |
Cell Weight |
≈ 9g | |
| 5 | Cell Initial Impedance | ≤ 100mΩ |
3.7V AC 1KHz measured |
| 6 |
Normal Voltage |
3.7 V | |
| 7 |
Initial Voltage |
≥3.8V | |
| 8 | Limited Charge Voltage | 4.2 V |
Voltage of CC charge to CV charge |
| 9 | Standard Charging Method | 0.2C CC current charge to 4.2V, then CV charge till current declines to 0.01C | |
| 10 |
Cut-off Voltage |
2.75 V |
Load Voltage when discharge ended |
| 11 | Standard Charging Current | 100mA (0.2C) |
CC charge to 4.2 V, then CV charge till current declines to less than 0.01C |
| 12 | Standard Charging Time | 6hours | |
| 13 | Rapid Charging Current | 500mA (1C) | |
| 14 | Rapid Charging Time | 2hours | |
| 15 | Standard Discharging Current | 100mA (0.2C) |
CC discharge to 2.75 V |
| 16 | Max. Discharging Current | 500mA (1C) | |
| 17 | Operating Temperature Range | Charging: 10～ 45℃ Discharging: -20 ～ 60℃ | |
| 18 | Operating humidity Range | ≤ 90%RH | |
Polymer Lithium Ion Batteries LP602535 3.7V 500mAh For Small Household Product

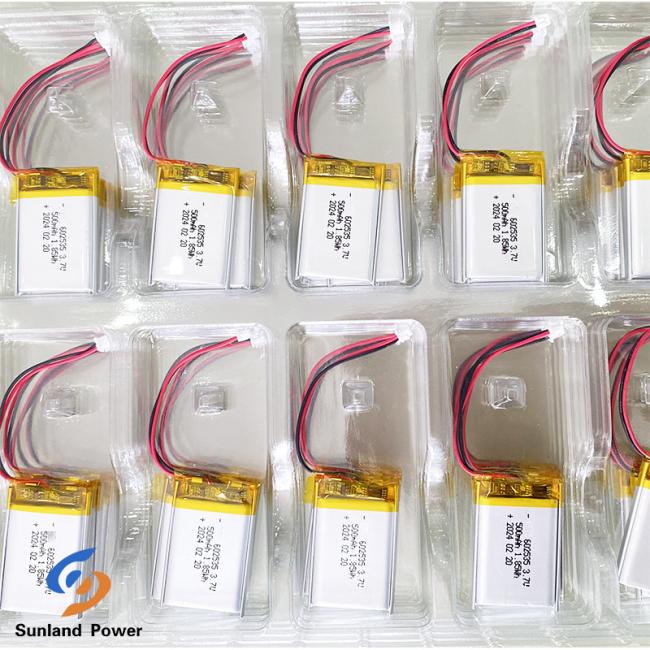

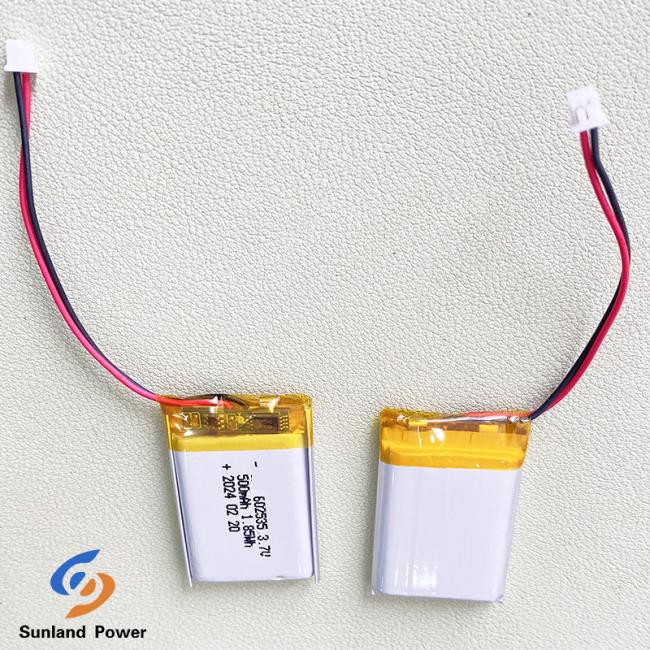

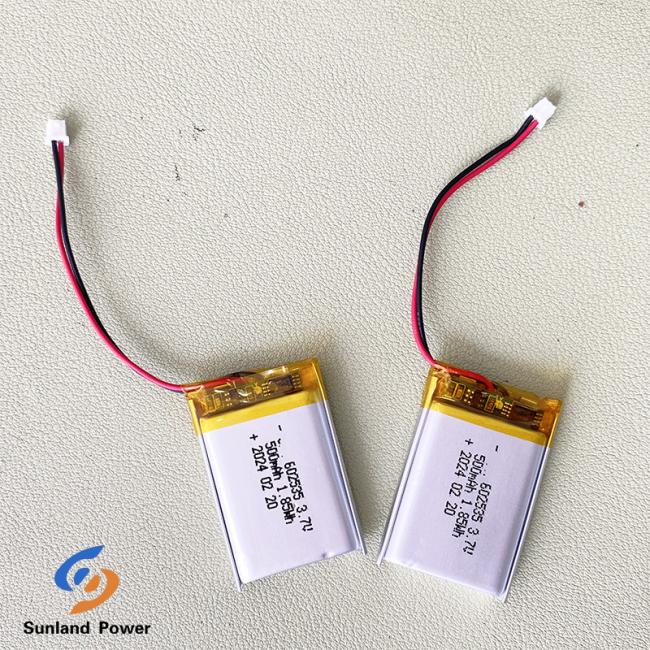

Picture:
Polymer Lithium Ion Batteries LP602535 3.7V 500mAh For Small Household Product
Cautions
◆ Do not use or leave the battery at very high temperature conditions(for example, strong direct sunlight or a vehicle in extremely hot conditions). Otherwise, it can overheat or fire or its performance will be degenerated and its service life will be decreased
◆ Do not use it in a location where is electrostatic and magentic greatly, otherwise, the safety devices may be damaged, causing hidden trouble of safety
◆ If the battery leaks, and the electrolyte get into the eyes. Do not wipe eyes, instead, rinse the eyes with clean water, and immediately seek medical attention. Otherwise, eyes injury can result.
◆ If the battery gives off an odor, generates heat, becomes discolored or deformed, or in any way appear abnormal during use, recharging or storage, immediately remove it from the device or battery charger and stop using it
◆ In case the battery terminals are dirt, clean the terminals with a dry cloth before use. Otherwise power failure or charge failure may occur due to the poor connection with the instrument
◆ Be aware discharged batteries may cause fire, tape the terminals to insulate them.
