3.2V AA IFR14500 Lithium Iron Phosphate Battery 600mAh With Protection Circuit Application For Smart Lock
3.2V AA IFR14500 Lithium Iron Phosphate Battery 600mAh With Protection Circuit Application For Smart Lock
Feature:
1. Long cycle time,more than 2500 times
2. Application for household product,IOT product.
3. The battery can work in high temperaure 75℃.
3.2V AA IFR14500 Lithium Iron Phosphate Battery 600mAh With Protection Circuit Application For Smart Lock
Specification:
|
Item(s) |
Specification |
Remark |
|
| Nominal voltage (V) | 3.2 | ||
| Nominal Capacity (mAh) | 600 |
Standard charging/discharge method |
|
| Minimum capacity (mAh) | 540 | ||
|
Charging |
Charging voltage Max.(V) |
3.65 | Charging modeCC&CV |
|
Standard Chargin current(mA) |
120 | 0.2C | |
| Continue charging current Max. (mA) | 600 | ||
|
Discharging |
End of discharging voltage Min.(V) |
2.5 |
|
|
Standard Chargin current(mA) |
120 | 0.2C | |
| Continue discharging current (mA) | 600 | ||
|
Operation temperature |
Standard Charging | 0℃~60℃ | |
| Standard Discharging | -20℃~60℃ | ||
| Weight (g) | 25g | ||
| Internal resistance (mΩ) | <160 | AC 1kHZ | |
3.2V AA IFR14500 Lithium Iron Phosphate Battery 600mAh With Protection Circuit Application For Smart Lock

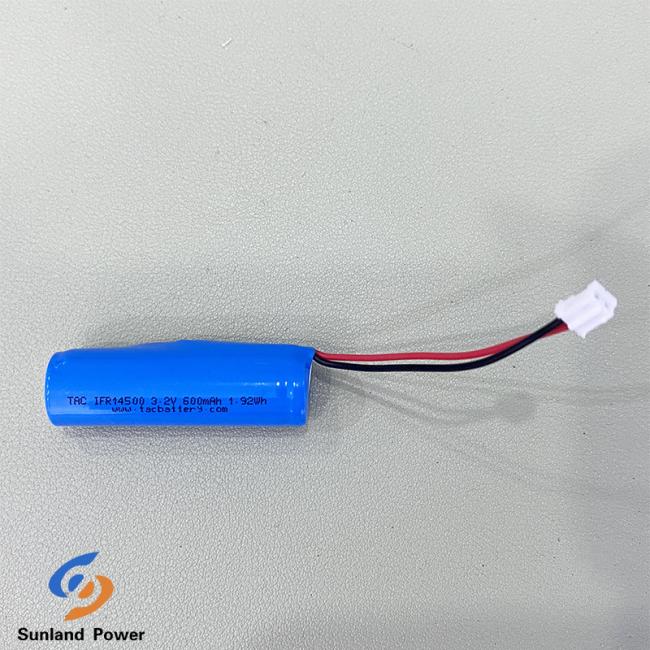

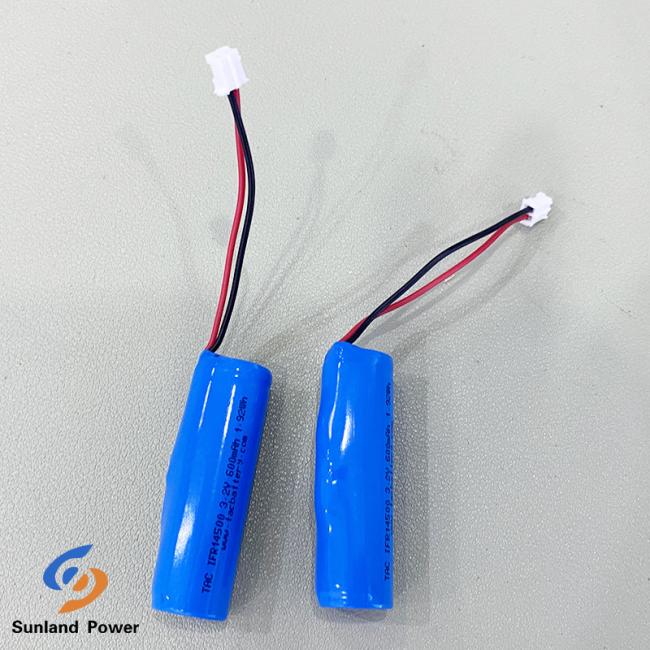

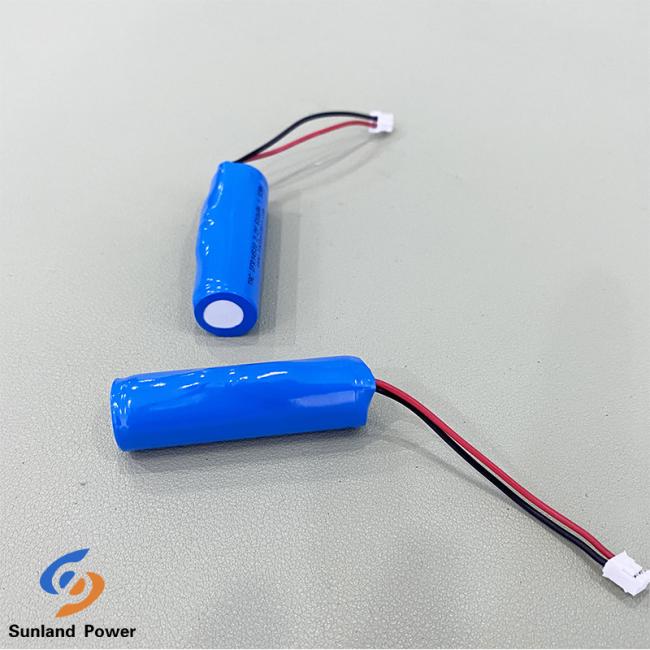

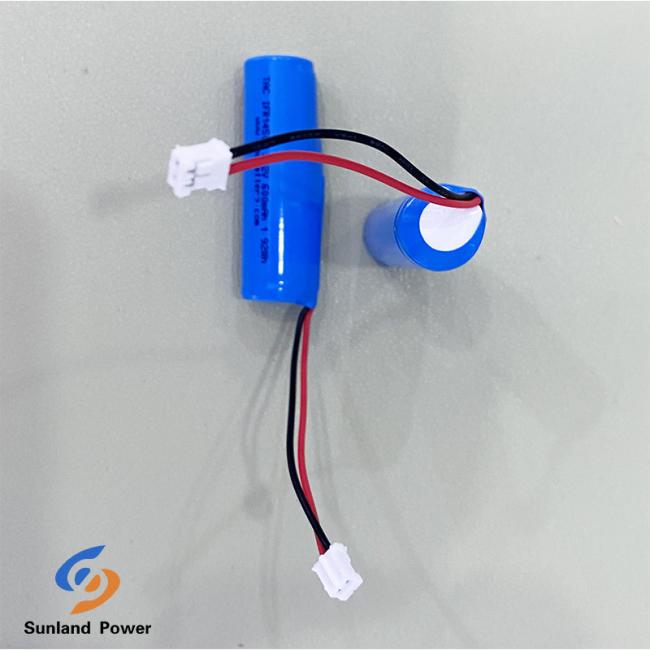

Picture:
3.2V AA IFR14500 Lithium Iron Phosphate Battery 600mAh With Protection Circuit Application For Smart Lock
Parameter of PCM
|
Item |
Content |
Criterion |
|
Over charge Protection |
Over charge detection voltage |
3.65±0.025V |
|
Release voltage for over-charging |
3.45±0.025V | |
| Over discharge protection |
Over discharge detection voltage |
2.5±0.05V |
| Release voltage for over-discharging | 3.0±0.05V | |
|
Over current protection |
Over current detection current |
2.5～5.5A |
|
Detection delay time |
9～15mS | |
|
Short protection |
Detection condition |
Exterior short circuit |
|
Detection delay time |
200～400uS | |
|
Release condition |
Cut short circuit | |
| Interior resistance |
Main loop electrify resistance |
RSS ≤60mΩ |
|
Static current |
Consumption current (self consumption) - single cell | ≤10μA |
|
Working current |
Maximum continuous charge current | 2A |
| Maximum sustained discharge current | 2A | |
|
Temperature |
Operating temperature range |
-40～ +85℃ |
|
Storage temperature range |
-40～ +125℃ |
